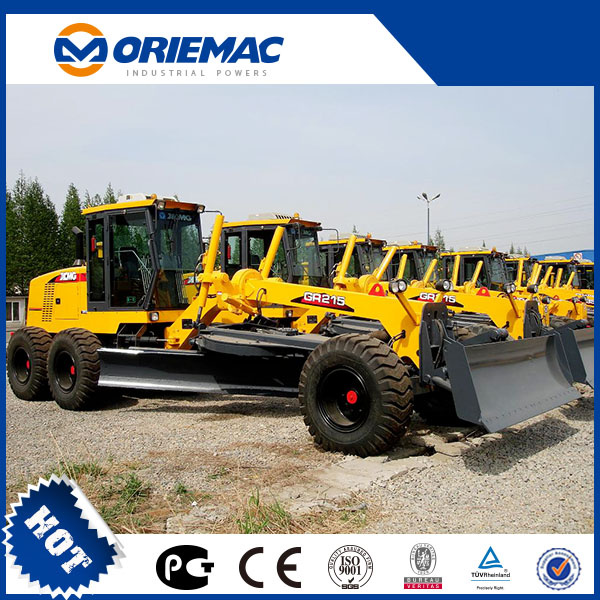

XCMG Brand Motor Grader with Cummins engine(GR215)
New appearance.
The adopted articulated frame assists the front wheel to steer, featuring small turning radius and flexibility.
Electro-hydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3 Reverse gears.
The adopted international matched hydraulic parts ensure the reliable operation.
The blade movement is hydraulic controlled fully.
The rear axle is three-way drive axle with NO-SPIN self -locking differential.
The reasonable distribution of the adjustable operation panel, seat, lever and instrument guarantees the comfortable and convenient operation.
The luxury and beautiful cab features wide visibility and good sealing.
The machine can be equipped with front bulldozing plate, rear scarifier, front harrow and auto-leveling system.
Trade terms:
1. Shipping method: 40HQ container
2. Best delivery: In 7 working days after deposit
3. Payment terms: T/T(30% as deposit, 70% paid before delivery) or L/C
4. Packing: Nude, spare parts and tools into standard export cases
5. Guarantee: One year service after delivery.
| Basic specification |
|---|
| Engine model | 6CTAA8.3 6CTA8.3 |
| Rated power/speed | 153kW/2200rpm 160kW/2200rpm |
| Dimension(LxWxH) | 8970×2625×3470mm |
| Operating weight(Standard) | 16500kg |
| Performance specification |
|---|
| Travelling speed ,forward | 5\8\11\19\23\38 km/h |
| Travelling speed ,reverse | 5\11\23 km/h |
| Tractive force(f=0.75) | 82KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
| Operating specification |
|---|
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade |
|---|
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°_70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 4270×610mm |
