Product Specifications
| Prod Model: |
LW300F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Load: |
3 Tons |
| Bucket Capacity: |
1.8m3 |
| Overall Dimension: |
6905×2470×3028mm |
| Operating Weight: |
10.0t |
| Dumping Height: |
2892mm |
| Dumping Distance: |
1104mm |
Product Description

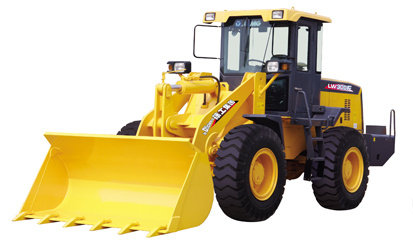

XCMG excellent Wheel Loaders / Lifting Loader with 3 tons lifting capacity (LW300F)
High efficiency
The adopted 125 work pump features large displacement, strong oil supply, and the total time of three devices is only 10.3s.
The turning radius is only 5420mm, short running distance, fast loading speed, saving the fuel and high efficiency.
Single pump distribution, load-sensing steering, large flow, enough power, simple and high efficiency.
High strength
Heavy load design. The front and rear frames adopt box type, featuring thickness and high intensity.
The key structural parts adopt finite-element analysis, ensuring the adaptation to various dangerous working conditions.
Long service life
The key articulated positions feature two-stage dust-proof, less abrasion and longer service life.
Wear resistant blade and bucket teethfeature longer service life.
The hydraulic pipe adopts 24° Cone and O ring, settling the issue of leakage.
Easily worn oil pipe is equipped with the protective bush, prolonging the service life.
High factor of full bucket
Long bucket bottom, sharp bucket type, easily cutting in, much material.
Lessen the opening angle, reduce the section, easily push in and lift.
We are especial construction machinery supplier, also have mini loaders, cranes, excavators etc construction machinery. They with excellent quality and competitve price and good work performances. If you have interest in our construction equipments, please you feel free to contact with us.
Looking forward to your inquiry!
|
Item |
Parameter |
Unit |
|
Rated load |
3.0 |
t |
|
Bucket capacity |
1.8 |
m 3 |
|
Dumping height |
2892 |
mm |
|
Dumping distance |
1104 |
mm |
|
Max. drawing force |
≥120 |
kN |
|
Max. traction |
≥90 |
kN |
|
Dimension (Length × Width × Height ) |
6905×2470×3028 |
mm |
|
Operating weight |
10.0 |
t |
|
Boom lifting time |
5.65 |
s |
|
Total time of three devices |
10.3 |
s |
|
Wheelbase |
2600 |
mm |
|
Min. turning radius (bucket outer) |
5925 |
mm |
|
Rated power |
92 |
km/h |
|
Travel speed I Gear (Forward/Backward) |
0~10/14 |
km/h |
|
II Gear (Forward/Backward) |
0~16/25 |
km/h |
|
III Gear (Forward) |
0~21 |
km/h |
|
IV Gear (Forward) |
0~35 |
km/h |
|
Boom Parameter |
|
Bucket capacity |
1.5/1.8 |
m 3 |
|
Rated load |
2.6/2.6 |
t |
|
Dimension (Length × Width × Height) |
7127×2470×3028;7226×2470×3028 |
mm |
|
Dumping height |
3253/3200 |
mm |
|
Dumping distance |
1051/1142 |
mm |
|
Operating weight |
10.2/10.2 |
t |
|
Attachment parameter -grasping grass |
|
Dumping height |
2948 |
mm |
|
Dumping distance |
2036 |
mm |
|
Clamp body width |
2200 |
mm |
|
Max. opening |
2800 |
mm |
|
Attachment parameter -clamp(III) |
|
Dumping height |
2551 |
mm |
|
Dumping distance |
837 |
mm |
|
Min. circle diameter |
590 |
mm |
|
Max. opening |
1700 |
mm |
|
Attachment parameter -side dump |
|
Bucket width |
2650 |
mm |
|
Dimension |
7.25×2650×3028 |
mm |
|
Dumping height(straight/side) dumping |
2725/3524 |
mm |
|
Dumping distance(straight/side) dumping |
1109/175 |
mm |
|
Lifting height(straight/side) dumping |
4980/5928 |
mm |
|
Attachment parameter -Sliding fork |
|
Fork folding angle |
17.2° |
|
|
Attachment length |
1575 |
mm |
|
Attachment width |
1980 |
mm |
|
Attachment height |
1200 |
mm |
|
Fork teeth length |
1050 |
mm |
