Product Specifications
| Prod Model: |
XT870 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
Available |
| Type: |
Small Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
CE |
| Condition: |
New |
Product Description
ABOUT US:
As a leading Chinese machinery and truck exporter, we have a professional experience of 8years in this field. Besides our trucks of high quality, our international sales team will also provide you excellent logistics service and after-sales service. We will always do our best to solve all the problems and put our customer's interests in the first place.
We can supply:
1) ALL kinds of trucks.
(Dump truck, mining dump truck, tractor truck, truck trailer ,towing truck , water tank truck, concrete mixer truck, oil tank truck, garbage truck, cargo truck, port terminal tractor, refrigerated truck, truck mounted crane, fire truck, suction sewage truck, bus , etc)
2) All kinds of construction machinery.
(Wheel loader, excavator, folklift, cranes, paver, road roller etc.)

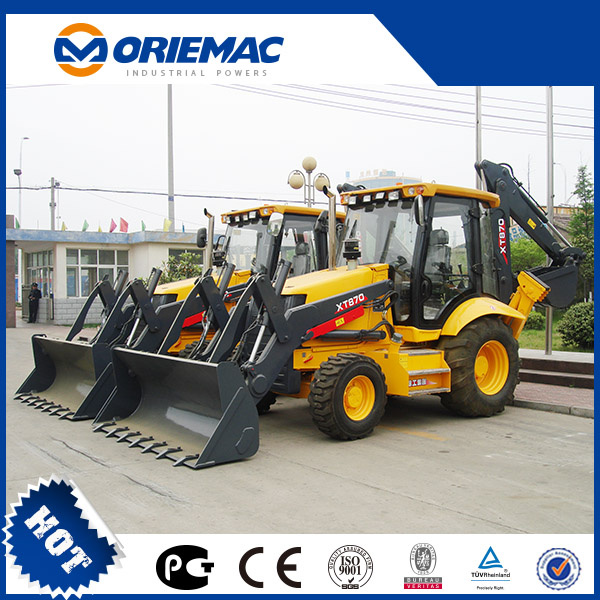

XCMG New Backhoe Loader Price (XT870)
T870 Backhoe Loader
XT870 is a kind of the multi-functional engineering machinery incorporating and loading into an organic whole. It adopts the advanced static hydraulic transmission and popular integral structure overseas with the following advantages: the complete machine is rationally distributed and compact; it is comfortable and convenient to handle, the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy, the forest farm, the military project, and so on. It also can be used in excavating, carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise. It is the ideal model of realizing machine with multi-functions.
It has the high power and good performance ability. The key parts such as the engine, the case, the bridge, the hydraulic system, etc. adopt the import components, which have improved the dependability of the complete machine. Components, which have improved he dependability of the complete machine.
The stability of performance and traveling has been improved by means of the highest speed, the small turning radius and the adaptation of integral frame. In addition, single pump supports oil and the hydraulic steering system make the systematic pressure reach 21Mpa, which has improved the performance ability of the complete machine. The highest speed reaches 40.2km/h. which has improved the production efficiency of the complete machine.
It is easy and simple to handle. You can change the shelf in moving. The loader is operated by single pole and the digger by a pair of poles. The complete machine puts excavating as the focal point of performance, so it has obviously improved the excavating stability in structural design.
The whole day-lighting closed drive's cabin is furnished with the system of the air conditioner, ROPS system. It is safe and comfortable, and the visual field is broad. It adopts the sound insulation, uses the whole day-lighting driver's cabin which puts the system of fluorine-free air conditioner, which improved the comfortableness of the operating environment, guarantee the clear visibility. It adopts the wholly-tumbling.
Main Technical Specifications and Technical Data
| Description | Specifications | Unit |
| Working weight | 7300 | kg |
| Overall dimension(L x W x H) | 7173 x 2366 x 3437 | mm |
| Max. travel speed | 40.2/48.6 | km/h |
| Wheel base | 2152 | mm |
| Turning radius | 4428 | mm |
| Tyres | 15.5-25/8.25-15 |
|
| Working oil pump | Oil pump model | CBGJ3063 |
| Max. travel speed | 2200 | r/min |
| Rated pressure | 20 | Mpa |
| Engine | Rated power | 74 | kw |
| Rated speed | 2200 | r/min |
| Model | Cummins B4.5 |
|
| Modality |
|
| Overall displacement | 4.5 | L |
| Fuel consumption | 225 | g/kw.h |
| Loading installment | Bucket capacity | 0.8-1.2 | cbm |
| Dumping clearance | 2825 | mm |
| Dumping reach | 727 | mm |
| Break-out force | 42 | kn |
| Excavation installment | Digger capacity | 0.25-0.35 | cbm |
| Max. digging depth | 4495 | mm |
| Max. digging radium | 5471 | mm |
