I.Features&Benifits
1.China famous brand YTO LR4A3Z-22 engine, high power and and torque, low fuel consumption and noise,high reliability.
2.Big fan with wide blade and large radiator.
3.Suitable for seaside, high temperture and humidity environment.
II.Specifications

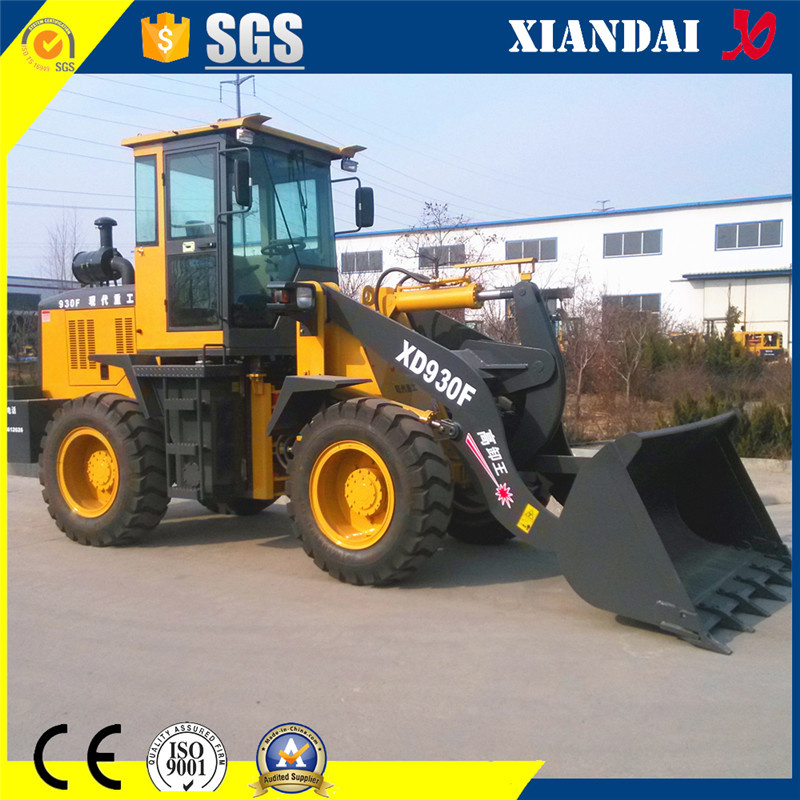

| Model | XD930F |
| Main specifications |
| Bucket capacity (m3 ) | 1.2 |
| Rated load (t) | 2.5 |
| Weight (t) | 7.0 |
| Lifting time of the arms (s) | ≤6 |
| The sum of three items(s) | ≤11 |
| Forward gear(km/h) | I 0-6.5 II 0-24 |
| Reverse gear | I 0-6.5 II 0-24 |
| Max. climbing gradient | 30° |
| Demensions |
| Overall dimension (mm) | 6350*2200*3080 |
| Wheel base (mm) | 2560 |
| Wheel tread(mm) | 1550 |
| Max. dumping height(mm) | 3050 |
| Dumping reach (mm) | 980 |
| Diesel engine |
| Engine model | YTO LR4A3Z-22 |
| Engine type | In-line,water-cooling,4-stroke,4 cylinder,direct-injection |
| Rated power(kw) | 70 |
| Rated speed (r/min) | 2200 |
| Total exhaust of cylinder(L) | 4.0 |
| Type of starting | Electric start |
| Transmission system |
| Torque converter |
|
| Model | YJ280 |
| Type | Single stage, three elements |
| Gearbox |
|
| Model | ZL20 |
| Type | Fix counter-shaft, power-shift |
| Axle and tire |
|
| Type of main reducer | Spiral bevel gear,single stage |
| Type of final reducer | Single stage planetary |
| Size of tire | 16/70-24 |
| Working device of hydraulic system |
| Model of working pump | CBCG2063 |
| Nminal displacement(ml/r) | 63 |
| Multi-way directional valve | ZL20 |
| Rated flow(L/min) | 20 |
| Steering system |
| Type | Load-sensing hydraulic steering |
| Displacement(ml/r) | 250 |
| Max input pressure(Mpa) | 11 |
| Brake system |
| Type of traveling break | Air over hydraulic break |
| Type of parking break | Manual disc break |
III. Optional Attachments:
| Joystick Control+ US$1,000 | Air-conditioning+US$900 |
| Quick Coupler+US$1,000 | Wood Grabber +US$1,500 |
| Fork+US$700 | Grass Grabber +US$1,500 |
| Rops&Fops Cabin+US$1,000 |
| Sweeper+US$2,500 | Snow Blade+US$2,500 |
IV. Payment terms & Delivery time &Guarantee time
1.Payment Terms:By TT. 30% deposit paid in advance, 70% balance paid before goods dispatching from the factory;
2.Delivery Time:within 20 days after receiving deposit;
3.Guarantee Time:one year or 1500 working hours which comes first after the date of B/L;
4.Shipping : 1 unit one 20GP & 2 units one 40HQ container;
Taian Modern Heavy Industries Technology Co., Ltd is a corporation that focuses on wheel loader and skid steer loader in terms of research and development, manufacture and sales since 1998. With years of development, the company has got two factory areas with 200000 square meters, more than 60 untis processing equipment and 150 professional workers. Our company has expanded industrial scale of producing many kinds of products and annual output hasreached about 3000 sets, among 300 units were sold to Brazil, Vietnam, Latvia, Turkey, Australia, Newzealand, Norway, Russia, Sudan etc. We adopt China famous brand YUCHAI, WEICHAI, XICHAI, YTO engine, also HYUNDAI, BRIGGS&STRATTON, COMMINS, DEUTZ worldwide famous engine to meet various requirements from various markets. According to customers actual requirement, the company can develop scores of types of products such as high-dump loader, ultra-low loader for tunnel, wood grabber, grass grabber, fork loader and off-road loader etc. Regarding science and technology as the leading factor, the company performs advanced quality-monitoring framework of production step by step, perfect meshwork of marketing, its production capicity has increased year by year. The company obtained ISO9001: 2008 certificate, wheel loader and skid steer loader got Europe CE certificate, CE noise certificate and Rops&Fops cabin certificate.
We will perform modern product of high quality by taking the technological faith, then conssummate service system and cooperate with spacious customer genuinely to try for mutual development.
