Product Specifications
| Prod Model: |
NSL-85W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery Type: |
Li-ion |
| Lamp Body Material: |
Aluminum Alloy |
| Warranty: |
1 Year |
| Weight: |
3 Kg |
| Battery: |
9300mAh/8700mAh/7800mAh/6600mAh |
| Bulb Type: |
HID |
| Power Supply: |
Rechargeable Battery |
| Lighting Period (',H): |
5-10 |
| Material: |
Aluminum |
| Light Range: |
>100m |
Product Description
Specification
1. Ballast input voltage: 9 ~ 16V
2. Working current: 5.4 A
3. Output power: First gear 85W, second gear 65W, third gear 45W
4. Battery types: 9300mAh/8700mAh/7800mAh/6600mAh battery for chioce
5. Charging and discharging times: ≥ 500 times

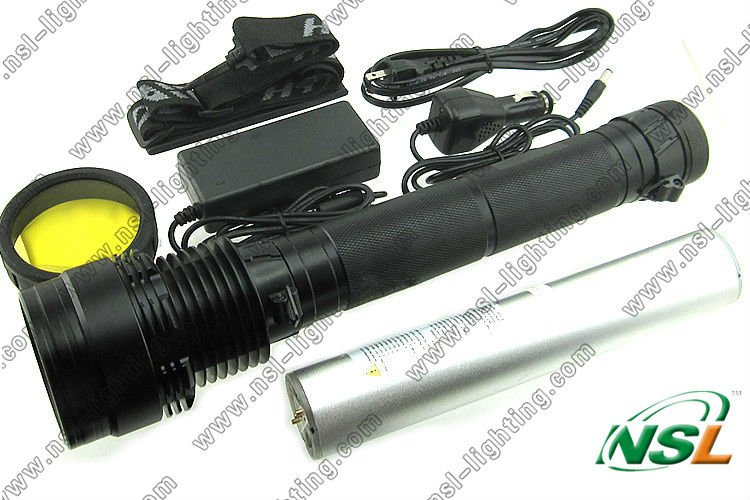

6. Accessories: 3A charger, filter, braces, car charger, aluminum alloy packaging, battery.
Feasture
Ballast is input voltage: : 9~16V
Working current: 5.4A
Output power: A 85W, Midrange 65W, Three gears 45 W
Battery types: 9300mAh/8700mAh/7800mAh/6600mAh
Cell cycle count: ≥ 500 times
Accessories: 3A charger, Yellow filter, braces, car charger, Aluminum box
A set of weight: 3.2 kg
Aluminum box dimensions: 42.2 * 20.3 * 11.6 cm
Outside the box sizes: 68 * 45.5cm *26mm
Packing 5PCS/CTN
Total weight: 17.5 KG
Perfect high temperature protection function, elongate lifetime
When flashlight hand shank temperature arrived 48 ° C, adjust to minimum power automatically, battery red LED flicker. When Flashlight hand shank temperature arrived 50 ° C, flashlight auto power-off. When battery red LED flash flicker for 20 seconds, then flashlight can work.
Perfect double low-voltage function
Build in dedicated Li-ion battery protective plate and SCM identifying low voltage circuit When battery voltage less than 9V, push switch button only red LED flicker, Ballast will auto stop working. Then three LED can light up. Can work safely when charge power full.
Low-voltage hint function, mention users charge in time
When battery capacity less than 20%, now hard light will changing-over between low gear and middle gear, means no enough power.
LOW current start, elongate battery liftetime
Effectively reduce the impact for battery and ballast when turn on, so the steady voltage enhance in turn on process. Good for elongate the lifetime for battery and ballast.
85W HID Xenon High Intensity Discharge Torch Flashlight |
Power output |
45W//65W/85W (3 modes) |
|
Brightness |
4200LM(45W)
6000LM(65W)
8500LM(85W) |
|
Color temperature |
8000K |
|
Optical efficiency |
80LM/W |
|
Bulb life span |
3500hrs |
|
Battery |
8700mAh |
|
Irradiation range |
over 1.6km |
|
Continual illuminate time |
150mins (45W)
120mins (65W)
100mins (85W) |
|
Length |
380mm |
|
Diameter of bulb holder |
84.5mm |
|
Diameter of holder |
46mm |
|
Material |
Aerospace-Grade Aluminum alloy (6061-T6) |
|
Surface treatment |
Flat Black Type III Hard Anodized Finish |
|
Reflector |
High efficiency, Aluminum alloy |
|
Glass lens |
High temp toughened quartz glass lens |
|
Battery life |
≥ 500 times |
|
Battery charger voltage |
12.6 v |
|
Charging time |
About 5 hours |
|
Backup light |
1W LED bulit-in battery pack |
|
Ballast input voltage |
9 ~ 16V |
|
Working current |
5.4 A |
|
Head running temperature |
80° C max |
|
Color |
Black& Silver |
|
Weight (including battery) |
1350g(8700mAh battery) |
|
Weight (including battery and with box) |
3kg |
