Product Specifications
| Prod Model: |
XF-PS6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Xf-PS6090 |
| Max. Printing Acreage(mm): |
600×900 |
| Type: |
Vertical Screen Printing Machine |
| Style: |
Screen-process Printing Press |
| Structure: |
Flat-bed cylinder press |
| Color & Page: |
Single-Colour Printing Press |
| Print Interface: |
USB2.0 |
| System Supported: |
Windowsxp32 |
Product Description

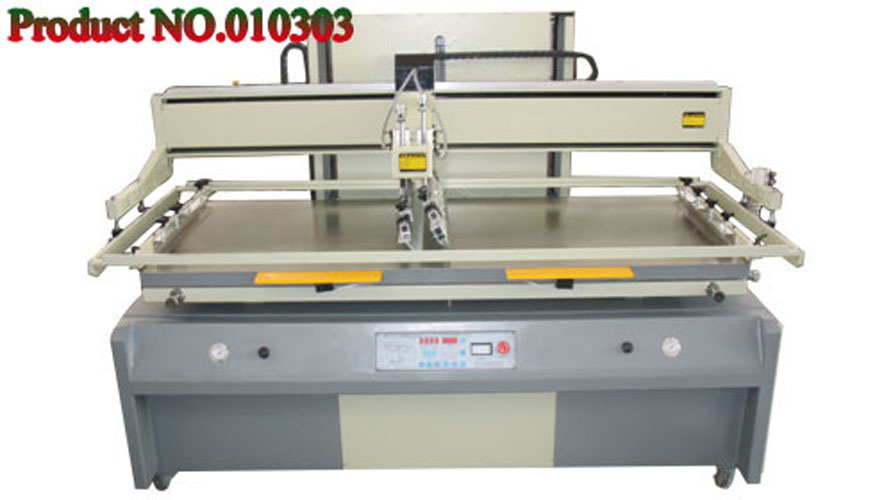

Vertical plane screen printing machine
Model | XF-PS6090 | XF-PS0120 |
| Max. printing acreage(mm) | 600×900 | 800×1200 |
| Plat size(mm) | 700×1100 | 900×1400 |
| Max. Dimension of the frame | 900×1300 | 1000×1600 |
| Thickness(mm) | ≤50 | ≤50 |
| Pressure(Kgf/cm) | 4.0~8.0 | 4.0~8.0 |
| Power(V/KW) | 380/2.3 | 380/2.3 |
| Dimension L×B×H(mm) | 1460×1100×1850 | 1860×1320×1850 |
| Printing speed(mp/min) | 0~20 | 0~20 |
Characteristics:
1. Screen can be lift in vertical structure; the printing pressure can be adjusted to
ensure the printing quality.
2.Pringing frame-Well-designed cast aluminum alloy printing head, high precision
linear axial guidance equipments
3.The bedplate of printing workbench is made of aluminum alloy plate, which is
flat and smooth. Its inner structure is combined with beehive structures, which
absorb ink flow evenly. Horizontal and vertical fine setting devices can
ensprecision of multicolor overprint.
4. The printing device is drove by non-rod cylinders and equipped with air pressure
adjusting device, which can adjust the printing speed.
5. With completed functions, the machine can undertake the operation of keeping
pressure, lifting screen, absorbing air and other motions reliably and safely.
Application Scope:
The machine can be used for screen-printing of many plane bodies, such as paper,
plastic, glass, ceramics, metal, textile, and leather, etc. All kinds of PVC,PET and PC
soft films and hard films.
