Product Specifications
| Prod Model: |
NZSG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| After Sale Service: |
Whole Using Life |
| Installation: |
Technical Guidance |
| Price: |
Negotiable |
| Type: |
Efficient Thickener |
| Motor Type: |
Stepper Motor |
| Condition: |
New |
| Motor Power: |
1.1kw~7.5kw |
| Diameter: |
2.5m~20m |
Product Description
Our thickener tank has been sold to all over the world.You can give us your requirement,then we will give you a perfect project.
Thickener—Product improvement
This thickener is patent product of Xinhai, patent No. 201010521662.5. After improvement, the capacity becomes larger, overflow with low turbidity and discharge with high concentration
Thickener—Advantages
Efficient improved thickener
Out overflow weir instead of inner overflow weir increases the sedimentation area and not easy to block
Oblique feeding instead of horizontal feeding solves the blockage problem
A tranquil flow device reduces material flow rate, so that the overflow becomes more uniform with lower turbidity.
Thickener—Work Principle
Efficient improved thickener
The vertical axis rotates driven by motor, and pulp by feeding device flows into the tank center feed mixing barrel.Solid material in the bottom of the tank by the scraper moves out of center; clarified overflow through the tranquil flow device flows out from the ring external overflow weir.

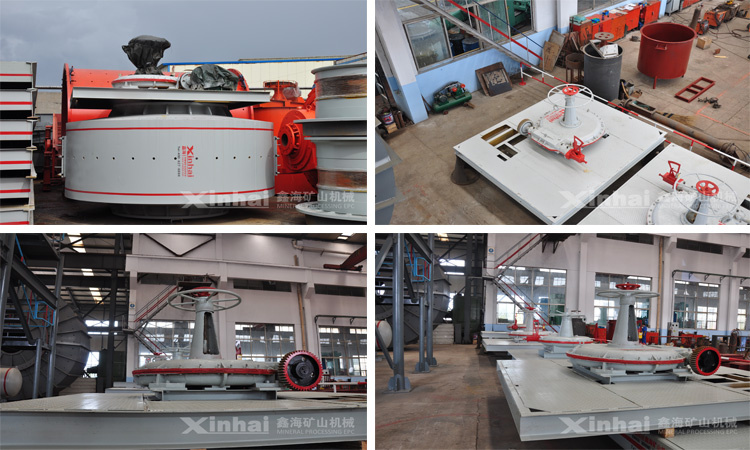

Thickener—Product Structure
Efficient improved thickener
Tank
Deaerating tank
Feed mixing barrel
Motor driven device
Rake lifting device
Tranquil flow device
Overflow weir
Rake frame
Feeding devide
Vertical axis

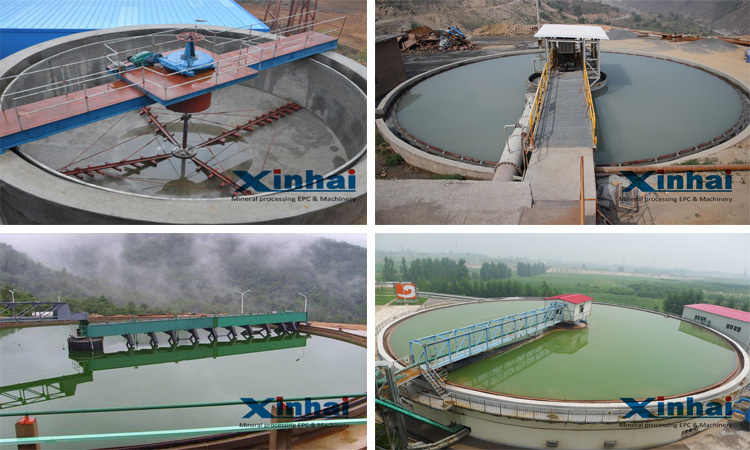

Thickener—Product Application
Efficient improved thickener
It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials, environmental protection department etc.
| Model | Tank diameter
(mm) | Tank depth
(mm) | Sedimentation area
(m 2 ) | Capacity
(t/d) | Motor model | Motor power
(kw) | Steel tank weight
(kg) | Weight
(kg) |
| NZSG-2.5 | 2500 | 1850 | 4.9 | 5-10.8 | Y90L-6 | 1.1 | 1000 | 2225 |
| NZSG-3A | 3000 | 1800 | 7 | 5-23.3 | Y100L-6 | 1.5 | 1664 | 3168 |
| NZSG-3 | 3600 | 1800 | 10.2 | 5-28.5 | Y100L-6 | 1.5 | 2097 | 3640 |
| NZSG-5 | 5000 | 2956 | 16 | 16-90 | Y90L-4 | 1.5 | 5160 | 8031 |
| NZSG-6 | 6000 | 2956 | 28.3 | 98 | Y90L-4 | 1.5 | 5769 | 9200 |
| NZSG-7 | 7000 | 3000 | 38.5 | 140 | Y112M-6 | 2.2 | 8548 | 13361 |
| NZSG-8 | 8000 | 3318 | 50.2 | 185 | Y132S-6 | 3 | 12966 | 19289 |
| NZSG-9 | 9000 | 3376 | 63 | 210 | Y132S-6 | 3 | 15304 | 21960 |
| NZSG-12 | 12000 | 3600 | 113 | 370 | Y132S-6 | 3 | 25389 | 34823 |
| NZSG-15 | 15000 | 4000 | 176 | 580 | Y132(M2)-6 | 5.5 | 35800 | 58800 |
| NZSG-18 | 18000 | 4400 | 255 | 960 | YCT200-413 | 7.5 | 49694 | 65992 |
| NZSG-20 | 20000 | 4400 | 315 | 1400 | Y160(M2)-8 | 7.5 | 59365 | 81238 |
Case
Kush Clients Consulting Mineral Processing
Clients of Kush project paid a special visit to Xinhai on Jan 18, 2014, for detailed communication with the Xinhai technicians. They made an estimate of the size , investment as well as earnings of the mill plant. During this meeting, based on rich experience of mineral processing and mill plant, Xinhai technicians wined the clients trusts for answering clients questions.
Kush Gold Mineral Processing Test
After the contract was signed, Clients posted to Xinhai two packages of samples, totally weight 400kg. Xinhai Mineral Processing Institute provided comprehensive mineral processing test after precious test.
The mineral processing test made an analysis to the gold content which is 4.31g/t, thus Xinhai technicians decided to recovery gold directly through the solution of CIP cyaniding, which including grinding the raw ore to 88.0% -200mush,and using lime as alkali, then adding sodium cyanide, agitating then leaching.The pulp density can reach 40%, 4kg/t of slime, 2kg/t sodium cyanide, the leaching rate of gold can get 91.45% which is perfectly good. While it was worth mentioning that the Institute noticed that if adding gravity separation, the recovery rate will not notably improved while increased the mineral processing cost. For the benefits of the customers, Xinhai technicians suggested cyaniding directly, while the customers firmly believed that with the deepen exploiting, the gold grade can increase to 8g/t, and considering finding large particles around the mine, technicians decided to adopt the solution of gravity separation + cyaniding the tailings after gravity separation.
Mine Design
Mine design, an vital part of Xinhai mineral processing EPC, was in charge of Xinhai Mining Design Institute with Class A Certification. For better suiting the actual situation of the project, technicians of the Mining Design Institute made field survey to the surroundings such as terrains, waters and power supply, then designed the construction drawing elaborately and gave 3D simulation based on the processing flowchart and the equipment selection mine processing test provided.
Installation & Commissioning
After the Equipment manufacturing and purchasing, the perfect packaging and delivery system can guarantee the security service.
Xinhai Installation & Commissioning Operation Center Project No.1 was in charge of as well as full participation the field installation & commissioning. On the one hand, they supervised the construction site to inspect any problems, on the other hand , they optimized the production and management process to improve interests for customers.
Our Company
Xinhai mining was established in 1993.And was the pioneer of China beneficiation industry.Our company could provide mining machine more than 600,and have the most equipment in China.At present,Xinhai business includes Mineral Processing EPC,Wear-Resistant Rubber,LFC Machinery,and Mining Investment.
Our customers come from all over the world, such as Xinhai EPC project ,Africa Mail 800t/d gold; Xinhai Transformation Project, Indonesia PT.NEM Gold Mine as so on. We have a lot of successful cases in America, Russia and Africa .Also we have Zimbabwe Office,Sudan Office and Indonesia Office. We will give you the best service.
