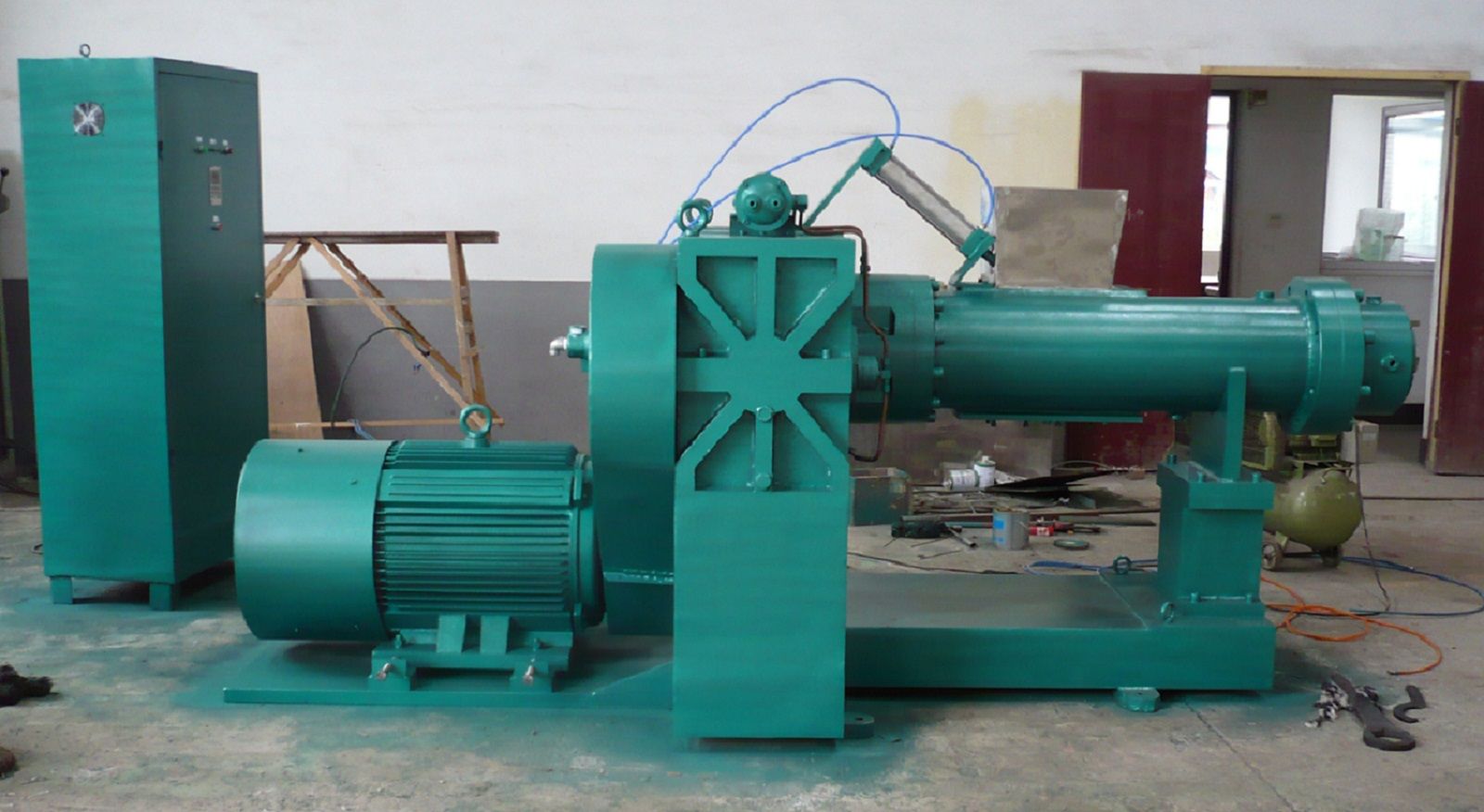

Product Specifications
| Prod Model: |
XJT200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V |
| Weight: |
<50 tons |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Power: |
10~100KW |
| Using Life: |
≥15 Years |
| Warranty: |
1 Year |
Product Description
Application:
It is coupled with internal mixer for extruding and sheeting rubber material which has been plasticated, pre-mixed and final-mixed.
Feature:
1) The working surface of screw and barrel are fully plated with head chrome.
2) The sheeting rolls are made of chilled casting iron. The rolls are drilled for circulated cooling water and each end of rolls are supported by roller bearings.
3) The sheeting rolls nip is adjusted automatically, the signal shown on the operating digital screen.
4) The driving system adopts DC motors and provides various type of driving models to meet customers' requirement.
5) Through two kinds of microwave indicating signals, the speed of extruding screw and sheeting rolls can be automatically adjusted.
6) The machine is fully equipped with excellent safety and alarming device, also matching the CE standard by customization.
7) The electrical control system is PLC controlled, and also customized by requirement.
8) Touching surface with rubber compound is water circulation cooled to decrease the compound temperature.
9) Stock guide is 3D CAD designed.
10) Compact structure achieves in advantages like easy self-cleaning, assembly and operating.
| Model | XJT65 | XJT85 | XJT120 | XJT150 | XJT200 |
| Screw thread type | Double convenge | main/auxiliary thread | Convergence of main and auxiliary thread |
| Screw dia. (mm) | 65 | 85 | 120 | 150 | 200 |
| Length to dia. Ratio (L/D) | 1: 12 |
| Compressed ratio | 1.6 |
|
|
|
|
| Screw rotation(r/min) | 20-60 | 20-80 | 19-58 | 16-48 | 15.5-46.5 |
| motor (kW) | 18.5 | 22 | 55 | 90 | 250 |
| capacity (kg/h) | 30 | 220 | 600 | 1200 | 530-1580 |
| Cooling water pressure (Mpa) | 0.2-0.3 | 0.2 | 0.3 | 0.2-0.3 | 0.2-0.3 |
| Steam pressure (Mpa) | 0.4 | 0.4 | 0.6 | 0.4-0.6 | 0.4-0.6 |
| Compressed air (Mpa) |
|
|
| 0.6 | 0.6 |
| Dimension (L*W*H) | 1475*1310*1346 | 3305*855*1615 | 3750*1200*1350 | 5130*1150*1509 | 7183*1974*2285 |
| weight (kg) | 1500 | 3000 | 15000 | 9000 | 12000 |
Changzhou Zhudi Rbber Machinery Co Ltd is located in Minghuang Industrial Park, Wujin District, Changzhou City, Jiangsu Province, a picturesque developed zone with facilitated transport. Covering totally 20, 000 square meters and 5000 square meters for structure area. The company specializes in Rubber machine and Rubber Production Line.
With more than twenty years of history, it has evolved into a comprehensive enterprise with integrated operations in scientific research, manufacture, sale and services.
We have earned many reliance and support from customers worldwide for the advanced design, leading technology and satisfying service. Besides domestic market, our products have been exported to Russia, India, Brazil, Thailand and so on.
Our Rubber machinery includes Natural rubber extruder, Silicon rubber extruder, Rubber filter, Calender, Mixer, Miller and Vulcanizing equipments including Trough, Drying tunnel, Baking oven, Hauling, Steel belt driving. Also, we can customize equipment/production line according to customer's special requirement as well as "turn-key" project.
