Xjy Rigid-Flex Board/Multilayer Rigid Printed Circuit Board
Price: |
US $ 0.1-0.5/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
Prod Model: |
XJY-PCB182 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Copper Thickness: |
1oz |
Surface Finishing: |
OSP |
Solder Mask Type: |
Green |
Silkscreen: |
White |
Board Thickness: |
2.0mm |
Min. Hole Size: |
0.2mm |
Min. Line Width: |
0.15mm |
Min. Line Spacing: |
0.15mm |
Certificates: |
UL, RoHS, SGS, ISO9001 |
Shipping: |
DHL, UPS, TNT, FedEx, etc |
Type: |
Rigid Circuit Board |
Dielectric: |
FR-4 |
Material: |
Fiberglass Epoxy |
Flame Retardant Properties: |
V0 |
Base Material: |
Fr4 |
Product Description
Welcome to XJY------------ Shenzhen Xinjiaye Electronics Technology Co., Ltd is a professional pcb manufacturer has over 10 years experience. We are able to offer 1 to 24 Layer PCB, ranging from pcb produce, components purchase, pcb assembly, pcb copy service.Our products are widely used in communication apparatus, automobile electronics, auto parts, computers, medical devices, light systems, outdoor systems, network devices and consumer electronics class fields. Details1. Board thickness: 2.0mm
2. Material: FR4
3. Surface Finishing: OSP
4. Soldermask: Green
5. Min. Hole Size: 0.2mm
6. Certificates: UL, RoHS, SGS, ISO9001
7. Shipping: DHL, UPS, TNT, FedEx, etcOur PCB board manufacture and PCB assembly service:1. PCB board file with parts list provided by customers
2. PCB board made, circuit board parts purchased by us
3. High Quality,competitive Price & Best Service
4.100% E-tested PCBTechnical Capacity: Items | Single/Double-sided Board/Multilayer Board/FPC(1-24Layer) |
Base Materials | FR-4(High TG 150°-170°),FR1,Aluminum,CEM-3,BT,94vo |
Finish copper thickness | Outer 6 OZ,Inner 4 OZ |
Surface finish | ENIG, ImAg, ImSn, OSP, HASL,Plating gold |
Finished Board Size | Max Double-sided Board | 640mm χ 1100mm |
Max Multilayer Board | 640mm χ 1100mm |
Finished Board Hole Size (PTH Hole) | Min Finished Board Hole Size | 0.15mm |
Conductor Width and Spacing | Min Conductor Width | 0.01mm |
Min Conductor Spacing | 0.01mm |
Thickness of Plating and Coating Layer | PTH Wall Copper Thickness | >0.02mm |
Tin Solder Thickness ( Hot Air Leveling ) | >0.02mm |
Nickl/Gold Thickness | For customer special need |
Nickl Plating Layer | >2um |
Gold Plating Layer | >0.3um |
Bare Board Test | Single Side Test | Max Test Point | 20480 |
Max Board Test Size | 400mm χ 300mm |
Double Side Test | Max Test Point | 40960(General Use) |
4096(Special Use) |
Max Board Test Size | 406mm χ 325mm |
320mm χ 400mm |
Min Test pitch of SMT | 0.5mm |
Test Voltage | 10-250V |
Mechanical Process | Chamfer | 20°, 30°, 45°, 60° |
Angle Tolerance | ± 5° |
Deepness Tolerance | ± 0.20mm |
V-Cut Angle | 20°, 30°, 45° |
Board Thickness | 0.1-3.2mm |
Residues Thickness | ± 0.025mm |
Cell Paraposition Precision | ± 0.025mm |
Tolerance of Out-shape Process | ± 0.1mm |
Board Warp | Max Value | 0.7% |
Optical Plotting | Max Plotting Area | 66mm χ 558.8mm |
Precision | ± 0.01mm |
Repetitive Precision | ± 0.005mm |
Testing Procedures For PCB Board:---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Impedance control
* Solder-ability detection
* Digital metallograghic microscope
* AOI (Automated Optical Inspection)Quotation Requirement :--- Following specifications are needed for quotation:
a) Base material
b) Board thickness
c) Copper thickness
d) Surface treatment
e) color of solder mask and silkscreen

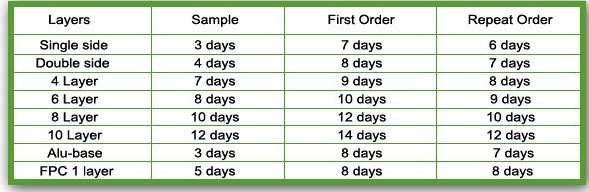

f) QuantityDelivery Time for PCB board:1) PCB production time: sample: 3-4 days / mass production: within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: samples: whthin 2 days / mass production: within 5 daysShipping Method and Payment terms:1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.By Paypal,T/T,West Union,etc.Features* Low water absorption rate
* Hard to be deformed
* High mechanical strength
* Good electric performance wether under the moist or dry environment, Flame retardant grade could reach 94-V0
* High temperature resistant,high dielectric performance and mechanical processing performance. Good Quality &Lower Price& Best Service
If you have interest in our product, please don't hesitate to contact us !
Founded in April 2005, ShenZhen XinJiaYe Electronics Technology Co., Ltd. is specialized in the production of high density PCB and administrated by several PCB professionals. At the beginning of 2008, in order to provide customers with high quality PCB at better price, her owner rebuilt a new factory by investing additional 15 million in JIANG XI province XinFeng city, where there are enough environmental facilities and cheaper hydropower labor, to control the mass production cost at a competitive advantage.
XJYPCB is a PCB manufacturer specializing in quick turn prototype and batch quantity also offers one-stop service from layout to assembly. Producing Rigid PCB from 1layer to 10layer, FPCB from 1layer to 4layer, we are well-organized to grant our customers with best quality PCB' S at much lower cost. Our quick turn prototype production in Shenzhen allows us to provide short lead time and world class customer service at the same time, batch quantity production in Jiangxi helps us minimize labor cost and maintain high quality.
8, 000, 000 SMD points every day including BGA assembly and 6 DIP production lines (Lead free dual wave soldering machine) can satisfy the customer what will he want.
Our factories have ISO-9001: 2008 and UL Certification. With more than 500 employees, she is growing and her latest manufacturing outputs achieve more than 10, 000 square meters of double-sided PCB boards and 8, 000 square meters of multilayer PCB boards per month.
We are serving our customers all over the world and gain their testimonials.
Our mission is to provide dependable full service PCB and best price for global customers. XJY is continuously improving our capabilities and processes to reduce operational costs and improve PCB quality.
Hi-Quality: Matching the requirements of advanced electronic products
Hi-Precision: Building up the conception of fabricating elaborate artwork, supplying hi-quality products
Special type: Insisting on the orientation of special feature, meeting the new and special requirements
Express lead time: Rapid response, delivery in short time.
XJYPCB welcomes you to join us and experience our dedicated service to the printed circuit board industry. Whether you have a project to quote or are working on a new project and just want to talk with our knowledge staff, please feel free to call. We look forward to working with you throughout the entire life of your business.
