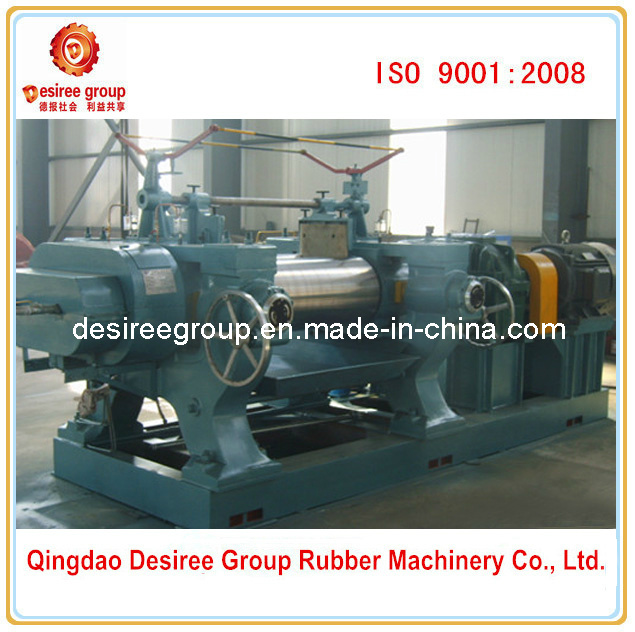

Xk-400 Two Roll Open Mixing Mill

Name: Xk-400 Two Roll Open Mixing Mill
Brand: china-manufacturer-directory.com
SKU: 691499392
Availability: InStock
Rating: 4.9 (95 reviews)

Supplier:	Qingdao Desiree Group Rubber Machinery Co., Ltd.
Price:	US $ 16700-22700/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	XK-400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of General Rubber Machinery:	Mixing Roll
Type Of Tire Machinery:	Rubber Regeneration Machinery
Certification:	ISO, CE
Name:	Open Mixing Mill
Condition:	New
Roll Working Diameter:	400mm (16")
Roll Working Length:	1000mm
Linear Velocity Of The Front Roll:	18.65m/Min
Friction Ratio Of Rolls:	1:1.27
Type:	General Rubber Machinery
Warranty:	One Year

Product Description

Open Mixing Mill / Rubber Mixing Machine /Rubber Fining Mixer

Function:
Mainly for rubber warming, plasticating, mixing, and sheeting.

Features:
1. Rollers: Made of alloy chilled cast iron, hollow, with smooth surface after precision grinding processing.

2. Reducer: Noise is low, and using life is long.

3. Bush: Three types, nylon, copper, and roller bearing

4. Nip adjustment: Two types, manual and electric

5. Lubrication of roll: Two types, oil lubrication and grease lubrication

6. Emergency stop device: With emergency button and lever, to ensure the safety of operator and equipment.

Quality Control:
BEFORE PACKAGE, LOAD TEST WILL BE CARRIED OUT, TO ENSURE THE CUSTOMER CAN USE THE MACHINE IMMEDIATELY AFTER INSTALLATION.

Our Services:
1. One year warranty for free.
2. Lifetime technical support.
3. Engineers available to service machinery overseas.
4. Any demand, we will give feedback within 24hours.

Welcome to make a field inspection of our factory.
We are always pleased to serve you at any time.

Open Mixing Mill Model No.	XK-400	XK-450	XK-560	XK-550B	XK-660
Roll working diameter(mm)	400	450	560/510	550	660
Roll working length(mm)	1000	1200	1530	1500	2130
Linear velocity of the front roll(m/min)	18.65	24.26	27.72	27.94	28.6
Friction ratio of rolls	1:1.27	1:1.27	1:1.2	1:1.22	1:1.24
Max. nip of rolls(mm)	10	15	15	15	15
Feeding capacity per batch(kg)	18~35	25~50	35~50	50~60	165
Motor power(kW)	37	55	90	110	245
Overall size: L * W * H (mm)	435018501785	520023801840	584522841978	587024752045	746536622080
