Features Specifications: XK3190-A9 weighing indicator
Introduction

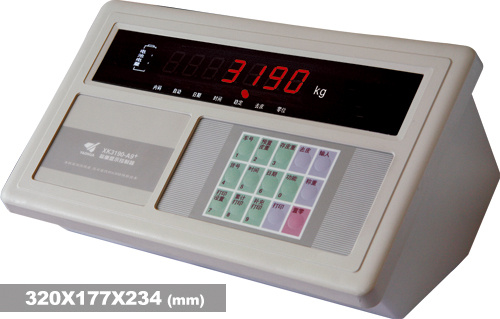

Weighing indicator XK3190-A9 adopts high precision double integral A/D conversion technology, widely applied in electronic floor scale, electronic truck scale, static railroad scale and so on alike static weighing system equipped with 1~8 load cell.
Features
- A/D conversion with readability 1/30000
- Use inner code to replace weight observing and analysis tolerance
- Zero range setup (auto/manual)
- Fast filled weighing bill print setup
- Save 255 vehicle ID/net weight, 100 cargo ID, and 205 weighing records
- Weighing data save protection in case of power off
- Battery indication and low battery protection
Parameters
Model A9 A9P
Input signal range 1mV~24mV
Input sensitivity 1V/e
Load cell Excitation DC 8V
Max. Load cell connection 8 at 350 ohm
Display 7 bits LED, 7 status indications
Standard interface RS232C serial communication,
Scoreboard at 20mA current loop
Parallel printer
Built-in Printer None Mk150II
Transmission distance RS232C50 meters
Power supply AC 187-242V 49-51Hz DC12V 7AH
Product weight 6.2KG 6.8KG
Dimension (mm) 460(L)x360(W)x265(H)
Certificate E Aluminum housing with OIML R76
