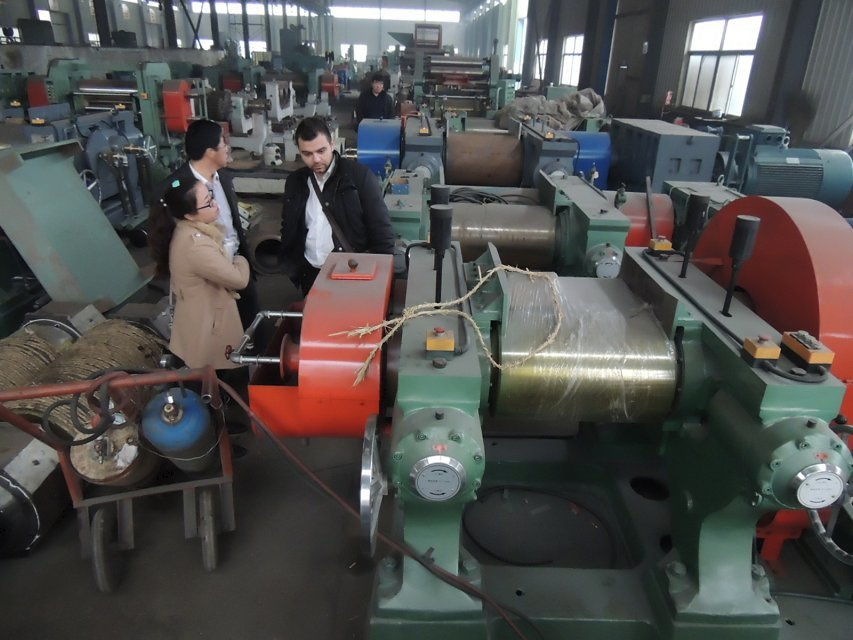

XKP-450 rubber cracker mill for waste tyre recycling production line high quality with ISO9001
Usage:
the machine is mainly used to grinding waste rubber , tire , tube , flap and break the raw rubber materials.
Structures:
It consists of motor, gear-down reducer, driving gears, speed-ratio gears, front and back rolls, bearings, frame, cover, bed plate, adjusting pin device, emergency stop device, roll temperature adjusting device, lubricating device and material plate, etc.
features:
1. The roll is made of chilled cast iron of vanadium and titanium alloys. (Rolls of G model are made of high grade steel with hard alloy welded on the surface.)
2.The roll face is hard and anti-wear. Both the front roll and the back roll are fluted. The internal cavity of the roll is processed to ensure temperature well proportioned on the roll surface.
3.The machine is equipped with an overload protection device to prevent the major components from being damaged due to overloading.
4.By LTG rollers - cold hard cast-iron security, its surface hardness is made, 68 ~ 75 HS grinding and smooth surface. Inside the hollow cylinder for use, can according to the requirement, the steam and cooling water is used to regulate the temperature of the rolls. Two rolls with different relative rotation speed, rubber roller into two broken sewing machinery in the process.
5.The machine is also equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rod, and the machine will stop immediately.
technique parameter of rubber cracker mill
Item |
XKP400 |
XKP450 |
XKP560 |
Diameter of front roll(mm) |
400 (smooth) |
450(smooth) |
560(smooth) |
Diameter of back roll(mm) |
400 (groove) |
450(groove) |
510(groove) |
Working length(mm) |
600 |
650 |
800 |
Linear speed of front rollm/min) |
17.32 |
23.2 |
25.56 |
Ratio |
1:1.38 |
1:1.38 |
1:1.30 |
MAX gap(mm) |
8 |
8 |
15 |
capacity(kg/h) |
200-300 |
400-600 |
700-1000 |
Motor power(kw) |
45 |
55 |
75 |
Dimension (l*w*h)(mm) |
3950*1800*1780 |
4770*1846*1835 |
5064*2284*1978 |
Weight (kg) |
7000 |
11000 |
19000 |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
