Product Specifications
| Prod Model: |
XL-21 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Porduct Name: |
Xl-21 Low Voltage Power Distribution Cabinet (Box) |
| Product Model: |
Xl-21 |
| Type: |
Power |
| Structure: |
Protection |
| Brand: |
Keyuan |
Product Description

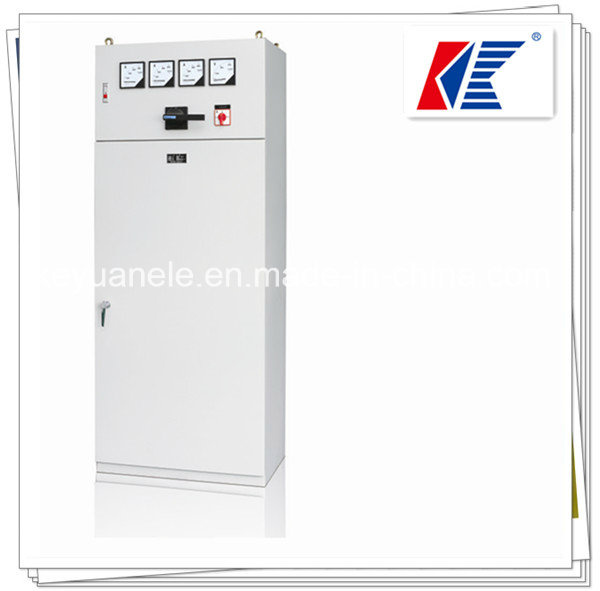

XL-21 low voltage power distribution cabinet (box)
Summary
The XL-21 low voltage power distribution cabinet (box) is applicable to the factories and enterprises of metallurgy, mine, petroleum, chemical, textile, port and station etc. and used for the power distribution and lighting in the three-phase three-wire, four-wire or five-wire low voltage power distribution system with the AC frequency of 50Hz, rated voltage of 400V or 660V and rated current of 630A. At the same time, it may be also used to control partial mouse cage and winding motor in the low voltage control system.
Introduction
The XL-21 low voltage power distribution cabinet (box) is applicable to the factories and enterprises of metallurgy, mine, petroleum, chemical, textile, port and station etc. and used for the power distribution and lighting in the three-phase three-wire, four-wire or five-wire low voltage power distribution system with the AC frequency of 50Hz, rated voltage of 400V or 660V and rated current of 630A. At the same time, it may be also used to control partial mouse cage and winding motor in the low voltage control system. This product complies with the standards such as IEC60439-1: 1992, GB7251·1-2013, GB7251·12-2013 and GB7251·3-2006 Low Voltage Switchgear and Control Equipment etc.
Normal Use Conditions
lThe ambient air temperature is not higher than +40ºC nor lower than -5ºC and its average temperature within 24 hours is not higher than +35ºC. The weather condition should be as follows: The air is fresh. The relative humidity is not higher than 50% when the maximum temperature is +40ºC and the higher relative humidity is allowed at the low temperature.
lThe altitude is not higher than 2,000m.lThis product is applicable to the transportation and storage processes at the following temperature: between -25ºC and +55ºC. The temperature can reach +70ºC in a short time (no longer than 24 hours). The equipment should be not suffer any unrecoverable damage under such limit temperature and should be able to operate normally under the normal conditions. Notes: Please negotiate with use in case of out of the above-mentioned environmental conditions for normal use.
The XL-21 power distribution cabinet is divided two types, including the common type (P type) with the heights of 1,700mm and 1,800mm, independent cabinet installation and the access hole can be made at the top according to the requirements; the capped bus type (M type) with the height of 1,900mm or above. The dismountable cover plate is installed on the cabinet top for easy assembly and disassembly of the bus.
The frame of the cabinet is made of the structural steel. The door plate, side and rear cover plates are dismountable. The mounting plate and side frame can be adjusted. The installation and maintenance are flexible and easy, the structure is compact and the generality is good. The precision-cast door hinge is used and the door opening angle is greater than 135°. All supports installed in the cabinet can be adjusted after the component is installed. The access wires can be installed according to different use environment. The generality is strong and several sets can be combined for use.
Other Instructions
The function to connect with the computer interface to achieve online central power monitoring and control can be designed for this product.
Company Profile:
Guangdong Keyuan Electric Co., LTD is a professional electrical manufacturer engaged in power transformer up to 35kv and other electrical equipment. For instance, amorphous alloy power transformer, dry-type transformer, oil-immersed transformer, with type, combined transformer substation, high and low voltage complete switchgear, rectifier transformer, electric furnace transformer, mining and other special purpose transformer. After nearly 10 years of development, Keyuan Electric has now become one of the major suppliers of Chinese Nation Grid and Southern Power Grid.
Currently, Keyuan electric has more than 30 senior engineering and technical talents, including 5 senior engineers. The strong technical force provide us with effective guarantee about product research and development. The company has got the certification of ISO9001:2008 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system. The amorphous alloy power transformer, dry type transformer, amorphous alloy class H dry type transformer, oil-immersed transformer, pre-installed type transformer, combined transformer, high and low voltage complete switchgear of our own successively won the "Guangdong famous brand", "Guangdong famous quality products", "China AAA + grade credit enterprise", "qualified supplier" and "excellent supplier" of the state grid and southern grid power electric equipment, "eagle enterprises " which was known as providing special support and training up to become listed companies. In 2009, Keyuan Electric was named as national hi-tech enterprise.If you are interested in our products, feel free to contact me!
Contact Information:
Name: Mavis
Mobile: +86 13630156304
Guangdong Keyuan Electric Co., Ltd.
Add: 15 Guanghong Road, Changhongling Industrial Park,
Shishan Town, Nanhai, Foshan,
Guangdong Province,
China
Web: www.keyuanele.com
Tel: 86-757-81787100-8688
Fax: 86-757-81267911
Zip Code: 528200
Guangdong Keyuan Electric Co., Ltd is a professional electrical manufacturer engaged in power transformer up to 35kv and other electrical equipment. For instance, amorphous alloy power transformer, dry-type transformer, oil-immersed transformer, with type, combined transformer substation, high and low voltage complete switchgear, rectifier transformer, electric furnace transformer, mining and other special purpose transformer. After nearly 10 years of development, Keyuan Electric has now become one of the major suppliers of Chinese state grid and southern power grid.

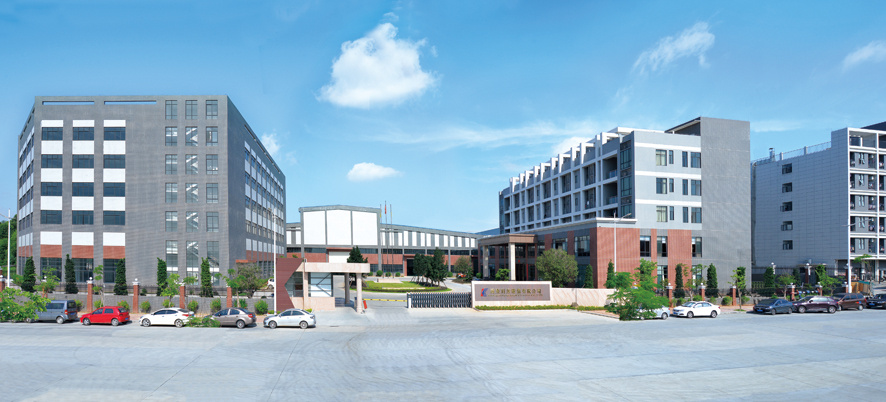

Keyuan electric is located in Nanhai district, Foshan city of Pearl River delta. As the forefront of reform and opening up, Foshan provides us convenient traffic conditions. Our Industrial park covers an area of 40000 square meters, and the annual design production capacity is almost 300 million dollars. The modern garden-like factory has several functions, for example production, technology development, staff living, learning and entertainment. Hereinto, production plant owns 2 spacious and bright body building, 11 workshops, and more than 260 sets of advanced production and testing instruments, which guarantee the high quality of our production; Perfect function design of the complex and the R&D center adopt ERP management system which provide an advanced platform for e-commerce, operations management, and the product innovation; At the same time, our quiet and graceful staff living area provides employees with a comfortable living environment which owns dine, entertainment, information, learning, and other functions
