XL2000 51 MCU Experimental System

Product Specifications

Prod Model:	xl2000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1.1 XL2000 System introduction

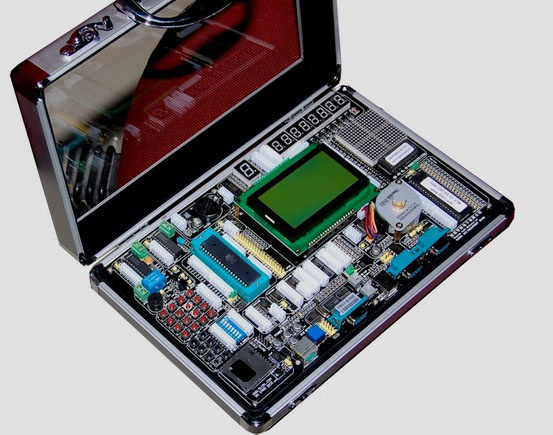

1. Xl2000 is an integrated demo system for study and development of 8051 Microcontroller, which is provided with four functions of experimental instrument, programmer, simulation interface and ISP download cable. Enclosed with control CPU and combined with programming software which has independent intellectual property rights.
2. With useful implemented peripherals, plentiful practical code examples and a broad set of additional add-on USB 2.0 IN-CIRCUIT ATMEL 8051 DEVELOPMENT BOARDboards(Serial, Compact Flash, MMC/SD, ADC, DAC, RTC, RS-485, etc. ), MikroElektronikadevelopment boards make fast and reliable tools thatcan satisfy the needs of experienced engineers and beginners alike.
3. XL2000 is easy to use Atmel 8051 development system. XL2000 has many features that makes your development easy. You can between USB Power supply. Easy8051B also supports Graphic LCD.
4. The smart choice for 8051 microcontrollers XL2000 allows the 8051 MCU to be interfaced with external circuits to a broad range of the peripheral devices, allowing the user to concentrate just on the software.
1.2 Features of XL2000 system:
1. Open modular design: Each module is designed to connect to I/O port of Microcontroller. Connection of module with any port of Microcontroller is conveniently achieved through dupont thread. All I/O ports are open externally with output socket. Expansion is easily accomplished
2. Outlook of XL2000(dark PCB for double faces, the SMT art makes it maybe the most elegant MCU experiment system you have ever seen, luxurious and noble, you will love it at the first sight.
3. WHAT'S ON BOARD?
1. Communication and downloading
2. Power supply
3. CPU simulation
4. Analog to Digit converter ADC0804
5. Digit to analog converter DAC0832
6. LCD display 12864LCD
7. 8bit digit LED
8. The SN74LS47 are BCD to 7-Segment
9. Parallel in serial out74LS165
10. 3-8 decoder74LS138
11. Serial in parallel out74LS164
12. Inverter (74LS14)
13. Step motor
14. 93C46
15. 24C02
16. Speaker
17. Remote
18. 18B20
19. 8 switch
20. 8way indicator
21. Matrix switches
22. 1 way relay output
23. DS1302
24. NE555
25. PS2
26. Crystal select
27. SD CARD
28. Dig switch
29. 232 PORT
30. 485 PORT
31. CAN BUS
32. 8155 extension
33. Chinese lattice
4. A beginner? Worry not, Easy-to-learn BASIC syntax, advanced compiler features, built-in routines, and the many practical examples that we have provided allow a quick start in programming 8051.
5. More ISP downloading options: With complementary software, XLISP programmer represents a great tool for. The microcontroller connects to the XLISP programmer via 6 lines, two of which are +5V and GND and others are MOSI, MISO, SCK and MCLR. Unlike programmers whose operation is based on bootloads(and which need to give away part of their memory to a bootload program)XLISP programs the microcontroller externally so that the entire memory is available for the programmer.
1. 3 The auction includes:
1. XL2000 DEVELOPMENT Board
2. USB cable
3. RS232 Cable
4. AT89S52 Chip*2
5. Remote control
6. SST89E516 Emulation chip
7. DIP40 Emulation port
8. ISP cable
9. Dupont thread expansion connection 20x wire
10. CD-ROM(Programmer Driver, English version PDF User manual, Board Schematic, Sample code(C/ASM). )
11. Compatible for OS including Windows 98, Windows 2000/NT, Windows XP, Windows 2003 and Vista.
1.4 System requirement and specification:
WINDOWS98/ME/2000/XP/2003/vista operation system.
Minimum 50MB space in hard disk.
At least one USB port or RS232 serial port
PCB size: 170* 270 mm
Package size: 210*360* 80 mm
Package weight: 2.6 kilograms
