Product Specifications
| Prod Model: |
XPC1106-XPC3120L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Everon |
| Phase: |
Single in Single out and Three in 1 out |
| Standby Time: |
Long Back up/ Built-in Battery |
Product Description

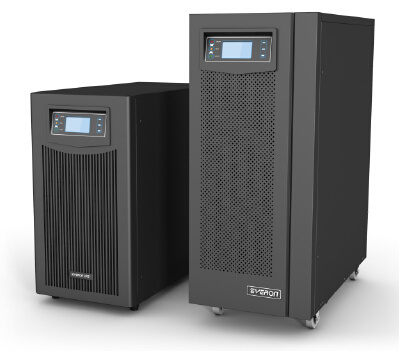

XPC series High Frequency online UPS 3 phase in 1 phase out/ 1 in 1 out 6-20kvaApplicationMid to small data server
Financial Branch
Telecommunication Base Station
Storage,VOIP,precision instrument
Medical service, industry automation
Product DescritpionHF11/31series (6-20kva) high frequency UPS is fully DSP controlled high end online double conversion UPS. It adopts DSP control, high efficient half bridge inverter, advanced hardware current limit technology. XPC11/31 series provide perfect sine wave output which can offer complete protection for critical load off samll and medium business.
Main Features>Full DSP controlled
>Online double conversion
>High input power factor
>System efficiency>94%
>Wide input voltage range
>50/60Hz source auto detection
>Input surge protection
>ECO mode for energy saving
>Intelligent perodic battery charge and discharge, to prolong battery life
>Input neutral and live wire reverse detection, to avoid reverse connection
>Bypass output protection to protect the load
>Intelligent fan speed regulation
>Fan fault detection and alarming
>Intelligent real time monitoring, instantly alarm and start full protection
>Self0diagnose when starting
>DC cold start
>Auto restart when AC source recover
>3 units parallel directly
>Large LCD display and LED indicator
>Abundant options
Options>SNMP card
>USB
>Parallel card
