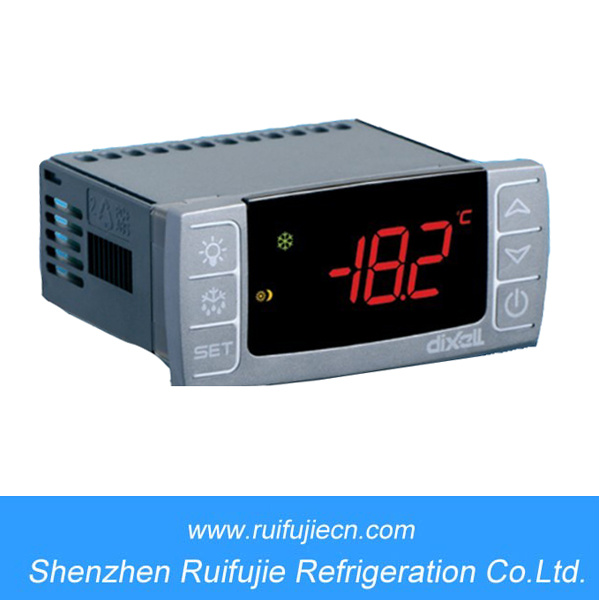

Xr06cx Prime Cx Refrigeration Dixell Controller for AC, Cold Room

Name: Xr06cx Prime Cx Refrigeration Dixell Controller for AC, Cold Room
Brand: china-manufacturer-directory.com
SKU: 729666455
Availability: InStock
Rating: 4.4 (130 reviews)

Supplier:	Shenzhen Ruifujie Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	Xr06cx
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Refrigerator
Certification:	CE
Control Type:	Digital
Type:	Temperature Controller
Display Type:	LED
Material:	Plastic

Product Description

Dixell Network air-cooled type three-output thermostat Temperature Controller

product description:

Model:Xr160C-0N0C1

Shell: ABS sublight flame retardant plastic;

Dimensions: front 32x74 mm;Deep 60 mm

Mounting dimensions: fixed in the open hole for 71x29mm panel;

Overall protection level: IP20;Front panel protection level: IP65;

Connecting terminal: bolt pressure, the wire diameter is less than 2.5mm2

Power supply: 230Vac + 10%, 50/60hz

Power consumption: maximum 3VA;

Display: 3 red digital tubes, 14.2 mm high;Input: no. 3 NTC or PTC input

Digital input: 1 channel passive digital signal input

Output relay: compressor/plus hotline: 20(8)A 250Vac;Defrost output: 8(3)A 250Vac;Fan: 5A 250Vac

Data storage: electrically erasable electronic writing memory (EEPROM).

Control level: 1B;Environmental level: 2;Software level: A;

Maximum insulation voltage: 2500V;Grade of overvoltage: II;

Working temperature: 0 ~ 60 ° C;Storage temperature: - 30 ~ 85 ° C.

Relative humidity: 20~85RH% (unexposed)

Measure and control temperature range: NTC: - 40 ~ 110 ° C;PTC: - 50 ~ 150 ° C

Resolution: 0.1 ° C or 1 ° C;Precision (at the ambient temperature of 25 ° C), plus or minus 1 ° C + 1

HOW TO ORDER
PRIME CX

A	B	C				D			E
Power Supply	Inputs	-	Buzzer	X-REP (excludes TTL output)	RS485 output	-	Measurement unit	RTC	-	Compressor output	Connection
0 = 12Vac/dc	P = PTC	0	No	No	No	C	°C	No	0	8A	Screw
1 = 12Vac/dc	N = NTC	1	Yes	No	No	F	°F	No	1	20A	Screw
2 = 24Vdc	S =Pt1000 only for XR35/75CX	2	No	Yes	No	H	°C heating only for XR10CX	No	3	16A	Screw
3 = 9 ÷40Vdc	S =Pt1000 only for XR35/75CX	3	Yes	Yes	No	H	°C heating only for XR10CX	No	6	8A	Faston
4 = 110Vac	- - - -	4	No	No	Yes	L	°F heating only for XR10CX	No	7	20A	Faston
5 = 230Vac		5	Yes	No	Yes	L	°F heating only for XR10CX	No	8	16A	Faston
- -		6	No	Yes	Yes	I	°C	Yes	- -	- -	- -
- -		7	Yes	Yes	Yes	M	°F	Yes	- -	- -	- -
