Product Specifications
| Prod Model: |
EDX3600B |
| Tester For Ores: |
Steel Analyzer |
Product Description
Instrument introduction

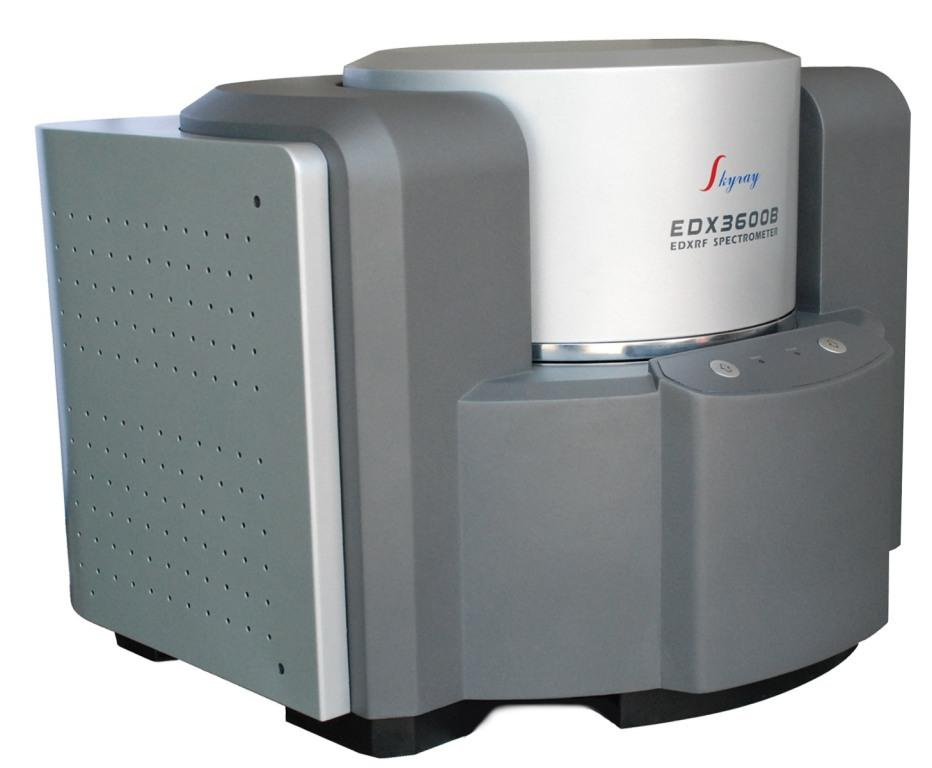

EDX3600B X-ray Fluorescence spectrometer uses XRF technology for rapid and accurate elemental analysis of cement and steel. The technology features low-energy X-rays with good excitation results of light elements such as Si, S, Na and Mg. Plus, the test time is short and test efficiency is greatly improved. The instrument is equipped with UHRD detector as well, which leads to good energy linearity, energy resolution, spectrum property and high peak-background ratio. Due to automatic spectrum stabilizing device, the instrument is in great consistency. As spectrum decoupling technique is used, the original spectrum can be easily decoupled, and the measured analytical precision of light elements of Si, S, Al, etc is the same. Owing to multi-parameter linear regression method, the absorption and enhancement effects between elements are significantly reduced
Performance characteristics
Deliver professional full-element analysis of cement, steel, minerals, plating thickness and hazardous elements (RoHS).
In-built SNE improves the signal processing ability up to 25 times.
The collimators and filters can be switched automatically for different samples.
Electric-cooling UHRD detector instead of liquid nitrogen cooling detector
Intelligent full-element analysis software matches with the hardware well.
Specification:
Precision: 0.05%
Elements in range: Na~U, the testing limitation of hazardous
Substances in RoHS CD, Pd, Cr, Hg, Br can be 1PPM
Measurement substance: Powder, Solid, Liquid.
Count Rate: 1300~8000 Cps
High Voltage: 15~50kV
Tube Current: 50~1000uA
Testing Time: 60--300seconds
Detector with semiconductor silicon electric cooling system
Analyzer with strengthen metal elements strengthened sensor.
Relative humidity: <70%
Dimension: 1000*1000*300mm
Power supply: AC 100V / 220V
Skyray Instrumnet Inc., spent 20 years of dedicated service on the development, production and sales of X-ray Fluorescence Spectrometers. The company owns the world's first-class expert team in field of X-ray fluorescence analytical technology, abundant fund, and unparalleled technology. It has 56 patent technologies. The products are widely used in precious metal analysis(Au, AG, PT, Pd, etc), electronic and electric industry, cement industry, steel industry, plating thickness measurement, commodity inspection, scientific study, RoHS detection and so on. At present, the company tops the World's No. 1 in both Sales Amount and Product Categories.
