Pallet Size: W(500-1200)mm x L(500-1200)mm
Wrapping Height: 1800mm
Packing Speed: 20-30 pallets/hour
Rotation Speed: 0-20rpm variable
Air Pressure: 0.4-0.7Mpa
Cut Method: Heater
Carriage Speed: 3m/min variable
Control: PLC, touch screen
Working Method: Fully automatic
Top Sheet Pulling Speed: 12m/min
Top Sheet Size: W1800mm, length adjustable
Conveyor Height: 450mm
Conveyor Speed: 0-12m/min
Loading Weight: 2000kg
Power: 3PH 380VAC, 50/60Hz, 20A, 2.5kw+conveyors
Machine Dimensions: 3200 x 3220 x 3120mm
Machine Weight: 1800kg

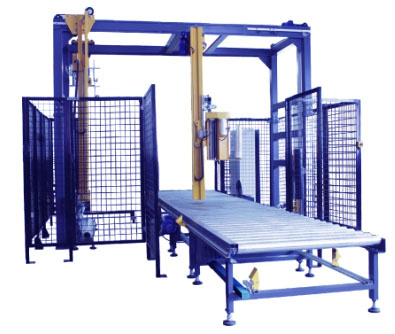

XT402D Auto Rotary with Dispensing Wrapper is conveyorized wrapper for automated unmanned packing lines. The machine automatically senses & centerize, wraps film around, covers the top and conveys the pallets. Roller, belt, chain, or board type conveying equipments could be used. System could be custom engineered according to specific products and different field requirements. The machine consists of frame, rotary wrapper, motorized conveyors, auto film apply & cut device, top sheet dispensing unit and control box. This system is ideal for modernized plants in industries such as food & beverage, chemicals, paper making, building materials, electric & electronics, etc. Features:
*Two working mode choices: Wrapping, or wrapping with top sheet dispensing.
*Automatic stretch film apply & cut, pneumatically driven.
*Powered pre-stretch film carriage, ratio 250%.
*Automatic wrapping according to pre-set parameters. Touch screen user interface for setting wrap cycles, top/bottom cycles & film tension.
*Rotary arm home position, highly sensitive rotary brake system.
*Extra safety measures: Flickering tri-light lantern, safety fencing (optional), photocell protection of infeeding & outfeeding pallets.
Stretch pallet wrapper is widely used in chemical industry, food & beverage, electric & electronic industry, building materials, home appliances, paperrmaking, etc
* Top sheet dispensing system optional
* Mahcine could be custom engineered to specific applications.
