Zhejiang Huaming Electric Motor Co., Ltd. >> Y Series Three Phase Induction Motor (Y112M-4)

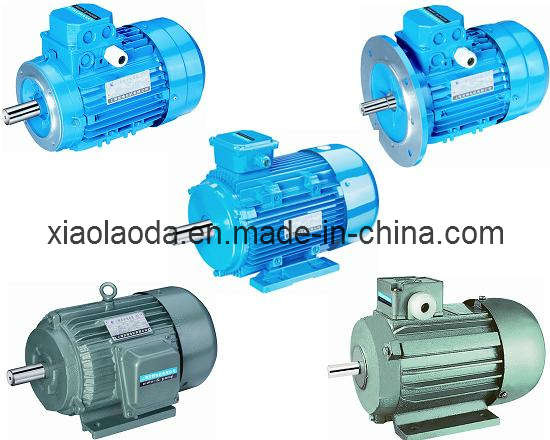

Y Series Three Phase Induction Motor (Y112M-4)

Name: Y Series Three Phase Induction Motor (Y112M-4)
Brand: china-manufacturer-directory.com
SKU: 695317785
Availability: InStock
Rating: 4.4 (107 reviews)

Supplier:	Zhejiang Huaming Electric Motor Co., Ltd.
Price:	Negotiable
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	Y112M-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Industrial
Speed:	Constant Speed
Power Source:	AC Motor
Structure:	Asynchronous Motor
Function:	Driving
Starting Mode:	Three Phase Motor

Product Description

We are one of the experienced electric motors manuacturers in China. Our motors are used in every industrial activity including mining, water treatment, processing and manufacturing where they drive fans, pumps, compressors, high pressure cleaner, oven and conveyors.

Feature: Y series three phase induction motors / AC electric motors / pump motors are with outstanding performance, such as High efficiency, energy-saving, High starting torque, low noise, little vibration, reliablw operation, easy maintance, etc.

Usable range: Y series motors are widely used in places where not exists combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, etc.

Protection Class: IP44, IP55, IP56 Insulation Class: B, F, H
Rated Volt: 220/380V; 380/660V Cooling Type: ICO141
Rated Frequency: 50Hz(60Hz) Operation Type: S
Frame: Cast iron, cast aluminum, aluminum alloy. Steel plate

Any interest and doubt Pls contact us.
We will help you and the E-catalogue will be provided for your reference.

Technical Data

Type	Power		Voltage (V)	Current (A)	Speed (r/min)	Eff (%)	Power Factor (cosΦ )
Type	Hp	kW	Voltage (V)	Current (A)	Speed (r/min)	Eff (%)	Power Factor (cosΦ )
Y80M 1 -2	1	0.75	380	1.8	2830	75	0.84	2.2	6.5	2.3
Y80M 2 -2	1.5	1.1	380	2.5	2830	77	0.86	2.2	7.0	2.3
Y90S-2	2	1.5	380	3.4	2840	78	0.85	2.2	7.0	2.3
Y90L-2	3	2.2	380	4.8	2840	80.5	0.86	2.2	7.0	2.3
Y100L-2	4	3	380	6.4	2870	82	0.87	2.2	7.0	2.3
Y112M-2	5.5	4	380	8.2	2890	85.5	0.87	2.2	7.0	2.3
Y132S 2 -2	7.5	5.5	380	11.1	2900	85.5	0.88	2.0	7.0	2.3
Y132S 2 -2	10	7.5	380	15.0	2900	86.2	0.88	2.0	7.0	2.3
Y160M 1 -2	15	11	380	21.8	2930	86.2	0.88	2.0	7.0	2.3
Y160M 2 -2	20	15	380	29.4	2930	88.2	0.88	2.0	7.0	2.3
Y160L-2	25	18.5	380	35.5	2930	89	0.89	2.0	7.0	2.2
Y180M-2	30	22	380	42.2	2940	89	0.89	2.0	7.0	2.2
Y200L 1 -2	40	30	380	56.9	2950	90	0.89	2.0	7.0	2.2
Y200L 2 -2	50	37	380	69.8	2950	90.5	0.89	2.0	7.0	2.2
Y80M 1 -2	0.75	0.55	380	1.5	1390	73	0.76	2.4	6.0	2.3
Y80M 2 -2	1	0.75	380	2.0	1390	74.5	0.76	2.3	6.0	2.3
Y90S-4	1.5	1.1	380	2.8	1400	78	0.78	2.3	6.5	2.3
Y90L-4	2	1.5	380	3.7	1400	79	0.79	2.3	6.5	2.3
Y100L 1 -4	3	2.2	380	5.0	1430	81	0.82	2.2	7.0	2.3
Y100L 2 -4	4	3	380	6.8	1430	82.5	0.81	2.2	7.0	2.3
Y112M-4	5.5	4	380	8.8	1440	84.5	0.82	2.2	7.0	2.3
Y132S-4	7.5	5.5	380	11.7	1440	85.5	0.84	2.2	7.0	2.3
Y132SM-4	10	7.5	380	15.4	1440	87	0.85	2.2	7.0	2.3
Y160M-4	15	11	380	22.6	1460	88	0.84	2.2	7.0	2.3
Y160M-4	20	15	380	30.3	1460	88.5	0.85	2.2	7.0	2.3
Y180M-4	25	18.5	380	35.9	1470	91	0.86	2.0	7.0	2.2
Y180L-4	30	22	380	42.5	1470	91.5	0.86	2.0	7.0	2.2
Y200L-4	40	30	380	56.8	1470	92.2	0.87	2.0	7.0	2.2
Y90S-6	1	0.75	380	2.3	910	72.5	0.70	2.0	5.5	2.2
Y90L-6	1.5	1.1	380	3.2	910	73.5	0.72	2.0	5.5	2.2
Y100L-6	2	1.5	380	4.0	940	77.5	0.74	2.0	6.0	2.2
Y112M-6	3	2.2	380	5.6	940	80.5	0.74	2.0	6.0	2.2
Y132S-6	4	3	380	7.2	960	83	0.76	2.0	6.5	2.2
Y132M 1 -6	5.5	4	380	9.4	960	84	0.77	2.0	6.5	2.2
Y132 2 -6	7.5	5.5	380	12.6	960	85.3	0.78	2.0	6.5	2.0
Y160M-6	10	7.5	380	17.0	970	86	0.78	2.0	6.5	2.0
Y160L-6	15	11	380	24.6	970	87	0.78	2.0	6.5	2.0
Y180L-6	20	15	380	31.4	970	89.5	0.81	1.8	6.5	2.0
Y200L 1 -6	25	18.5	380	37.7	970	89.8	0.83	1.8	6.5	2.0
Y200L 2 -6	30	22	380	44.6	970	90.2	0.83	1.8	6.5	2.0
Y160M 1 -8	5.5	4	380	9.9	720	84	0.73	2.0	6.0	2.0
Y160M 2 -8	7.5	5.5	380	13.3	720	85	0.74	2.0	6.0	2.0
Y160L-8	10	7.5	380	17.3	720	86	0.75	2.0	6.5	2.0
Y180L-8	15	11	380	24.8	730	87.5	0.77	1.7	6.0	2.0
Y200L-8	20	15	380	34.1	730	88	0.76	1.8	6.0	2.0

Zhejiang Huaming Electric Motor Co., Ltd founded in 1985 year, is located in Wenling city. Closes to 104 National Road, 15 minutes' driving to the Wenling Railway Station, high-speed road junctions and 30 minutes' driving to Huangyan airport, Only 3 hours'way to Ningbo Port.

The company is an enterprise covering design, production and sales, produce "XIAOLAODA" brand products, there are EU IEC standard three-phase electric motors Y, Y2, YD, YVF, YB2, YS series, single-phase motors YC, YL, YY series, and the USA NEMA standard single & three-phase motors, also many derived motors (meat machines motor, fruit juicer motors, food processing motors, etc ). Also we product submersibel pumps as QY, QX, WQD, IRG four series. We achieved a "national industrial product production license", "export product quality permit" and the products certificates, such as CCC, ISO9001, CE, TUV, and we can apply UL certificate for clients.

Our products are very popular in China, we have Right to Import and Export, we also widely export to Europe, Australia, and America market.

Any interests or doubts, Please Kindly contact us, the good cooperation come from this moment.
