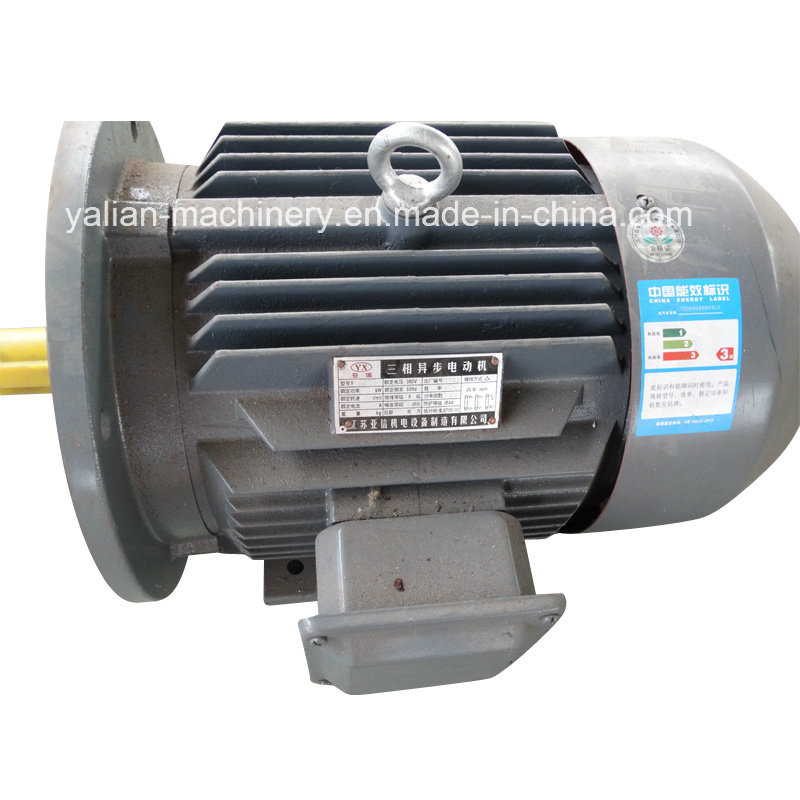

Y2 Series Asynchronous Y Series Electric Motor

Name: Y2 Series Asynchronous Y Series Electric Motor
Brand: China-Manufacturer-Directory.com
SKU: 773764505
Availability: InStock
Rating: 4.5 (85 reviews)

Supplier:	Lianyungang Yalian Mining Machinery Manufacturing Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	Y2
Markets:	North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Application:	Universal
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Closed Type
Brand:	Yx

Product Description

y series electric motor 380v 50hz
General Introdution:
1.Y2 series three-phase asynchronous motor is Y series motor the upgrading of product, is the totally enclosed, fan-cooled      induction motor for general purpose . It was the newest product in the 90S' ,its overall level has reached the same products abroad at the beginning of 90S'level. The product apply to economic lake-off fields, such as machine tools, water pump, fan, compressor, also can be applied to transportation, stirring, printing, agricultural machinery, food and other kinds of excluding inflammable, explosive or corrosive gas.
      2.Y2 series three-phase asynchronous motor installation size and power grade in conformity with relevant standards of IEC and Germany DIN42673 standard line and Y series motor, its shell protection grade for IP54, cooling method for IC41l, operate continuously (S1). Using F insulation class and grade B assessment according to temperature .
      3.Y2 series three-phase asynchronous motor the rated voltage is 380 V. rated frequency is 50 Hz. 3 KW the following connection is Y , other power are delta connection . Motor running the place at no more than 1000 m; Environment air temperature changes with seasons, but no more than 40 °C; Minimum environment air temperature is-15 °C; The wet month average high relative humidity is 90%; At the same time, this month is not higher than the lowest average temperature 25 °C.

Y2 MOTOR TECHNICALDATA

Model No.	Rated Power		Current (A)	Speed (r/min)	EFF.(%)	Power Factor (Cosφ)	LRT/FLT	LRC/FLC	POT/FLT	Noise LwdB(A)
Model No.	KW	HP	380V	Speed (r/min)	EFF.(%)	Power Factor (Cosφ)	LRT/FLT	LRC/FLC	POT/FLT	Noise LwdB(A)
50Hz Synchronous Speed 3000r/min (2Pole)
801-2	0.75	1	1.77	2840	75	0.83	2.2	6.1	2.3	67
802-2	1.1	1.5	2.61	2840	76.2	0.84	2.2	6.9	2.3	67
90S-2	1.5	2	3.46	2850	78.5	0.84	2.2	7	2.3	72
90L-2	2.2	3	4.85	2855	81	0.85	2.2	7	2.3	72
100L-2	3	4	6.34	2860	82.6	0.87	2.2	7.5	2.3	76
112M-2	4	5.5	8.2	2880	84.2	0.88	2.2	7.5	2.3	77
132S1-2	5.5	7.5	11.1	2900	85.7	0.88	2.2	7.5	2.3	80
132S2-2	7.5	10	14.9	2900	87	0.88	2.2	7.5	2.3	80
160M1-2	11	15	21.2	2930	88.4	0.89	2.2	7.5	2.3	86
160M2-2	15	20	28.6	2930	89.4	0.89	2.2	7.5	2.3	86
160L-2	18.5	25	34.7	2930	90	0.9	2.2	7.5	2.3	86
180M-2	22	30	41	2940	90.5	0.9	2	7.5	2.3	89
200L1-2	30	40	55.4	2950	91.4	0.9	2	7.5	2.3	92
200L2-2	37	50	67.9	2950	92	0.9	2	7.5	2.3	92
225M-2	45	60	82.1	2960	92.5	0.9	2	7.5	2.3	92
250M-2	55	75	100	2970	93	0.9	2	7.5	2.3	93
280S-2	75	100	135	2975	93.6	0.9	2	7	2.3	94
280M-2	90	125	160	2975	93.9	0.91	2	7.1	2.3	94
315S-2	110	150	195	2975	94	0.91	1.8	7.1	2.2	96
315M-2	132	180	233	2975	94.5	0.91	1.8	7.1	2.2	96
315L1-2	160	220	279	2975	94.6	0.92	1.8	7.1	2.2	99
315L2-2	200	270	348	2975	94.8	0.92	1.8	7.1	2.2	99
355M-2	250	340	433	2980	95.2	0.92	1.6	7.1	2.2	103
355L-2	315	430	545	2980	95.4	0.92	1.6	7.1	2.2	103
50Hz Synchronous Speed 1500r/min (4Pole)
801-4	0.55	0.75	1.57	1390	71	0.75	2.4	5.2	2.3	58
802-4	0.75	1	2.05	1390	73	0.76	2.3	6	2.3	58
90S-4	1.1	1.5	2.85	1390	76.2	0.77	2.3	6	2.3	61
90L-4	1.5	2	3.72	1400	78.5	0.78	2.3	6	2.3	61
100L1-4	2.2	3	5.09	1410	81	0.81	2.3	7	2.3	64
100L2-4	3	4	6.78	1410	82.6	0.82	2.3	7	2.3	64
112M-4	4	5.5	8.8	1435	84.2	0.82	2.3	7	2.3	65
132S-4	5.5	7.5	11.7	1440	85.7	0.83	2.3	7	2.3	71
132M-4	7.5	10	15.6	1450	87	0.84	2.3	7	2.3	71
160M-4	11	15	22.5	1460	88.4	0.84	2.2	7	2.3	75
160L-4	15	20	30	1460	89.4	0.85	2.2	7.5	2.3	75
180M-4	18.5	25	36.3	1470	90	0.86	2.2	7.5	2.3	76
180L-4	22	30	43.2	1470	90.5	0.86	2.2	7.5	2.3	76
200L-4	30	40	57.6	1470	91.4	0.86	2.2	7.2	2.3	79
225S-4	37	50	70.2	1475	92	0.87	2.2	7.2	2.3	81
225M-4	45	60	84.9	1475	92.5	0.87	2.2	7.2	2.3	81
250M-4	55	75	103	1480	93	0.87	2.2	7.2	2.3	83
280S-4	75	100	138.3	1480	93.6	0.88	2.2	6.8	2.3	86
280M-4	90	125	165	1480	93.9	0.88	2.2	6.8	2.3	86
315S-4	110	150	201	1480	94.5	0.88	2.1	6.9	2.2	93
315M-4	132	180	240	1480	94.8	0.88	2.1	6.9	2.2	93
315L1-4	160	220	288	1480	94.9	0.89	2.1	6.9	2.2	97
315L2-4	200	270	360	1480	94.9	0.89	2.1	6.9	2.2	97
355M-4	250	340	443	1490	95.2	0.9	2.1	6.9	2.2	101
355L-4	315	430	559	1490	95.2	0.9	2.1	6.9	2.2	101
50Hz Synchronous Speed 1000r/min (6Pole)
801-6	0.37	0.5	1.3	880	62	0.7	1.9	4.7	2	54
802-6	0.55	0.75	1.8	880	65	0.72	1.9	4.7	2.1	54
90S-6	0.75	1	2.29	905	69	0.72	2	5.3	2.1	57
90L-6	1.1	1.5	3.18	905	72	0.73	2	5.5	2.1	57
100L-6	1.5	2	4	920	76	0.75	2	5.5	2.1	61
112M-6	2.2	3	5.6	935	79	0.76	2	6.5	2.1	65
132S-6	3	4	7.4	960	81	0.76	2.1	6.5	2.1	69
132M1-6	4	5.5	9.75	960	82	0.76	2.1	6.5	2.1	69
132M2-6	5.5	7.5	12.9	960	84	0.77	2.1	6.5	2.1	69
160M-6	7.5	10	17.2	970	86	0.77	2	6.5	2.1	73
160L-6	11	15	24.5	970	87.5	0.78	2	6.5	2.1	73
180L-6	15	20	31.6	970	89	0.81	2	7	2.1	73
200L1-6	18.5	25	38.6	980	90	0.81	2.1	7	2.1	76
200L2-6	22	30	44.7	980	90	0.83	2	7	2.1	76
225M-6	30	40	59.3	980	91.5	0.84	2	7	2.1	76
250M-6	37	50	71	980	92	0.86	2.1	7	2.1	78
280S-6	45	60	86	980	92.5	0.86	2.1	7	2	80
280M-6	55	75	104	980	92.8	0.86	2.1	7	2	80
315S-6	75	100	142	985	93.5	0.86	2	6.7	2	85
315M-6	90	125	169	985	93.8	0.86	2	6.7	2	85
315L1-6	110	150	207	985	94	0.86	2	6.7	2	85
315L2-6	132	180	245	985	94.2	0.87	2	6.7	2	85
355M1-6	160	220	292	990	94.5	0.88	1.9	6.7	2	92
355M2-6	200	270	365	990	94.5	0.88	1.9	6.7	2	92
355L-6	250	340	457	990	94.5	0.88	1.9	6.7	2	92
50Hz Synchronous Speed 750r/min (8Pole)
801-8	0.18	0.25	0.83	645	51	0.61	1.8	3.3	1.9	52
802-8	0.25	0.34	1.1	645	54	0.61	1.8	3.3	1.9	52
90S-8	0.37	0.5	1.49	675	62	0.61	1.8	4	1.9	56
90L-8	0.55	0.75	2.17	680	63	0.61	1.8	4	2	56
100L1-8	0.75	1	2.43	680	70	0.67	1.8	4	2	59
100L2-8	1.1	1.5	3.36	680	72	0.69	1.6	5	2	59
112M-8	1.5	2	4.4	690	74	0.7	1.8	5	2	61
132S-8	2.2	3	6	710	79	0.71	1.8	6	2	64
132M-8	3	4	7.8	710	80	0.73	1.8	6	2	64
160M1-8	4	5.5	10.3	720	81	0.73	1.9	6	2	68
160M2-8	5.5	7.5	13.6	720	83	0.74	1.9	6	2	68
160L-8	7.5	10	17.8	720	85.5	0.75	1.9	6	2	68
180L-8	11	15	25.5	730	87.5	0.75	2	6.5	2	70
200L-8	15	20	34.1	730	88	0.76	2	6.6	2	73
225S-8	18.5	25	41.1	730	90	0.76	1.9	6.6	2	73
225M-8	22	30	48.9	730	90.5	0.78	1.9	6.6	2	73
250M-8	30	40	63	735	91	0.79	1.9	6.5	2	75
280S-8	37	50	78	740	91.5	0.79	1.9	6.6	2	76
280M-8	45	60	94	740	92	0.79	1.9	6.6	2	76
315S-8	55	75	111	735	92.8	0.81	1.8	6.6	2	82
315M-8	75	100	150	735	93.5	0.81	1.8	6.2	2	82

Lianyungang Yalian Mining Machinery Manufacturing Co., Ltd. is located Mining Machinery Industrial Park of Donghai Lianyungang City, distance airport only 3KM, Lianyungang port tens KM, which is specializing in the production of mining machinery of the star enterprise, registered capital USD700Million, since company established, we are in line with the spirit of "quality first, the user is supreme" purpose, chair of the horse ore senior engineer for technical adviser, Closely the actual needs of the ore, constantly sum up experience, pioneering and innovative, production of various types of filter, magnetic separator, dry cleaning machine, magnetic Reunion high-frequency screen, tailings recovery machine, choose sand machine. Product technology leader, reliable performance, the indicators meet customer requirements and standards, in the country's large and medium black metal mines and rivers in a wide range of applications, by the trust of the majority of customers!

Lianyungang Yalian Mining Machinery is one of the earliest specializing in the production of mining machinery equipment manufacturers in Jiangsu Province, , strictly abide by contracts, trustworthy enterprise; In 2012 obtain the ISO9001: 2000 quality system certification, product coverage throughout the country, are exported to Indonesia, Vietnam, Myanmar, Mexico, Chile, Turkey and other more than a dozen countries and regions. Through several year unremitting efforts, we are growing and involved in the mechanical filed, and founded the investment Lianyungang Yaxin Mechanical And Electrical Equipment Manufacturing Co., Ltd. (professional manufacturing motor) and Lianyungang San'an Machinery Manufacturing Co., Ltd. (professional manufacturing grain dryer). For promoting our company development, all of our products would be sold in different countries.

In order to let the new and old customers at ease the use of our products, is now on the product quality assurance and service solemn commitment:

One, the quality guarantee 1year, we are free to maintenance or replacement if any of quality questions during this period except for wearing parts

Two, service commitment Book, all products meet the standards of mining machinery industry standard.
