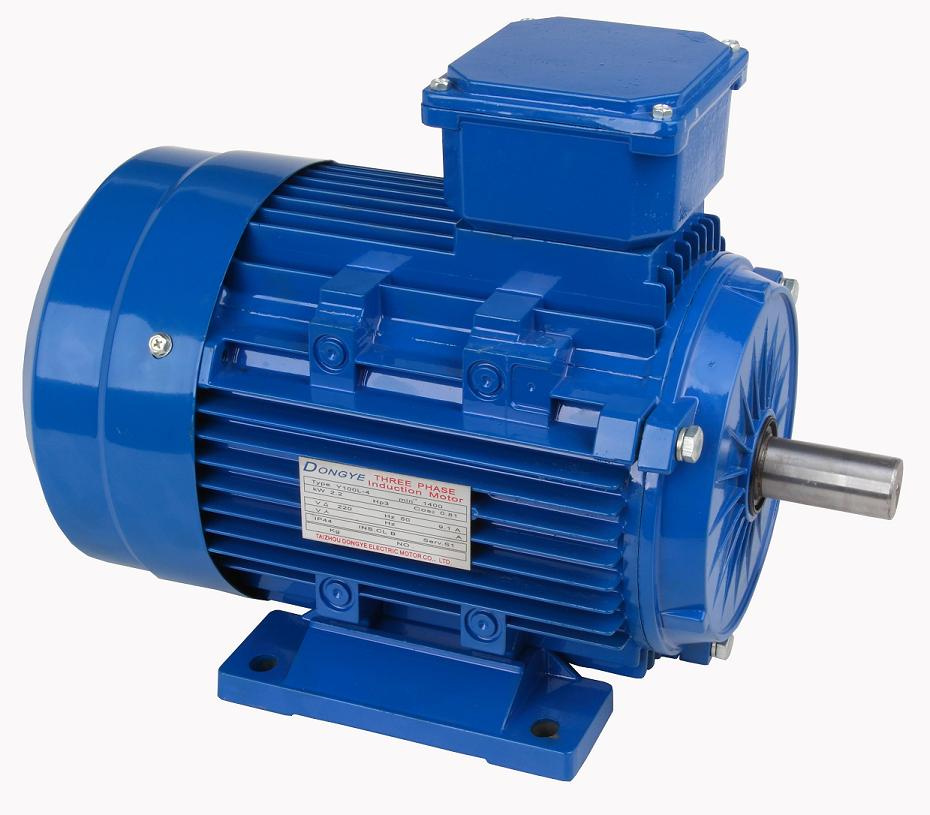

Y2 Series Three-Phase Asynchronous Electric Motor
Product Specifications
| Prod Model: |
Y2 56 - Y2 355 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
56-315 |
| Voltage: |
220/380/440 |
| Species: |
Y, Y2 Series Three-Phase |
| Number Of Stator: |
Three-Phase |
| Operating Speed: |
High Speed |
| Application: |
Power Tools |
| Casing Protection: |
Protection Type |
| Rotor Structure: |
Squirrel-Cage |
| Starting Mode: |
Direct on-line Starting |
Product Description
Property and Featurs:
Y2 series three-phase asynchronous motors, developed with new techniques, are renewed and upgrading products based on Y series motors.
Y2 series motors are in total-sealed design and fan cooled type, squirrel cage type and novel in design and nice in appearance, compact structure. Lower noise, high efficiency, large torque, excellent starting performance, easy maintaince, etc This series motors adopt F class insulation and designed as the insulation system assessing method in accordance of international practice.
Y2 series motors can be widly applied to various of driving equipments such as machine tools, blowers pumps, gear boxes, compressors, transporters, agricultural machines etc.
Operating Conditons
Ambient temperature: -15oC≤ θ ≤ 40oC
Altitude: No higher than 1000 meters from sea level
Rated voltage: 380V, 220/380V, 380/660V, 415V
Rated frequency: 50Hz or 60Hz
Insulation class: F
Protection type: IP54 or IP55
Cooling type: IC411
Duty type: S1
There are three kinds of installation way for motor:
1. B3 Frame with foot end shield without flange
2. B35 Frame with foot end shield with flange
3. B5 Frame without foot end shield with flange
Taizhou Dongye Electric Motor Co., Ltd. is located in Daxi Town enjoys the convenient transportation of land, air, and sea of the nearby. It is an ideal place for producing and marketing.
We have the markets over 15 countries and regions, such as Philippines, Korea, Viet nam, Sri Lanka, Bangladesh, Iran, Peru, Ukraine, Russia, Italy, Spain, Poland, etc.
Our company's main products now consist of YC, YL, YCL, YY, JY, MC, MY single phase induction motors and Y, Y2, YS, MS, YCT, YEJ2 series three phase induction motors.
We have explored the new produces of hub motors, grinding machine, and AC arc welding machine and DC inverter welding machine and battery charger.
For all products information, please logon our website for your reference.
We have already got "CE" "CCC" & "ISO 9001" quality certificate.
We have been possessed with rich technical ability and guarantee products quality from precision of production and quality management system. We always consider "Best quality, Highest Reputation, Important clients" as our belief.
Sincerely welcome to visit our company, we would like to cooperate with all the customers over the world to create the splendid future.
