Product Specifications
| Prod Model: |
YA various |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001,ISO14000 |
| Application: |
Cement, Magnesium, Limestone, Dressing, Ceramsite |
| Type: |
Screen |
| Experience: |
More Than 50 Years |
| Area (Square Meters)]: |
7.5-14 |
| Production Capacity (T/H): |
150-1700 |
| Particle Size (Mm): |
≤ 50- ≤ 400 |
| Installation: |
Under Our Engineer's Guide |
| After Sale Service: |
We Offer |
| Spare Parts: |
We Offer |
Product Description

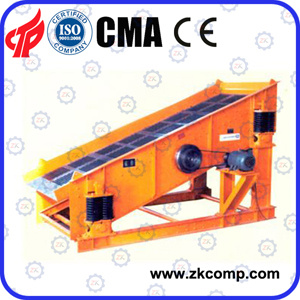

The vibrating screen is machinery and equipment of vibration screening, which is suitable for damp fine grade of difficult materials with dry vibration screening, and is also equipment to process difficult materials of the domestic. Vibrating screen has the process characteristics of large amplitude, large vibration intensity, low frequency and elastic screen surface. In the working process, it maintains the largest rate of hole, which is of high efficiency, large capacity, convenient replacement of sieve plate, and reduces the cost.
Our company mainly produces three kinds of vibrating screen as follows:
YA Series Circular Vibrating Screen:
YA Drum Vibrating Screen is primarily applied coal, Metallurgical, power generation, building material, water conservancy 'light and chemical industries and other industries and a highly efficient screening machine to classify coal, ore, coke and other bulk materials.
Working Philosophy and Structural Property
The screen is operated by electric motor to drive vibrator with eccentric mass via delta belt, allowing screen box to vibrate, with the motional orbit of the screen box being circular. The screen is composed of screen box, vibrator, spring, damping, supporting underframe and others, as shown in Fig. 1. The screen box uses the advanced ring groove rivet for connection and si of frame structure.
The vibrator adopts eccentric shaft and eccentric block and the spring damping device sues steel spiral spring.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://www.inczk.com/ & http://www.zkcomp.com/
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://www.zkcomp.com/calcining/558. Html
Rotary Kiln: http://www.inczk.com/Products/459. Html
Preheater: http://www.zkcomp.com/calcining/605. Html
Cement Mill: http://www.inczk.com/Products/460. Html
Rotary Dryer: http://www.zkcomp.com/calcining/564. Html
Raw Mill: http://www.inczk.com/Products/1373. Html
Ball Mill: http://www.zkcomp.com/grinding/582. Html
|
Model and spec |
layer |
area |
Opening size |
Feed size |
capacity |
frequency |
power |
|
m² |
mm |
mm |
t/h |
v.p.m |
kw |
|
Circular Vibrating Screen |
|
YA1848 |
1 |
7.5 |
6-50 |
≤200 |
150-525 |
845 |
15 |
|
YAH2160 |
1 |
12 |
6-50 |
≤400 |
350-1500 |
708 |
30 |
|
2YAH2160 |
2 |
12 |
30-150 |
≤400 |
350-450 |
708 |
30 |
|
YA2448 |
1 |
11 |
6-50 |
≤200 |
200-700 |
748 |
18.5 |
|
YAH2448 |
1 |
11 |
6-50 |
≤400 |
310-1300 |
708 |
30 |
|
2YAH2448 |
2 |
11 |
30-150 |
≤400 |
310-1300 |
708 |
30 |
|
YA2460 |
1 |
14 |
6-50 |
≤200 |
260-780 |
748 |
30 |
|
2YA2460 |
2 |
14 |
6-50 |
≤200 |
260-780 |
748 |
30 |
|
YAH2460 |
1 |
14 |
30-150 |
≤400 |
400-1700 |
708 |
30 |
|
2YAH2460 |
2 |
14 |
30-150 |
≤400 |
400-1700 |
708 |
30 |
