Product Specifications
| Prod Model: |
YC/YCL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Universal |
| Speed: |
High Speed |
| Starting Mode: |
Split-phase Single Phase Asynchronous Motor |
| Structure: |
Asynchronous Motor |
| Function: |
Control |
Product Description

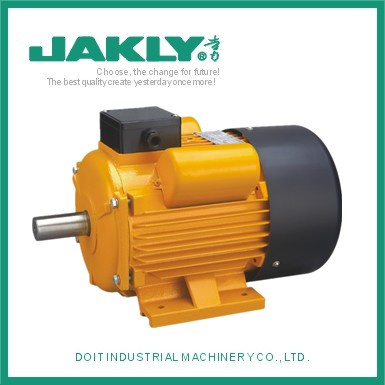

YC/YCL Series Electric Motor
YC series heavy-duty single-phase motors are suitable for small size machine tools and water pumps, especially suitable for family workshops where only single-phase power be supplied. This series motors are designed with the latest technology, manufactured with the quality materials, have following features: Good performance, safe and reliale operation, nice appearance, convenient maintenance, meet the IEC standards.
YC series motors are of lP44 totally enclosed fan-cooled(TEFC)type. Capacitor starting for rated output up to 3HP. On rated voltage and 50Hz, the starting torgue is three times more than the rated torque while 60Hz is 2.75times more. Capacitors start and run type ror Motors 4HP and above. It have following features: High starting torque. Smooth running, low temperature rise, low noise and greater overload performance.
YCL series heavy-duty capacitor start and run. Single phase induction motors are suitable for driving small-size turning machine. Especially sultable for household and workshop where only need single-phase power be supplied. This series motors are designed with advanced technique and made of quality materials. It also has follaring features: Low noise, low temperature rise. Small starting current, high starting torque. Reliable operation. Easy maintenance and nice appearance, they also meet the relative standards of IEC.
YCL series motors are similar to YC series in appearance. Comparing with the same output of YC series motors. YCLseries temperature rise be reduced 8.74k on average. Efficiency be increased 4.21%power factor be increased 0.16.
OPERATING CONDITIONS
Rated voltage; 110V, 115V, 120V, 220V, 230V, 240V
Rated frequency: 50Hz or 60Hz
Protection class: IP44, IP54
Insulation class: B, F, H
Cooling method: ICO141
Duty: S1(continuous)
