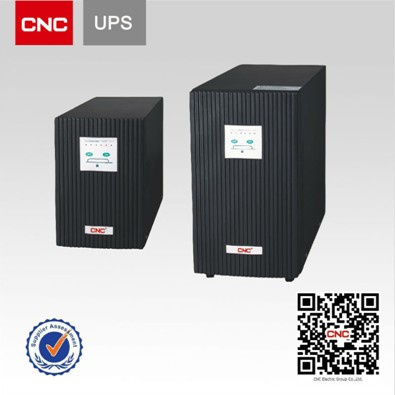

YCA Series Online UPS, Uninterrupted Power Supply
Features:
· Pure sine wave output;
· Zero switching time;
· High input power factor;
· Double hot backup;
· DC cold start;
· Automatic start function;
· Automatic testing function;
· Concentrated panel display;
· Advanced numerical control;
· High anti-jamming;
· Can be used with generator;
· Long life power supply design;
· Long life high recharge capacity;
· Bypass protective function;
· Can download monitoring software;
· With intelligent slot
|
Type |
YCA1K/1KS |
YCA2K/2KS |
YCA3K/3KS |
YCA6K/6KS |
YCA10K/20KS |
|
Rated capacity |
1KVA |
2KVA |
3KVA |
6KVA |
10-20KVA |
|
Input |
Voltage |
AC160-276V |
AC176-276V |
AC304-478V |
|
Frequency |
46-55Hz |
|
Power factor |
less than 0.98 |
|
Output |
Voltage |
AC220V(2% more or less) |
AC220V(3% more or less) |
|
Frequency |
same with input(commercial power mode)/50Hz(0.5% more or less) Batter mode |
|
Wave type |
sine wave |
|
Degree of distortion |
(linear load) less than3%, less than5%(non-linear load) |
|
Current peak value ratio |
3:1 |
|
Power factor |
0.7 |
|
Socket type*quality |
socket*2 |
socket*4 |
socket*3 terminals 1 |
terminals |
|
Support time(full load/half load) |
7'/15' |
11'/25' |
7'/17' |
8'/25' |
- |
|
Battery type |
Sealed lead-acid battery |
|
Battery voltage |
DC36V |
DC96V |
DC240V |
|
Switching time |
Zero |
|
Protective function |
over current, over heat, under voltage, over voltage, short circuit, surge |
|
Over capacity |
120% maintain bypass output after 1min |
130% maintain bypass output after 1min |
|
Alarm |
Abnormal commercial power, low battery voltage,overload,automatic faulty alarm or Email and mobile alarm |
|
Indicator lamp |
LED indicator lamp of load, battery, working condition |
|
Communication interface |
RS232+intelligent slot/SNMP with intelligent monitoring function of abnormal commercial power, power off, battery capacity, remote UPS switch, UPS condition indicator. |
|
Noise(1m distance) |
less than 45dB |
less than 55dB |
|
Working condition |
Temperature |
0-40°C |
|
Humidity |
20%-90% |
|
Figure dimension |
145*405*220 |
195*455*330 |
260*555*710 |
340*640*980/
420*640*1200 |
|
Weight(gross/net) |
13/7 |
32/15 |
33/16 |
84/37 |
75/160 |
