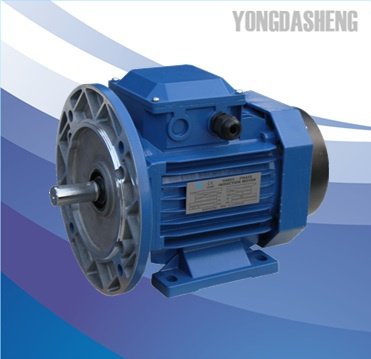

Yds3 Series Ie3 Efficiency Electric Motor

Name: Yds3 Series Ie3 Efficiency Electric Motor
Brand: china-manufacturer-directory.com
SKU: 709608215
Availability: InStock
Rating: 5 (51 reviews)

Supplier:	FUAN PROWELL MOTOR CO., LTD.
Price:	US $ 50/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR

Product Specifications

Prod Model:	YDS3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Efficiency:	Ie3
IP:	55
Class:	F
Im:	B3//B14/B34/B5/B35
PTC:	Opinion
Function:	Control
Number Of Stator:	Three-Phase
Number Of Poles:	2/4/6
Brand:	Yds
Certification:	CE

Product Description

YDS series are of the totally enclosed, three phase squirrel cage type, built to comply with international IEC
and EN standards. Motor conforming to other national and international specifications are also available on request.
All production units are certified to ISO9001 international quality standard as well ISO14000 environ-mental standard
and confirm to all applicable EU Directives.

Designation
to provide standardisation of system with minimal
change to customers

Motor type YDS
1= IE1 or 2 = IE2 or 3 = IE3
A = Aluminum or C = Cast iron
Stator framework centri heights
Stator framework type
Core length
Poles numbers of motors

Comply with IEC/EN Standard
Electrical Mechanical
IEC/EN 60034-1 IEC 60072
IEC/EN 60034-2-1 IEC/EN 60034-5
IEC/EN 60034-30 IEC/EN 60034-6
IEC 60034-8 IEC/EN 60034-7
IEC 60034-12 IEC/EN 60034-9
IEC 60034-14

International Motor Efficiency Standards
A worldwide energy efficiency classification system now exists for low voltage three-phase asynchronous motors. This system increases the level of harmonization in efficiency regulations around the world.
International Electrotechnical Commission (IEC) standard IEC/EN 60034-30:2008 defines energy-efficiency (IE code) classes for single speed, three-phase, 50 and 60Hz induction motors. The standard is part of an effort to unify motor testing procedures and efficiency and product labeling requirements to enable motor purchasers worldwide to easily recognize premium efficiency products. The efficiency levels defined in IEC/EN 60034-30 are based on test methods specified in IEC/EN 60034-2-1:2007.
To promote transparency in the market, IEC 60034-30 states that both the efficiency class and efficiency value must be shown on the motor rating plate and in product documentation. The documentation must clearly indicate the efficiency testing method used as the different methods can produce differing results.

IEC/EN 60034-2-1:2007
IEC/EN 60034-2-1, which came into force in September 2007, introduces new rules concerning the testing methods to be used for determining losses and efficiency.

It offers two ways of determining efficiency: the direct and indirect methods, the direct and indirect methods. The standard specifies the following parameters for determining efficiency using the indirect method:

- Reference temperature
- Three options for determining P (additional load losses): measurement, estimation and mathematical calculation.

The resulting efficiency values differ from those obtained under the previous IEC testing standard, IEC60034-2:1996. It must be noted that efficiency values are only comparable if they are measured using the same method.

Efficiency Testing Standard IEC/EN 60034-2-1:2007
Direct method
Indirect method:
- Measurement: P calculated from load tests
- Estimation: P at 2.5%-1.0% of input power at rated load between 0.1kw and 1000kw
- Mathematical calculation: Eh star - alternative indirect method with mathermatical calculation of P.
Winding losses in stator and rotor determined at
(25'C + actual temperature rise measured)

IEC/EN 60034-30:2008
IEC/EN 60034-30:2008 defines three international Efficiency(IE) classes for single speed, three-phase, cage induction motor.

- IE1 = Standard efficiency (EFF2 in the fomer European classification scheme)
- IE2 = High efficiency (EFF1 in the former European classification scheme and identical to EPAct in the UAE for 60Hz
- IE3 = Premium efficiency (identical to "NEMA Premium in the USA for 60Hz)
- IE4 = A future level above Ie3

Efficiency levels defined in IEC/EN 60034-30 are based on test methods specified in IEC/EN 60034-2-1:2007.

Compared to the former European efficiency classes defined by the CEMEP agreement the scope has been expanded.

IEC/EN 60034-30 covers almost all motors (for example standard, hazadous area,marine, brake motors)

- Single speed, three-phase, 50Hz and 60Hz
- 2,4 or 6pole
- Rated output from 0.75 to 375kW
- Rated voltage Un up to 1000V
- Duty type S1 (continuous duty) or S3 (intermittent periodic duty) with a rated cyclic duration factor of 80% or higher
- Capable of operating direct online.

The following motors are excluded from IEC 60034-30:

- Motors made solely for converter operation.
- Motors completely integrated into a machine (machine, pump, fan or compressor) that cann't be tested separately from the machine.

IE2 YDS series Three Phase Induction Motor

Model	Output		Voltage	Current	Speed	Eff	Power	Start Torque	Start Current	Max Torque	Min Torque
Model	kW	HP	(V)	(A)	(r.p.m)	(%)	Factor	Rating Torque	Rating Current	Rating Torque	Rating Torque

YDS2A/C80A2	0.75	1.0	380	1.8	2890	77.4	0.85	2.2	6.1	2.3	1.5
YDS2A/C80B2	1.1	1.5	380	2.6	2900	79.6	0.86	2.2	6.9	2.3	1.5
YDS2A/C90S2	1.5	2.0	380	3.4	2900	81.3	0.86	2.2	7.0	2.3	1.5
YDS2A/C90L2	2.2	3.0	380	4.8	2930	83.2	0.87	2.2	7.0	2.3	1.4
YDS2A/C100L2	3.0	4.0	380	6.3	2930	84.6	0.89	2.2	7.5	2.3	1.4
YDS2A/C112M2	4.0	5.5	380	8.1	2930	85.8	0.90	2.2	7.5	2.3	1.4
YDS2A/C132SA2	5.5	7.5	380	11.0	2940	87.0	0.90	2.2	7.5	2.3	1.2
YDS2A/C132SB2	7.5	10	380	15.0	2950	88.1	0.90	2.2	7.5	2.3	1.2
YDS2A/C160MA2	11	15	380	21.3	2950	89.4	0.91	2.2	7.5	2.3	1.2
YDS2A/C160MB2	15	20	380	28.7	2970	90.3	0.91	2.2	7.5	2.3	1.2
YDS2A/C160L2	18.5	25	380	34.6	2970	90.9	0.92	2.2	7.5	2.3	1.1
YDS2A/C180M2	22	30	380	40.9	2970	91.3	0.92	2.0	7.5	2.3	1.1
YDS2C200LA2	30	40	380	55.4	2970	92.0	0.92	2.0	7.5	2.3	1.1
YDS2C200LB2	37	50	380	67.7	2980	92.5	0.92	2.0	7.5	2.3	1.1
YDS2C225M2	45	60	380	82.3	2980	92.9	0.92	2.0	7.5	2.3	1.0
YDS2C250M2	55	75	380	101	2980	93.2	0.92	2.0	7.5	2.3	1.0
YDS2C280S2	75	100	380	134	2980	93.8	0.92	2.0	7.0	2.3	0.9
YDS2C280M2	90	125	380	160	2980	94.1	0.93	2.0	7.1	2.3	0.9
YDS2C315S2	110	150	380	195	2980	94.3	0.93	1.8	7.1	2.2	0.9
YDS2C315M2	132	180	380	233	2980	94.6	0.93	1.8	7.1	2.2	0.9
YDS2C315LA2	160	220	380	279	2980	94.8	0.94	1.8	7.1	2.2	0.9
YDS2C315LB2	200	270	380	348	2980	95.0	0.94	1.8	7.1	2.2	0.8
YDS2C355M2	250	340	380	433	2980	95.0	0.94	1.6	7.1	2.2	0.8
YDS2C355L2	315	430	380	544	2980	95.0	0.94	1.6	7.1	2.2	0.8

YDS2A/C80B4	0.75	1.0	380	2.0	1400	79.6	0.78	2.3	6.0	2.3	1.6
YDS2A/C90S4	1.1	1.5	380	2.9	1400	81.4	0.79	2.3	6.0	2.3	1.6
YDS2A/C90L4	1.5	2.0	380	3.7	1400	82.8	0.80	2.3	6.0	2.3	1.6
YDS2A/C100L14	2.2	3.0	380	5.1	1420	84.3	0.83	2.3	7.0	2.3	1.5
YDS2A/C100L24	3.0	4.0	380	6.8	1420	85.5	0.84	2.3	7.0	2.3	1.5
YDS2A/C112M4	4.0	5.5	380	8.8	1440	86.6	0.84	2.3	7.0	2.3	1.5
YDS2A/C132S4	5.5	7.5	380	11.8	1440	87.7	0.85	2.3	7.0	2.3	1.4
YDS2A/C132M4	7.5	10	380	15.5	1440	88.7	0.86	2.3	7.0	2.3	1.4
YDS2A/C160M4	11	15	380	22.3	1460	89.8	0.86	2.2	7.0	2.3	1.4
YDS2A/C160L4	15	20	380	30.0	1460	90.6	0.87	2.2	7.5	2.3	1.4
YDS2A/C180M4	18.5	25	380	36.4	1470	91.2	0.88	2.2	7.5	2.3	1.2
YDS2A/C180L4	22	30	380	43.1	1470	91.6	0.88	2.2	7.5	2.3	1.2
YDS2C200L4	30	40	380	57.4	1470	92.3	0.88	2.2	7.2	2.3	1.2
YDS2C225S4	37	50	380	69.9	1480	92.7	0.89	2.2	7.2	2.3	1.2
YDS2C225M4	45	60	380	84.7	1480	93.1	0.89	2.2	7.2	2.3	1.1
YDS2C250M4	55	75	380	103	1480	93.5	0.89	2.2	7.2	2.3	1.1
YDS2C280S4	75	100	380	140	1480	94.0	0.90	2.2	6.8	2.3	1.0
YDS2C280M4	90	125	380	167	1490	94.2	0.90	2.2	6.8	2.3	1.0
YDS2C315S4	110	150	380	201	1490	94.5	0.90	2.1	6.9	2.2	1.0
YDS2C315M4	132	180	380	240	1490	94.7	0.90	2.1	6.9	2.2	1.0
YDS2C315LA4	160	220	380	287	1490	94.9	0.91	2.1	6.9	2.2	1.0
YDS2C315LB4	200	270	380	359	1490	95.1	0.91	2.1	6.9	2.2	0.9
YDS2C355M4	250	340	380	443	1485	95.1	0.92	2.1	6.9	2.2	0.9
YDS2C355L4	315	430	380	556	1485	95.1	0.92	2.1	6.9	2.2	0.8

YDS2A/C90S6	0.75	1.0	380	2.3	910	75.9	0.74	2.0	5.3	2.1	1.5
YDS2A/C90L6	1.1	1.5	380	3.2	910	78.1	0.75	2.0	5.5	2.1	1.3
YDS2A/C100L6	1.5	2.0	380	3.9	940	79.8	0.77	2.0	5.5	2.1	1.3
YDS2A/C112M6	2.2	3.0	380	5.6	940	81.8	0.78	2.0	6.5	2.1	1.3
YDS2A/C132S6	3.0	4.0	380	7.4	960	83.3	0.78	2.1	6.5	2.1	1.3
YDS2A/C132MA6	4.0	5.5	380	9.7	960	84.6	0.78	2.1	6.5	2.1	1.3
YDS2A/C132MB6	5.5	7.5	380	12.9	960	86.0	0.79	2.1	6.5	2.1	1.3
YDS2A/C160M6	7.5	10	380	16.5	970	87.2	0.79	2.0	6.5	2.1	1.3
YDS2A/C160L6	11	15	380	24.1	970	88.7	0.80	2.0	6.5	2.1	1.2
YDS2A/C180L6	15	20	380	31.5	970	89.7	0.83	2.0	7.0	2.1	1.2
YDS2C200LA6	18.5	25	380	38.5	970	90.4	0.83	2.1	7.0	2.1	1.2
YDS2C200LB6	22	30	380	44.6	970	90.9	0.85	2.0	7.0	2.1	1.2
YDS2C225M6	30	40	380	59.3	980	91.7	0.86	2.0	7.0	2.1	1.2
YDS2C250M6	37	50	380	71.0	980	92.2	0.88	2.1	7.0	2.1	1.2
YDS2C280S6	45	60	380	86.0	980	92.7	0.88	2.1	7.0	2.0	1.1
YDS2C280M6	55	75	380	105	980	93.1	0.88	2.1	7.0	2.0	1.1
YDS2C315S6	75	100	380	141	990	93.7	0.88	2.0	6.7	2.0	1.0
YDS2C315M6	90	125	380	169	990	94.0	0.88	2.0	6.7	2.0	1.0
YDS2C315LA6	110	150	380	206	990	94.3	0.88	2.0	6.7	2.0	1.0
YDS2C315LB6	132	180	380	244	990	94.6	0.89	2.0	6.7	2.0	1.0
YDS2C355MA6	160	220	380	292	990	94.8	0.90	1.9	6.7	2.0	1.0
YDS2C355MB6	200	270	380	365	990	95.0	0.90	1.9	6.7	2.0	0.9
YDS2C355L6	250	340	380	455	990	95.0	0.90	1.9	6.7	2.0	0.9


IE3 YDS series Three Phase Induction Motor

Model	Output		Voltage	Current	Speed	Eff	Power	Start Torque	Start Current	Max Torque	Min Torque
Model	kW	HP	(V)	(A)	(r.p.m)	(%)	Factor	Rating Torque	Rating Current	Rating Torque	Rating Torque

YDS3A/C80A2	0.75	1.0	380	1.8	2890	80.7	0.85	2.2	6.1	2.3	1.5
YDS3A/C80B2	1.1	1.5	380	2.6	2900	82.7	0.86	2.2	6.9	2.3	1.5
YDS3A/C90S2	1.5	2.0	380	3.4	2900	84.2	0.86	2.2	7.0	2.3	1.5
YDS3A/C90L2	2.2	3.0	380	4.8	2930	85.9	0.87	2.2	7.0	2.3	1.4
YDS3A/C100L2	3.0	4.0	380	6.3	2930	87.1	0.89	2.2	7.5	2.3	1.4
YDS3A/C112M2	4.0	5.5	380	8.1	2930	88.1	0.90	2.2	7.5	2.3	1.4
YDS3A/C132SA2	5.5	7.5	380	11.0	2940	89.2	0.90	2.2	7.5	2.3	1.2
YDS3A/C132SB2	7.5	10	380	15.0	2950	90.1	0.90	2.2	7.5	2.3	1.2
YDS3A/C160MA2	11	15	380	21.3	2950	91.2	0.91	2.2	7.5	2.3	1.2
YDS3A/C160MB2	15	20	380	28.7	2970	91.9	0.91	2.2	7.5	2.3	1.2
YDS3A/C160L2	18.5	25	380	34.6	2970	92.4	0.92	2.2	7.5	2.3	1.1
YDS3A/C180M2	22	30	380	40.9	2970	92.7	0.92	2.0	7.5	2.3	1.1
YDS3C200LA2	30	40	380	55.4	2970	93.3	0.92	2.0	7.5	2.3	1.1
YDS3C200LB2	37	50	380	67.7	2980	93.7	0.92	2.0	7.5	2.3	1.1
YDS3C225M2	45	60	380	82.3	2980	94.0	0.92	2.0	7.5	2.3	1.0
YDS3C250M2	55	75	380	101	2980	94.3	0.92	2.0	7.5	2.3	1.0
YDS3C280S2	75	100	380	134	2980	94.7	0.92	2.0	7.0	2.3	0.9
YDS3C280M2	90	125	380	160	2980	95.0	0.93	2.0	7.1	2.3	0.9
YDS3C315S2	110	150	380	195	2980	95.2	0.93	1.8	7.1	2.2	0.9
YDS3C315M2	132	180	380	233	2980	95.4	0.93	1.8	7.1	2.2	0.9
YDS3C315LA2	160	220	380	279	2980	95.6	0.94	1.8	7.1	2.2	0.9
YDS3C315LB2	200	270	380	348	2980	95.8	0.94	1.8	7.1	2.2	0.8
YDS3C355M2	250	340	380	433	2980	95.8	0.94	1.6	7.1	2.2	0.8
YDS3C355L2	315	430	380	544	2980	95.8	0.94	1.6	7.1	2.2	0.8

YDS3A/C80B4	0.75	1.0	380	2.0	1400	82.5	0.78	2.3	6.0	2.3	1.6
YDS3A/C90S4	1.1	1.5	380	2.9	1400	84.1	0.79	2.3	6.0	2.3	1.6
YDS3A/C90L4	1.5	2.0	380	3.7	1400	85.3	0.80	2.3	6.0	2.3	1.6
YDS3A/C100L14	2.2	3.0	380	5.1	1420	86.7	0.83	2.3	7.0	2.3	1.5
YDS3A/C100L24	3.0	4.0	380	6.8	1420	87.7	0.84	2.3	7.0	2.3	1.5
YDS3A/C112M4	4.0	5.5	380	8.8	1440	88.6	0.84	2.3	7.0	2.3	1.5
YDS3A/C132S4	5.5	7.5	380	11.8	1440	89.6	0.85	2.3	7.0	2.3	1.4
YDS3A/C132M4	7.5	10	380	15.5	1440	90.4	0.86	2.3	7.0	2.3	1.4
YDS3A/C160M4	11	15	380	22.3	1460	91.4	0.86	2.2	7.0	2.3	1.4
YDS3A/C160L4	15	20	380	30.0	1460	92.1	0.87	2.2	7.5	2.3	1.4
YDS3A/C180M4	18.5	25	380	36.4	1470	92.6	0.88	2.2	7.5	2.3	1.2
YDS3A/C180L4	22	30	380	43.1	1470	93.0	0.88	2.2	7.5	2.3	1.2
YDS3C200L4	30	40	380	57.4	1470	93.6	0.88	2.2	7.2	2.3	1.2
YDS3C225S4	37	50	380	69.9	1480	93.9	0.89	2.2	7.2	2.3	1.2
YDS3C225M4	45	60	380	84.7	1480	94.2	0.89	2.2	7.2	2.3	1.1
YDS3C250M4	55	75	380	103	1480	94.6	0.89	2.2	7.2	2.3	1.1
YDS3C280S4	75	100	380	140	1480	95.0	0.90	2.2	6.8	2.3	1.0
YDS3C280M4	90	125	380	167	1490	95.2	0.90	2.2	6.8	2.3	1.0
YDS3C315S4	110	150	380	201	1490	95.4	0.90	2.1	6.9	2.2	1.0
YDS3C315M4	132	180	380	240	1490	95.6	0.90	2.1	6.9	2.2	1.0
YDS3C315LA4	160	220	380	287	1490	95.8	0.91	2.1	6.9	2.2	1.0
YDS3C315LB4	200	270	380	359	1490	96.0	0.91	2.1	6.9	2.2	0.9
YDS3C355M4	250	340	380	443	1485	96.0	0.92	2.1	6.9	2.2	0.9
YDS3C355L4	315	430	380	556	1485	96.0	0.92	2.1	6.9	2.2	0.8

YDS3A/C90S6	0.75	1.0	380	2.3	910	78.9	0.74	2.0	5.3	2.1	1.5
YDS3A/C90L6	1.1	1.5	380	3.2	910	81.0	0.75	2.0	5.5	2.1	1.3
YDS3A/C100L6	1.5	2.0	380	3.9	940	82.5	0.77	2.0	5.5	2.1	1.3
YDS3A/C112M6	2.2	3.0	380	5.6	940	84.3	0.78	2.0	6.5	2.1	1.3
YDS3A/C132S6	3.0	4.0	380	7.4	960	85.6	0.78	2.1	6.5	2.1	1.3
YDS3A/C132MA6	4.0	5.5	380	9.7	960	86.8	0.78	2.1	6.5	2.1	1.3
YDS3A/C132MB6	5.5	7.5	380	12.9	960	88.0	0.79	2.1	6.5	2.1	1.3
YDS3A/C160M6	7.5	10	380	16.5	970	89.1	0.79	2.0	6.5	2.1	1.3
YDS3A/C160L6	11	15	380	24.1	970	90.3	0.80	2.0	6.5	2.1	1.2
YDS3A/C180L6	15	20	380	31.5	970	91.2	0.83	2.0	7.0	2.1	1.2
YDS3C200LA6	18.5	25	380	38.5	970	91.7	0.83	2.1	7.0	2.1	1.2
YDS3C200LB6	22	30	380	44.6	970	92.2	0.85	2.0	7.0	2.1	1.2
YDS3C225M6	30	40	380	59.3	980	92.9	0.86	2.0	7.0	2.1	1.2
YDS3C250M6	37	50	380	71.0	980	93.3	0.88	2.1	7.0	2.1	1.2
YDS3C280S6	45	60	380	86.0	980	93.7	0.88	2.1	7.0	2.0	1.1
YDS3C280M6	55	75	380	105	980	94.1	0.88	2.1	7.0	2.0	1.1
YDS3C315S6	75	100	380	141	990	94.6	0.88	2.0	6.7	2.0	1.0
YDS3C315M6	90	125	380	169	990	94.9	0.88	2.0	6.7	2.0	1.0
YDS3C315LA6	110	150	380	206	990	95.1	0.88	2.0	6.7	2.0	1.0
YDS3C315LB6	132	180	380	244	990	95.4	0.89	2.0	6.7	2.0	1.0
YDS3C355MA6	160	220	380	292	990	95.6	0.90	1.9	6.7	2.0	1.0
YDS3C355MB6	200	270	380	365	990	95.8	0.90	1.9	6.7	2.0	0.9
YDS3C355L6	250	340	380	455	990	95.8	0.90	1.9	6.7	2.0	0.9

FUAN PROWELL MOTOR Co., Ltd., a Key enterprise of electric machinery territory, assembling exploitation, manufacture, marketing into one whole was established in 1999. To remain invincible in domestic and international competitions, we have to persist in our own principle. With manpower demand, Pioneering innovation, consummate management, mutual benefit as enterprise's conception, with high quality, reasonable price, honesty and credit as our terminal goal.

With the development of business trade and great effort on research and improvement, we have formed the foundation-stone for the today's product range including three core product lines. They are specialized in producing A. C. Generators, Diesel Generator and Motors. All of them adopted the topmost quality materials, updated designs and met the IEC standard.

The marketing target of reasonable price made us owning the comprehensive recognition and reliability from the worldwide customers. Our marketing shares are covering all over the world, such as South-East Asian, European Union, Poncho, Canada, America and Hong Kong.

Since the founding of FUAN PROWELL MOTOR Co., Ltd., we have spared no effort to promote the common development and progress of business relationship for our sincere trade companions both at home and abroad.

Therefore, my esteemed Guests and Friends, We would always at your services and try our bests for your esteemed order
