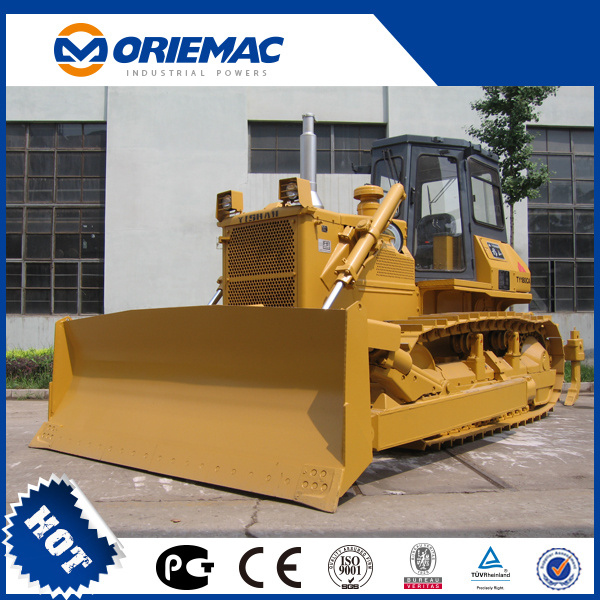

Yishan Bulldozer Ty180 for Sale

Name: Yishan Bulldozer Ty180 for Sale
Brand: china-manufacturer-directory.com
SKU: 775105425
Availability: InStock
Rating: 4.7 (64 reviews)

Supplier:	Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Price:	US $ 72500-73000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	TY180
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Model:	Cummins Nt855-C280s10/ Shangchai Sc11CB200g2b1/ We
Flywheel Horsepower:	180HP
Max.Digging Depth (mm):	572
Max.Lift (mm):	702
Shank Of Distance (mm):	950
Weight (Kg):	1700
Pump Type:	Gear Pump 07441-67503
Working Pressure (MPa):	13.7
Width Of Track Shoes (mm):	510
Pitch (mm):	203.2
Type:	Medium-sized Loader
Walking Mode:	Crawler
Load And Unload Method:	Front Discharge
Certification:	ISO9001: 2000
Condition:	New

Product Description

Welcome to Oriemac!

As authorized dealer,we offer full kinds of construction machinery made by Chinese famous factory,including XCMG,SDLG,CHANGLIN,FOTON,LIUGONG,CHENGGONG.
Being in this line for 8 years ,we have exported thousands of products.You will get the
best service here and high quality products with competitive price!
Please contact us if you have any questions about the products.

Contact Person:Betty Ding
Mobile: +86-182-2104-5926

SPECIFICATION	WORK EQUIPMENT
Specification/Blade type Straight-tilt Angle U-Blade	Blade type Straight-tilt Angle U-Blade
Operating Weight (kg) 18800 19000 19200	Blade Capacity (m3) 4.5 4.3 8.6
Operating Weight (kg) 400 400 400	Blade Width X Height(mm) 3416×1149/3970×1050/4064×1386
Min.Turning Radius (m) 3.3 3.3 3.3	Max.Lift (mm) 1124 1250 1250
Ground Pressure (MPa) 0.069 0.070 0.071	Max.Depth (mm) 584 545 545
Track Gauge (mm) 1880 1880 1880	Max.tilt Adjustment (mm) ≥860 ≥400 ≥400
Max. Pulling Force (KN) 147.2 147.2 147.2	Pitch Adjustment ( ° ) 55 55 55
Grade Ability (°) 30 30 30	Capability(m3/H)(Theoretical value 40m) 297.4 /297.4/297.4
TRAVEL SPEED	Weight Of Blade (kg) 2450 2550 2650
1st 2nd 3rd	COOLANT AND LUBRICANT CAPACITY
Forward (km) 0~3.9 0~6.8 0~10.9	Fuel Tank Capacity (L).....................................................................320
Reverse (km) 0~5.0 0~8.6 0~13.7	Hydraulic Tank Capacity (L).............................................................108
ENGINE	Engine oil Capacity (L).......................................................................45
Model & Type Cummins NT855-C280S10/ Shangchai SC11CB200G2B1/ Weichai WD10G200E25, 6-cylinder, in-line, vertical. water-cooled, 4-stroke-cycle, turbo-charged, over valve directs injection	Torque Converter ,Transmission, Bevel Gear., Steering Clutch Capacity (L)...................................................................................122
Rated Revolution (rpm) ........................................................... 1850	Final Drive Capacity (L) .................................................33(each side)
Flywheel Horsepower (HP) ........................................................... 180	RIPPER(OPTIONAL)
Cummins:6-139.7X 152.4	3-Shank Ripper:
Cylinder Number-BoreX Stroke (mm) Shangchai:6-120.6X 152.4	Max.Digging Depth (mm) ............................................................... 572
Weichai:6-126X 130	Max.Lift (mm) .................................................................................. 702
Piston Displacement (L) ..... Cummins:14 Shangchai:10.5 Weichai:9.73	Shank Of Distance (mm) .................................................................950
Min. Fuel Consumption (g/kW.h) Cummins:212 Shangchai:220 Weichai:218	Weight (kg) ...................................................................................... 1700
Max.Torque (Nm/rpm) Cummins:877/1250 Shangchai:870/1200 Weichai: 920/1100	OVERALL DIMENSIONS
Starting Method........................................Starting motor 24V 7.5kW	Straight-tilt Blade Dimensions
POWER TRANSMISSION SYSTEM	Note: Materials and specifications are subject to change without notice.
Torque Converter ............................ 3-element,1-stage,1-phase
Transmission Planetary gearing, hand-manipulated, hydraulic shift, forced lubrication,3 forward and 3 reverse speeds
Bevel Gear.........Spiral bevel gear, splash lubrication, single-stage speed reduction
Steering Clutch................................. Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control
Steering Brake ...... Wet, band type, pedal hydraulic booster, with parking brakes
Final Drive .............Double reduction of spur gear, splash lubrication
HYDRAULIC SYSTEM
Pump Type............................................ Gear pump 07441-67503
Working Pressure (MPa).................................................................13.7
System Discharge (L/min)..........250(at revolution of 1850rpm)
Working Cylinder type...........................Double-acting piston type
Working Cylinder Lift Number-BoreXRodXStroke (mm).............. 2-110X65X1026
Working Cylinder Tilt BoreXRodXStroke (mm).........160X70X140
UNDERCARRIAGE SYSTEM
Type ................ Swing type of sprayed beam, suspended structure of equalizer bar
Carrier Rollers............................................................ 2(each side)
Track Rollers......... 7/each side (4-single flange, 3-double flange)
Track Type............................. Sealed, assembled single- grouser
Number Of Track Shoes............................................... 39(each side)
Width Of Track Shoes (mm) .......................................................... 510
Pitch (mm) .................................................................................... 203.2
Length Of Track 0n Ground (mm)...............................................2635
