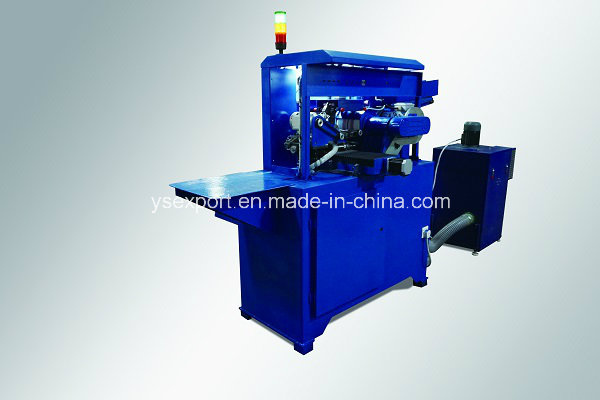

YJGM-A Roller Grinding Machine Specifications:
high precision mainshaft and 200mm wide imported grinding wheel, roller radially cut when grinding, the dimensional precision and surface roughness are far beyond the traditional grinding way.
2. From feeding, clamping, grinding and blanking, the entire process is without man operation, thus fault alarmed, diagnosised, displayed and storaged automatically.
3.With automatic cleaning function of grinding wheel by timing, it is flexible for customers to set time space by requirement. It also has the grinding wheel dressing device as well as the timing dressing prompt facility.
4.With a grinding program, memory and storage functions, the HMI makes it much more simpler to operate.
5.The complete equipment operation safety function is able to adapt 24 consecutive hours of work.
6. According to roller hardness standards, the roller material and the roller surface roughness required by the spinning mills, different grinding programs can be designed individually in order to meet the special requirements of different products.
7. Configured with the efficient dust collection equipment, it aims to ensure clear the roller surface effectively also reduce the roller surface heat accumulation when working.
Application:
Used for textile industry on roving frame, spun yarn roller grinding.
Technical Parameters:
1.Grinding Scope: Maximum Roller Diameter :45mm
Minimum Roller Diameter :25mm
Maximum Core Diameter :190mm
2.Grinding Wheel: Diameter : 200mm
Length : 200mm
Rotating Speed: 2800rpm
3.Grinding Precision: Roller Cylindricity: ≤0.015mm
Roller Diameter Tolerance: +0.015mm
Circular Run-Out: 0.01mm
Surface Roughness: Ra0.6-Ra1.0
4.Total Power: 4.7KW
5.Energy :Compressed Air: <8bar
Power : Three-Phase380V
6.Capacity :1500pcs/shift
