Product Specifications
| Prod Model: |
YJJ |
| Pressure: |
3000 Psi |
| End Fittings: |
Cross Tube |
| Material: |
Steel |
| Structure: |
Piston Cylinder |
| Power: |
Hydraulic |
| Standard: |
Standard |
| Pressure Direction: |
Double-acting Cylinder |
Product Description

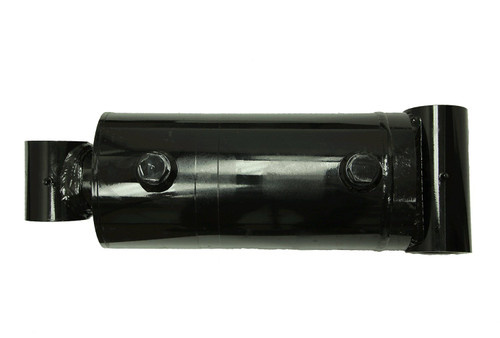

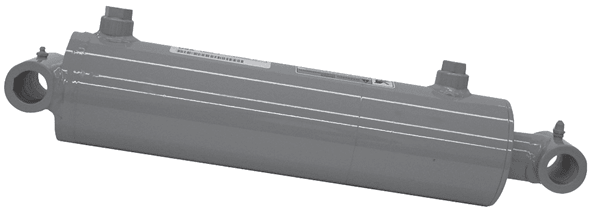

FEATURES:
？ Welded construction
？ Chromed, ground, and polished piston rod
？ Skived tubing
？ Ductile iron piston & thread-in Ductile iron gland
？ Teflon cap seal & wear ring on piston
？ Urethane u-cup, metal encased wiper, & wear ring on
piston rod
？ Crosstube end fittings with grease zerks
？ Painted: Gloss black
？ 3000 PSI maximum operating pressure
？ 3000 PSI maximum peak spike pressure
Sichuan Yuanju Machinery Co., Ltd. Has dedicated itself to manufacture a wide range of hydraulic cylinder covering tie rod cylinders, welded cylinders and custom-made cylinders. We have been supplying our cylinders to European and United State for many years with top quality and competitive price.
Our capacity:
SAE, NPT, NPTF, BSP, Ports available.
Custom-Made cylinders and components available
Cylinder Range:
Bore: 18mm - 800mm (0.75" ~24")
Stroke: 100mm - 8000mm. (4" ~315")
"quality first, customer foremost" is our goal. We expect to work with customers home and abroad to set up long term and win-win business!
