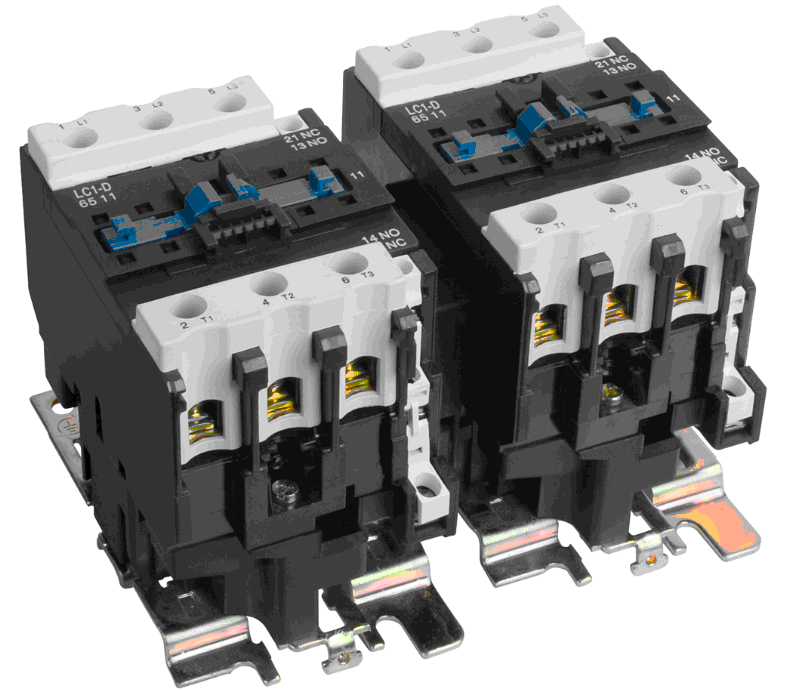

Ylc2-D/F Series Mechanical Interlocking Contactor

Name: Ylc2-D/F Series Mechanical Interlocking Contactor
Brand: china-manufacturer-directory.com
SKU: 743939015
Availability: InStock
Rating: 4.8 (77 reviews)

Supplier:	Yueqing Langheng Electrical Technology Co., Ltd.
Price:	US $ 26/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LC2-D65
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current(a):	24
Rated Voltage:	220V-380V
Electric Life(Ten Thousand Times):	15
Protective Characteristics:	Enclosed Rlay
Load:	High Power Relay
Theory:	Thermal Relay
Size:	Miniature
Usage:	Household Appliances Relay, Communication Relay
Action Principle:	Electromagnetic Type

Product Description

Application The contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 660Hz controlling the moter .It's mechanical interlocking device ensures contact changeover of the two convertible contactors .

Size:YLC2-D/F	Maximum rated voltage	Maximum thermal current 1 th	Maximum rated current LL:NORMAL life 3ph 440V 50/60Hz	Maximum standard power rating under AC 3 duty
				220V		380V		415V/440V
				KW	hp	Kw	hp	Kw	hp
115N	1000V	200A	-	-	-	-	-	-	-
115N	1000V	200A	NL120A	30	40	55	75	60	80
1154N	1000V	200A	LL115A	30	40	55	75	60	80
1154N	1000V	200A	NL150A	45	60	75	100	80	110
185N	1000V	270A	-	-	-	-	-	-	-
185N	1000V	270A	NL185A	55	75	90	125	100	135
1854N	1000V	270A	LL185A	55	75	90	125	100	135
1854N	1000V	270A	NL205A	63	85	110	150	110	150
365N	1000V	350A	-	-	-	-	-	-	-
365N	1000V	350A	NL265A	75	100	132	180	140	190
3654N	1000V	350A	LL265A	75	100	132	180	140	190
3654N	1000V	350A	NL300A	90	125	160	220	160	220
400N	1000V	500A	-	-	-	-	-	-	-
400N	1000V	500A	NL400A	110	150	200	270	220	300
4004N	1000V	500A	LL400A	110	150	200	270	220	300
4004N	1000V	500A	NL450A	132	180	220	300	250	340
500N	1000V	700A	LL500A	147	200	250	340	280	380
500N	1000V	700A	NL630A	185	250	335	450	355	480
630N	1000V	1000A	LL630A	200	270	335	450	355	480
630N	1000V	1000A	NL1000A	220	300	400	540	450	610
780N	1000V	1600A	NL800A	220	300	400	540	450	610
780N	1000V	1600A	LL780A	280	380	500	680	530	720
