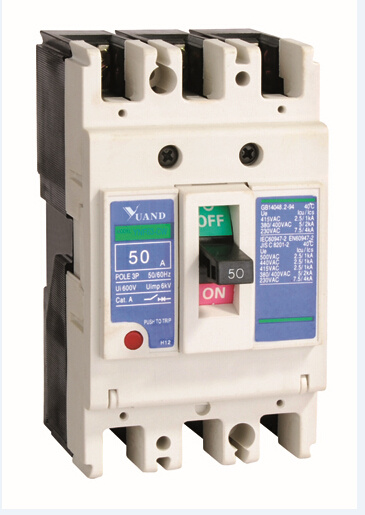

Ynf-Cw Moulded Case Circuit Breaker

Name: Ynf-Cw Moulded Case Circuit Breaker
Brand: china-manufacturer-directory.com
SKU: 748086155
Availability: InStock
Rating: 5 (57 reviews)

Supplier:	Yueqing Langheng Electrical Technology Co., Ltd.
Price:	US $ 2-2.5/Piece
Min Order:	240/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	YNF-63CW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Poles:	3p
.Rated Current(a):	6,10,16,20,25 ,30,40,50,63
Frame Rated Current Lnm(a):	50
Rated Voltage(V):	250V
Rated Frequency:	AC 50/60Hz
Arc-extinguishing Medium:	Air
Structure:	MCCB
Breaking Capacity:	Low Voltage Circuit Breakers
Poles Number:	3
Certification:	CCC
Operation:	Manual Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker

Product Description

Application YNE-CW moulded case circuit breaker is available in three ranges,standard.hi-break.The performance of the YNF-CW MCCB range is the result of extensive designed&developmen-utilizing AAD accredited test station.The current limiting action of YNF-CW MCCBs provides low values of left-through energy.Full information for this and time/current characteristic curves are both available to provide more information.

Frame rated current lnm(A)			30	50	125	250
Type			YNF30-CW	YNF63-CW	YNF125-CW	YNF250-CW
Rated current In(A)40 o C			6,10,16,20,25,32	6,10,16,20,25 ,30,40,50,63	60,75,100,125	125,150,175, 225,250
Reference ambient temperature
Number of poles			3	3	3	3
Max rated service		AC	690	690	690	690
Voltage Ui(V)		DC	250	250	250	250
Dimensions andmounting details		a	75	75	90	105
		b	130	130	130	140
		c	68	68	61	61
		ca	90	90	88	92
		bb	110	110	110	126
		aa	25	25	30	35
Dimen-sions andm-ounting details	GB14048-2 AC(No symmetry value/symmetry value)	500v 600v	7.5/4	5	5/3	10
		440v 480v	10/5	7.5/4	30/15	15
		380v	10/5	10/5	50/25	18
		220v 240v	25/13	10/5	50/25	30
	IEC60/947-2 lcu AC	500v	7.5/4	25/13	100/50	-
		440v	10/5	7.5/4	30/15	-
		415v	10/5	10/5	50/25	1.5/1.5
		380v	10/5	10/5	50/25	1.5/1.5
		240v	25/13	25/13	100/50	2.5/2
	DC	250v	7.5/4	7.5/4	40/20	-
	DC	125v	-Press terminal	-	-	-
Connection way						Press terminal

Wenzhou Yuanda Electrical Equipment Co., Ltd was formed in 1989. Is located in the largest manufacturing base of low-voltage electric equipment of China Liushi-"ELECTRIC DEVICE METEROPOLIS OF China". We are only about 25 Kilometers far from the WENZHOU airport and Railway Station. It is very convenient to connect with the world whether by air, by land or by sea. The company covers more than 10, 000 squre meters, Has qualified employees about 600, "We are growing sgtonger every day".

Our company is a specialized enterprise of manufacturing pure electomagnetic type mini Circuit Breaker(MCB), Earth Leakage Circuit Braker(ELCB), Moulded Case Circuit Breaker(MCCB), Power Supply, AC/DC Contactor, Relay, Starter and other electrical components. We can engage in import & export trade by ourselves, All of our products conform to the standards of IEC1008, IEC898, VDF0664, BS4293, and IEC1009 etc, and have got CE, CB, UL, CCC, RoHS Approvals and testing reports. And we have got theISO9002 International Quality System.

We accept OEM and small trial orders, Contact us now for more imformation. All inquiries will be replied with in 24 hours. We also cordially welcome all cilients to orders with us by any means of communication.

"YuanDa People"insist that Quality First. Client First, Credit First!
