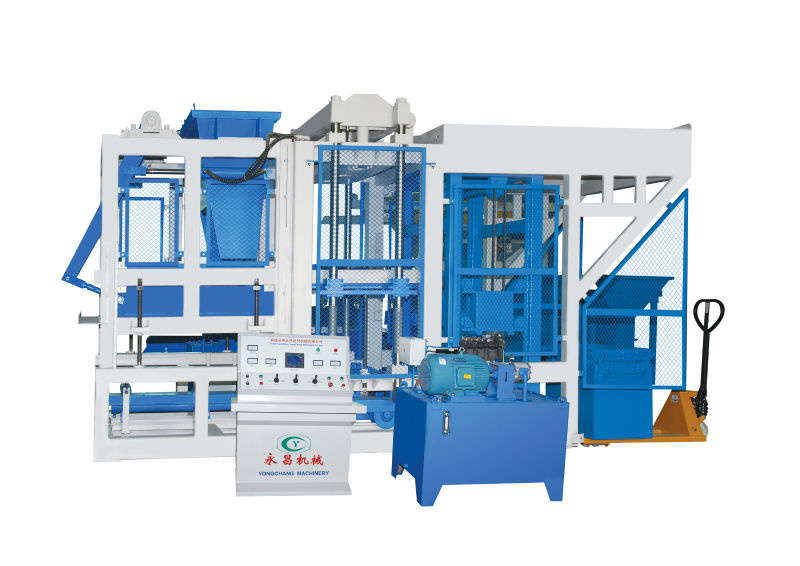

Yongchang Qt4 Automatic Hydraulic Cement Block Machinery

Product Specifications

Prod Model:	QT4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automation:	Automatic
Processing:	Brick Production Line
Method:	Hydraulic Pressure
Product:	Brick
Condition:	New
Brick Raw Material:	Coal Gangue, Flyash, Sand, Breakstone, Cement, Concrete
Tolerance:	0
Product Name:	Lifetime
Control System:	Siemens Full Automatic PLC Control
The Capacity Of Standard Block:	50, 000 PCS/Day for 240*115*50mm
Certification:	ISO9001: 2000, Gmc TUV
Type:	Block Making Machine

Product Description

Yongchang Qt4 automatic Hydraulic cement block machinery


Technical parameters of brick making machine:

CE, ISO9001, TUV certified Automatic brick machine

Siemens or Panasonic Control System

Exciting Force: 40 KN

Total Power: 25.5 KW

Frame Dimimension: 12550X2210X1900 mm

Pallet Size: 860X680X20 mm

Forming cycle: 15-20 Seconds

Vibration Frequency: 4000-5600 Rolls/minute (adjustable)

Molding Method: Automatic charging, vibrating and pressing

Control Mode: Full automatic PLC control

Raw Materials: Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

Applied Products: Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Applied Fields: Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.

Main features:

1. Mature technology. We are the professional manufacturer for Automatic Brick Machine since1998
2. The highest stability, the lowest fault rate. Our factory pursue the stability during the block's production, we test and adjust the machine many times before shipping out of our workshop.
3. Import the Germany Frequency Conversional Control. Adopt the Siemens PLC Control system. Using the frequency conversional control to protect the electric machinery.
4. Break arch feeding device, uniform feed. Creative shake absorbsion and noise cancellation.
5. All-in-one multifunctional machine with cost saving perfomance.
----------------------------------
Tel: 0086-595-86650578
Mobile Phone: 0086-15359309818 (24hours)
Fax: 86-595-86657765
Address: Caobu Industrial Zone, Kanmei Town, Nan' An, QuanZhou City, Fujian Province, China.

Production Capacity of  High Yielding Block Making Machine
Items	Size(LxWxH)	Pcs./mould	Pcs./hour	Pcs./8hour
Hollow Block	400x200x200	4	576	4,608
Porous Bricks	240x115x90	12	1,728	13,824
Dimension Bricks	240x115x53	24	3,456	27,648
HollandBlock	200x100x60	14	2,016	29,952
Note: The forming cycle is 15-20 seconds per pallet,above capacity we counted by average 20 seconds per pallet. the production capacity is affected by material,brick size and other factors.

Production Capacity of High Yielding Block Making Machine
Model	Product	Size (mm)	Pcs/Mould	Pcs/Hours
QT6 Machine	Hollow block	390x190x190	6	1440
	Porous brick	240x115x90	15	3600
	Standard brick	240x115x53	30	7200
	Standard brick	240x115x50	32	7680
	Holland block	200x100x60	21	5040
	Paving stone	200x100x60/80/100	24	5760
	Colored Paving brick	225x112.5x D	15	3600
QT8 Machine	Hollow block	390x190x190	8	1920
	Porous brick	240x115x90	18	4320
	Standard brick	240x115x53	39	9360
	Standard brick	240x115x50	42	10080
	Holland block	200x100x60	24	5760
	Paving stone	200x100x60/80/100	32	7680
	Colored Paving brick	225x112.5x D	21	5040
QT10 Machine	Hollow block	390x190x190	10	2400
	Porous brick	240x115x90	27	6480
	Standard brick	240x115x53	59	14160
	Standard brick	240x115x50	69	16560
	Holland block	200x100x60	40	9600
	Paving stone	200x100x60/80/100	44	10560
	Colored paving brick	225x112.5x D	28	6720
Note: Brick size could be customized.The production capacity is affected by material,brick size and other factors. Machine could be customized,we have also QT4 Machine,QT12 Machine,QT1500,QET3000 etc,the relevant data is available upon your request.
