Your Right Choice for Small Wheel Loader--CS920

Name: Your Right Choice for Small Wheel Loader--CS920
Brand: china-manufacturer-directory.com
SKU: 701480322
Availability: InStock
Rating: 5 (129 reviews)

Supplier:	Linyi Huaya Machinery Co., Ltd.
Price:	US $ 13500-16500/Piece
Min Order:	1SET
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CS920
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Caise
Colour:	Paint as Your Wish
Tyre:	Big Tyre
Type:	Wheel Excavator
Size:	Medium-Sized
Certification:	CE
Condition:	New

Product Description

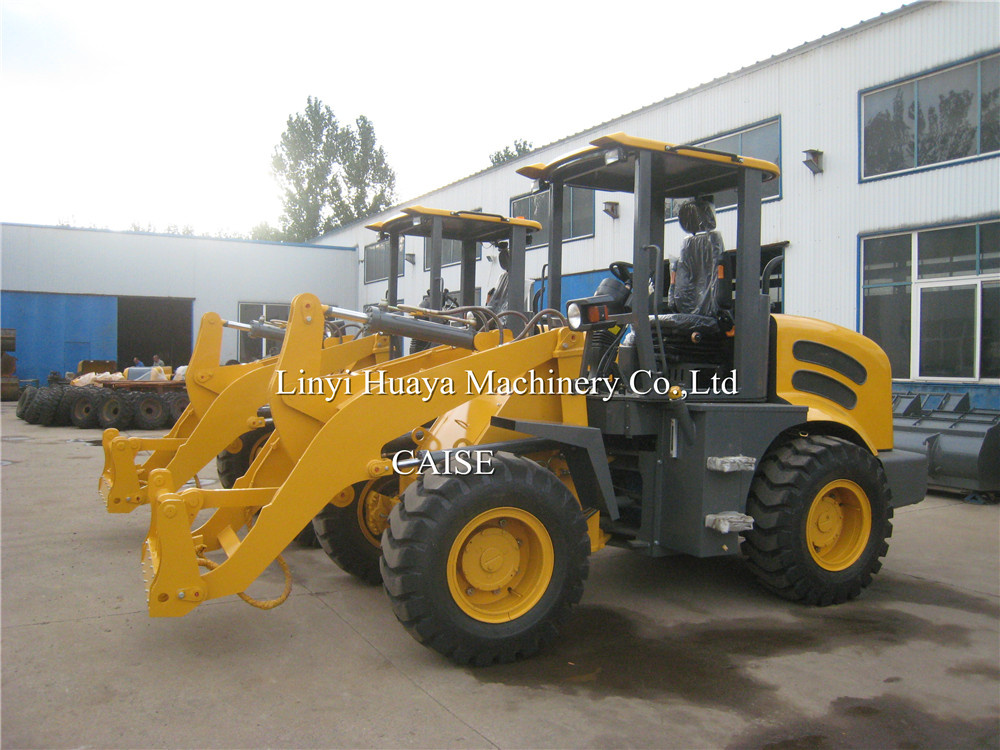

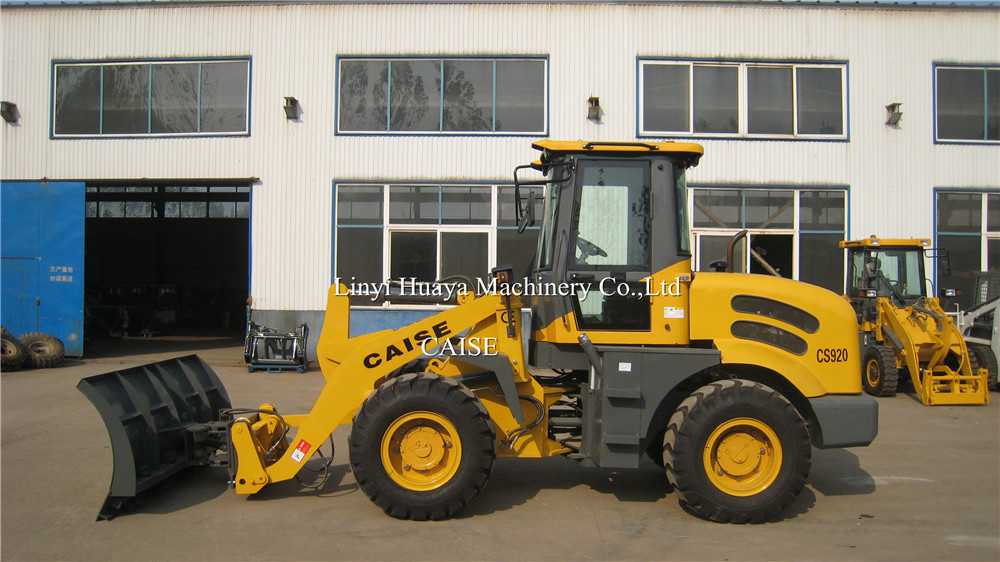

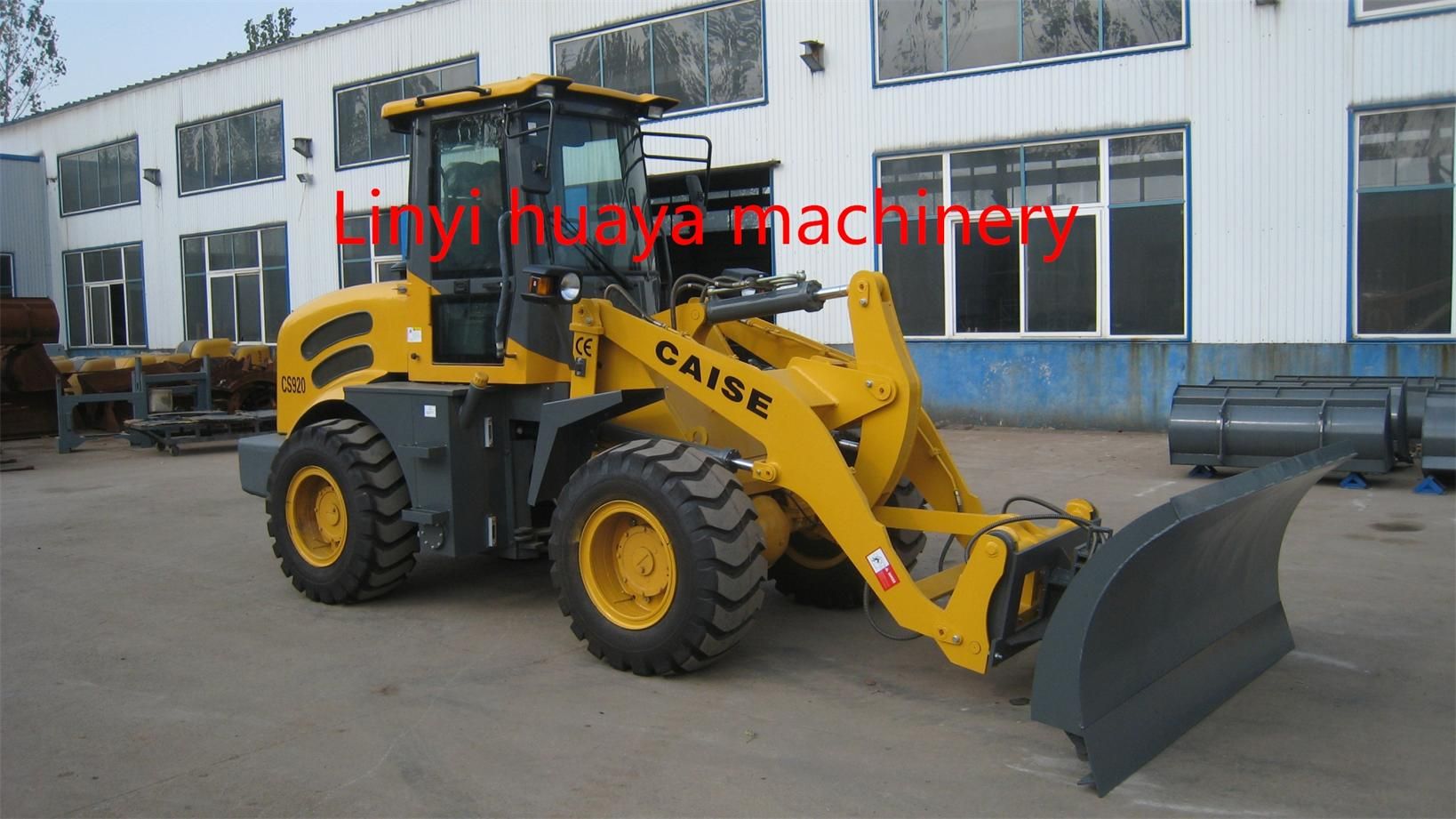

CS920 wheel loader: More powerful, more energetic and move vigorous.
1. Front frame with a small slant angle, thicker arm and high power engine guarantess energetic power.
2. Hydrostatic transmisson: Smooth transmissonnlittle noise and hign transmisson ratio.

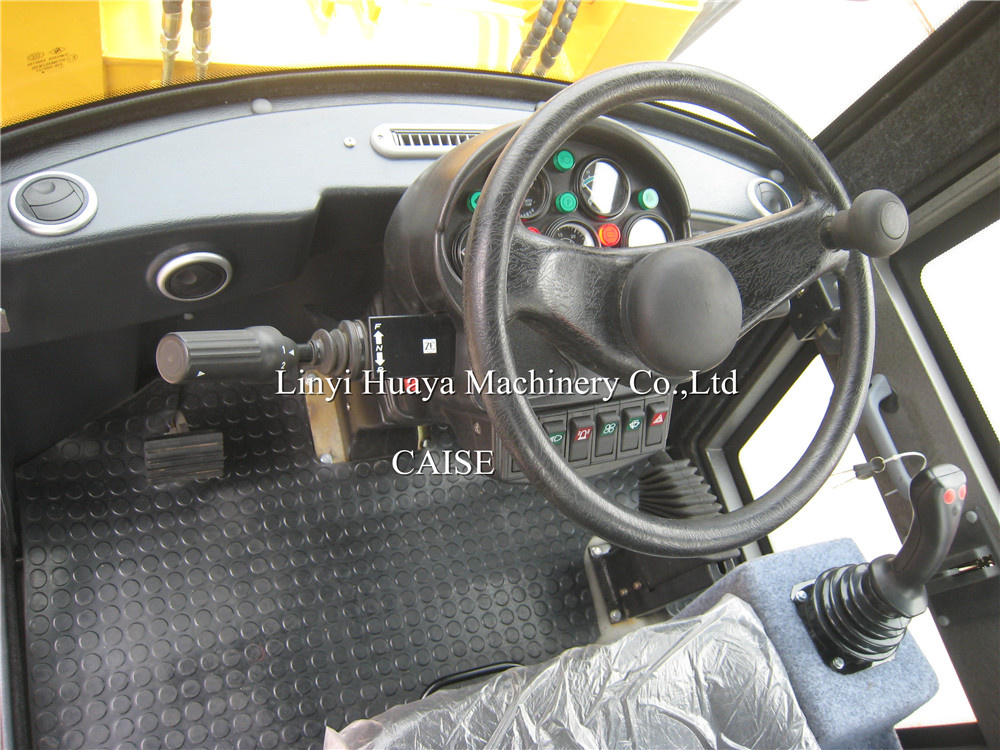

3. Luxury cabin.
The seat could be mive forward, backward, upward and downward to adjust the sapce to increase driving comfort.
The regulating knob on the left side of the seat could anjust the seat elasticity according to driver's weight, therefore meeting ergonomic requirments.
Seat belt, fire extinguisher, E4 approved glass and FOPS/ROPS cabin(Optional) guatantee more safety when emergency happens.

Item	Specification	Item	Specification
Kerb weight	5650 kg	Max. speed	20km/h
Rated bucket capacity	1.0m³	DRIVE AXLE
Rated load	2000 kg	Main transmission type	Spiral gear, first stage deceleration
Max. tractive force	32 kN	Final decelerate type	First stage, planetary gear decelerate
Max. breakout force	36 kN	TYRE
Max. gradeability	30%	Type specification	16/70-20 HD width 400mm
Max. dumping height	2730 mm	STEERING SYSTEM
Dumping distance	861 mm	Type	Articulated load-sensing hydraulic steering system
Overall dimension(LWH)	538719052778mm	Steering angle	32°
ENGINE		Min. turning radius	4548mm
Model	LR4B-G90A	HYDRAULIC SYSTEM
Type	Inline, direct injection, water cooling	System working pressure	28MPa
Rated power	60 kW	Lifting time	4.5s
Rated speed	2400 r/min	Total time	10s
Optional	Cummins B3.3	BRAKE SYSTEM
Rated speed	2200 r/min	Service brake	Mechanical internal expanding shoe-type
TRANSMISSION SYSTEM		Parking brake	Manual internal expanding shoe-type
Hydrostatic transmission	Invariable pump, variable motor	FILL CAPACITY
Type of gear box	Axis-fixed, double reduction	Fuel	67L
Gear shift	2 forward shift, 2 reverse shift	Hydraulic oil	90.4L

We are Linyi Huaya Machinery Co., Ltd. We are the earliest manufacturer of mini wheel loader in China, we started produce wheel loader from 2005, brand is CAISE and CAISEREX. Main products are CS906, CS908, CS910, CS910J, CS910J PRO, CS915, CS917 PRO. CS920. We work hard on quality control, better paint, better material, better assembling, which makes CAISE loader stable and good to use. We are trying to improve the quality and design new model all the time. CAISE wheel loader fit for all the farm work and construction work, are the best choice in China. We are supplying customized service for global market. No matter where you are, we will design wheel loader for you. Choosing us, we are create value together.
