Product Specifications
| Prod Model: |
YT-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Material Width: |
600mm |
| Max Printing Width: |
560mm |
| Printing Length Range: |
191-914mm |
| Thickness Of Plate: |
2.38mm |
| Type: |
Flexo |
| Embossing Structure: |
Flexo Cylinder |
| Color & Page: |
Two Colors |
| Printing Speed: |
50m/Min |
Product Description
USE:

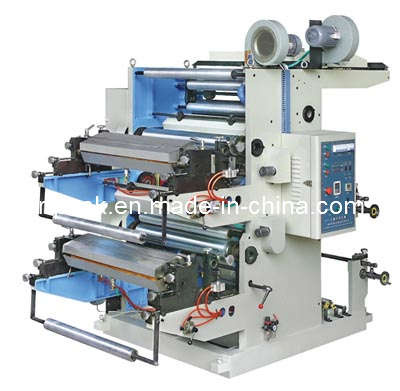

Flexography Printing Machine, also called aniline press which uses photosensitive resin plate as the printing plate of printing machine. It adopts environmental ink and has advantage of low edition-producing cost, this is an ideal machine for mass lots, large variety production manufacturer It is also snitable for printing HDPE, LDPE, PP. Cellophane paper, rolling paper etc.
FEATURE:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, is will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360 continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main technical parameters:
Technical Parameters are subjet to change without prior notice
| Model | YT-2600 | YT-2800 | YT-21000 |
| Max. material width | 600mm | 800mm | 1000mm |
| Max. printing width | 560mm | 760mm | 960mm |
| Length range of printing | 191~914mm | 191~914mm | 191~914mm |
| Accuracy of Registration | ±0.5mm | ±0.5mm | ±0.5mm |
| Max. diameter of material roll | Φ450mm | Φ450mm | Φ450mm |
| Output capacity | 5~50m/min | 5~50m/min | 5~50m/min |
| Thickness of plate (including two-sides glue paper) | 2.38mm | 2.38mm | 2.38mm |
| Total power | 8Kw | 10Kw | 12Kw |
| Weight of machine | 1800kg | 2000kg | 2200kg |
| Overall dimension(L*W*H) | 2500×1700×2200mm | 2500×1900×2200mm | 4300×2100×2200mm |
