Product Specifications
| Prod Model: |
YT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color & Page: |
Two-Colour Printing Press |
| Plate: |
Relief Printing |
| Embossing Structure: |
Rotary Letterpress |
| Type: |
Pin-on |

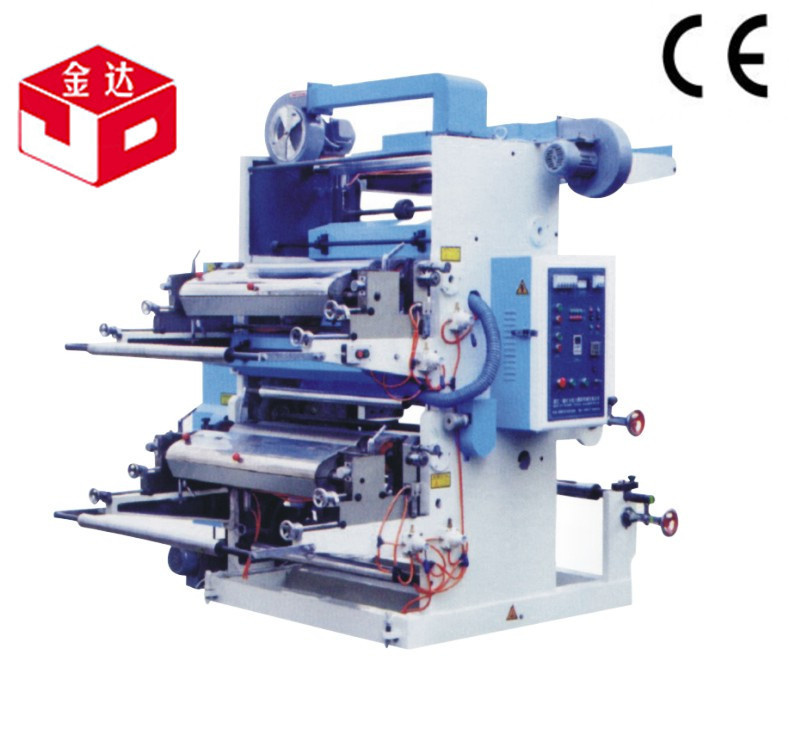

Product Description
Characteristics:
1. Both side printing
2. Adopting pneumatic control printing plate lifting system
3. Adopting inch motor control, user-friendly operation
4 Temperature control device to easily dry the printing
5. Easy operation, flexible starting, accurate color register.
6. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.
7. The printing ink is spread by the knurled cylinder with even ink color.
8. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
9.360° Continuous and adjustable longitudinal register device.
10. The imported frequency control of motor speed adapts to different printing speeds.
11. There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
12. Easy to make printing plate.
Featurs
1. Motor: Shanghai brand
2. Inverter: Huifeng or Delta (Taiwan)
3. Include EPC, air shaft and auto tension control
|
Model |
YT-4600 |
YT-4800 |
YT-41000 |
YT-6600 |
|
Max printing web width |
800mm |
800mm |
1000mm |
600mm |
|
Max printing width |
760mm |
760mm |
960mm |
560mm |
|
Max .length |
191-914mm |
191-914mm |
191-914mm |
191-914mm |
|
Max unwinding roller diameter |
Φ600mm |
Φ600mm |
Φ600mm |
Φ600mm |
|
Printing speed |
5-50m/min |
5-50/min |
5-50/min |
5-50/min |
|
Plate thickness |
|
2.38mm |
2.38mm |
2.38mm |
2.38mm |
|
Total power |
around 12kw |
around 13kw |
around 16kw |
around 19kw |
|
Machine weight |
3500kg |
4000kg |
4300KG |
4300KG |
|
Machine dimension |
4200×1600×2400mm |
4200×1800×2400 |
4400*2000*2400 |
4400*1600*2500 |
