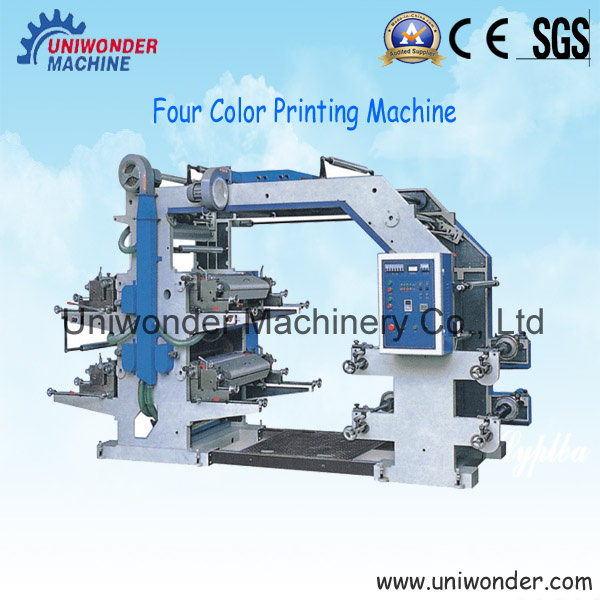

YT Series Four Color Flexographic Printing Machine
Use:
This machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Characteristics:
1. Easy operation, flexible starting, and accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 3600 continuous and adjustable longitudinal register devices.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Parameter:
| Model | YT4600 | YT4800 | YT41000 |
| Max. width of Printing Material | 600mm | 800mm | 1000mm |
| Max. printing Width | 580mm | 780mm | 980mm |
| Printing Length | 190-960mm | 190-960mm | 190-960mm |
| Max. diameter of Roll Material | Φ450mm | Φ450mm | Φ450mm |
| Printing Speed | 5-50m/min | 5-50m/min | 5-50m/min |
| Plate Thickness | 2.38mm | 2.38mm | 2.38mm |
| Total Power | 12.2kw | 16.2kw | 19.25kw |
| Machine Weight | 3000kg | 3500kg | 4000kg |
| Overall Dimensions(L×W ×H) | 4200mm*1600mm*2400mm | 4200mm*1800mm*2400mm | 4200mm*2000mm*2400mm |
RUIAN UNIWONDER Machinery Co., Ltd. is located in the East China Sea south of Zhejiang historic city RUIAN; Which set packing machinery, plastic machinery, printing machinery, such as scientific research and development, manufacturing, sales and after-service in one of Omni-directional and multi-purpose new technology enterprise.
RUIAN UNIWONDER Machinery Co., Ltd. is favored by domestic and oversea customers all along in the world, such as Southeast Asia, the Middle East, Africa, Europe and Asia, North and South America and Australia more than 30 countries and regions. Because of recognition of quantity, devotion of service and unremitting development of new technology, and the products are processed with high science and technical, reasonable design, advanced technology, prominent quality, credible capacity and perfect service, Which got higher reputation from our customers.
RUIAN UNIWONDER Machinery Co., Ltd. has been adhering to the "Solidarity, Progressive, Pragmatic, Innovative" spirit of "first-class enterprise, High quality products, Perfect service" as the development aim, advocates of independent innovation, respect for knowledge, attention to personnel training, relying on information technology, building high-quality, younger team, a positive potential to improve efficiency, the efforts of integration into the global market and actively participate in international competition.
Thanks a lot for your attention. In the hopeful 21 century, all of the staff from RUIAN UNIWONDER will cooperate with you with great passion and confidence and create a bright future. Wish international friends communicate with us by email or telephone. We are promise you that you will never lose. But win Chinese friendship. `
