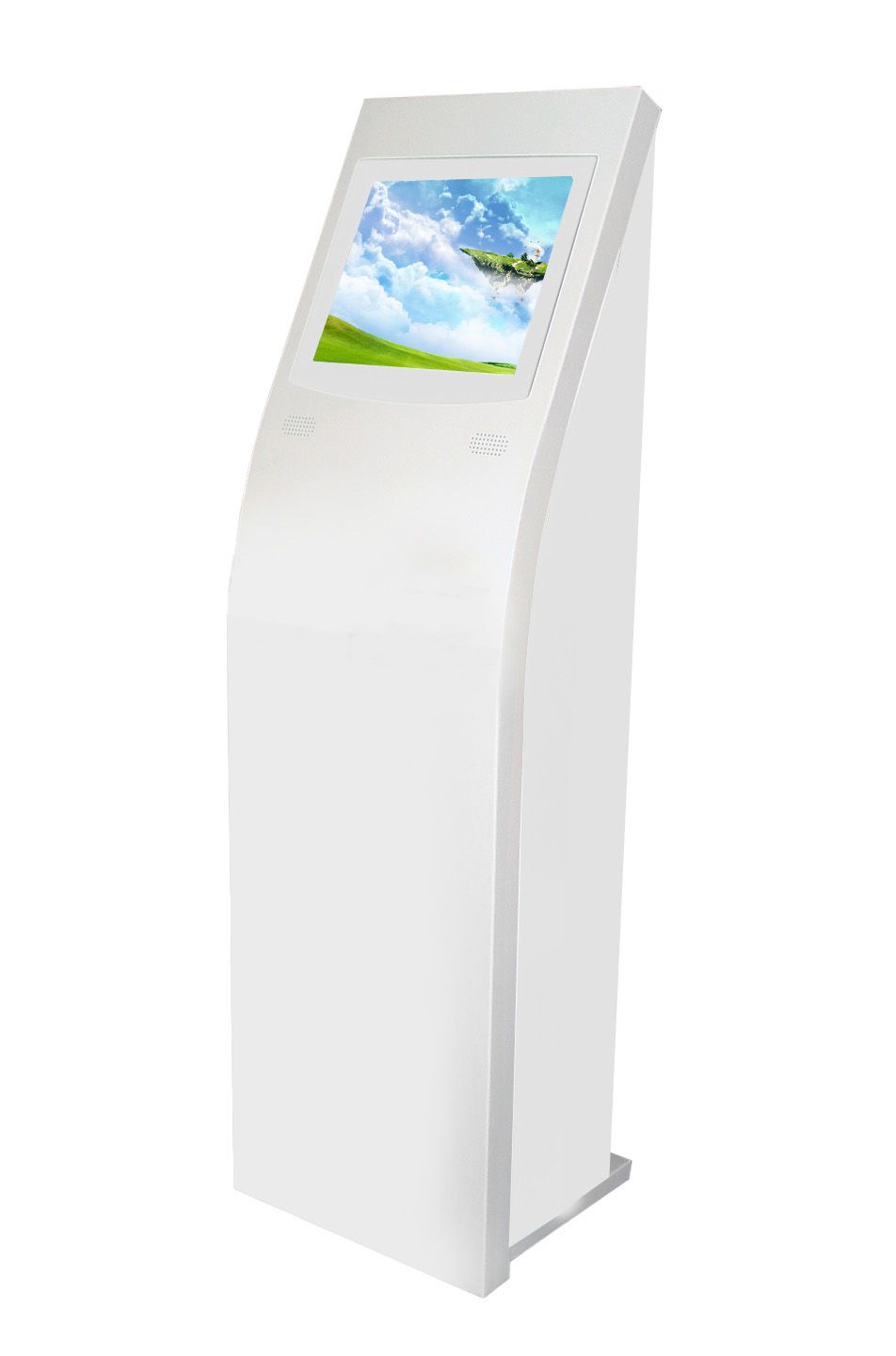

Yulian Touchscreen Kiosk/Interactive Touch Kiosk/Information Management System with Printer

Product Specifications

Prod Model:	YLD-2015
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Can Customize
Touch Panel:	5wire Resistive or Saw
Body Of Kiosk:	Can Customize
Material:	Cold Rolled Steel
Size:	17", 19"

Product Description

Touch panel: Mapletouch 5-wire resistive touch screen
Circuiting Rating: 5V DC, 35mA Surface Hardness: 3H
Light Transmission: Film+Glass>83% Hitting Life Expectancy: Over 35 million
Scoring Life Expectancy: Over 5 million
Contact Bounce: < 10ms Operating Temperature: -10 oC~+60 oC
Resolution: 4096x4096 Storage Temperature: -20 oC ~ +70 oC
Linearity: 1.5%(< 1.0% By Request) Thickness: 3.0mm
Operating Force: 10g~100g

Monitor: LCD
Display Area: TFT LCD 17.1"/19.1"
Resolution: 1280*1024
Contrast Radio: 500: 1
Colour Resolution: 16.2M
Brightness: 300CD/m2
DC Adapter: DC12V\5A
Kiosk:
Material: Cold rolled steel ST12 SPCC
Thickness: 1.5mm
Work environment: Temperature: +5 ~ +35degree; Humidity: 40% ~ 80%
Network function: Four-core telephone or RJ45 network tie-in ( Standard of RJ45)
The surface: Color optional
Basic electrical equipment with cables and power adapter for monitor and sound system

Two speakers
PC:
@ 1G RAM DDR2
@ Core 2 Duo 2.2GHz, G31
@ Intel Chipset motherboard
@ 250G HDD Seagate
Other Equipment
Wireless, card reader, printer, scanner, bill acceptor, coin acceptor, keyboard etc
Touch panel can change SAW touch panel and customize cabinet.
Size: 161*47*40 mm(H*L*W)
