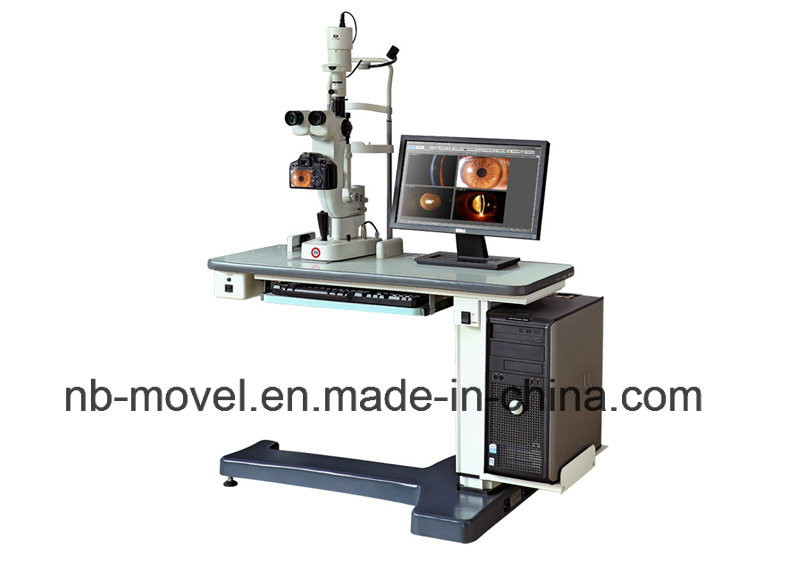

Yz5t Slit Lamp Microscope Image Processing System

Product Specifications

Prod Model:	YZ-5T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

The image processing system is not only a working platform for ophthalmic diagnosis, but also a case database. It can easily capture digital photos of the cornea, sclera, anterior chamber, iris, lens, retina and set up patients files and effectively man.
Features:
？What doctors see from eyepieces is showed synchronously on camera display screen, which is very convenient for the doctors to capture the best and clearest pictures.
？Photos taken by the 12.4 megapixel camera.
？Background illumination specifically designed for darkroom environment.
？Fine photos immediately taken by the button on joystick.
？Used for establishing the full data of patients, processing images, measuring the length, area and so on.
？Honored "China Top Brand"for its excellent optics.
Specifications:

Microscope Type	Gauleo magnification changer with converging
Magnification	Five-steps by drum rotation
Eyepiece	12.5
Magnification Ratio(Field of View)	6×(Φ33mm) 10×(Φ22.5mm) 16× (Φ14mm) 25 ×(Φ8.8mm) 40×(Φ5.5mm)
Range of Pupil Distance	45 mm ~ 75 mm
Adjustment of Diopter	-5D ~ +3D
Slit Width	continuous from 0~14mm (slit becomes a circle at 14mm)
Slit Height	continuous from 1~14mm
Aperture Diameter	φ14mm,φ10mm,φ5mm,φ2mm,φ1mm,φ0.2mm
Slit Angle	0°~180° adjustable
Slit Inclination	5°,10°,15°,20°
Filter	Heat absorption, Grey, Redfree, Cobalt blue
Illumination Bulb	12v/30w Halogen Bulb
Maxial Illuminance	≥280000 Lx
Preceding Mirror	-58.7D
Collection Medium	Single Lens Glistening Camera	3CCD
Special Specifications	Static Pixel:12.4megapixel	Dynamic Image:795×596×3
	Double Display Screens	Single display screen
	Without the function of kinescope	With the function of kinescope
Illuminations Type of Filming	Background Light
Functions of Images Processing	Measuring length, width, angle and area Adding arrowhead and letters; Processing images
Assistant Diagnosis	With the diagnosis database
