Shenzhen ZCS Technology Co., Ltd. >> Zcs Imixpay-Pinpad Credit Card Reader for Mobile Devices USB/ 3.5mm Audio Jack/Bluetooth

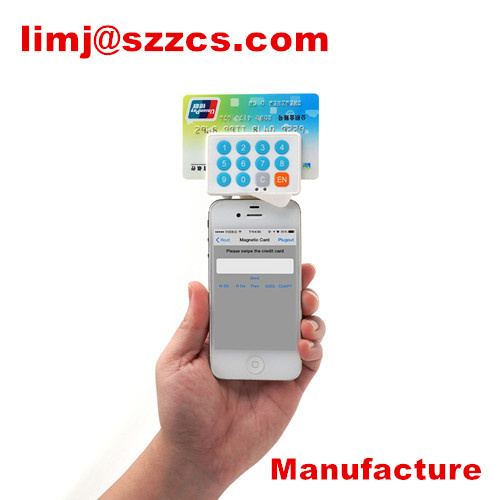

Zcs Imixpay-Pinpad Credit Card Reader for Mobile Devices USB/ 3.5mm Audio Jack/Bluetooth

Name: Zcs Imixpay-Pinpad Credit Card Reader for Mobile Devices USB/ 3.5mm Audio Jack/Bluetooth
Brand: china-manufacturer-directory.com
SKU: 666630931
Availability: InStock
Rating: 5 (22 reviews)

Supplier:	Shenzhen ZCS Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	ZCS imixpay-pinpad
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE
Type:	Card Reader

Product Description

Interface	Audio headphone jack
Storage Temperature	-30ºCto70ºC (-22ºF to 158ºF) non-condensing
Operating Temperature	0ºCto55ºC (32ºF to 131ºF) non-condensing
Compatibility	ios series,Android,WP7/WP8
Working power	li-ion battery power
Battery capacity	120mAh/200mAh
Battery life	More than 500 cycles
Chip	4K SRAM
Rated voltage	3V DC
Idle Current	12nA
Power on Current	5.57mA(Including LED lights 2mA)
Send command Current	40mA
LED lights	Red: power indicator ,Green: charge indicator
IC power indicator	Light on means the battery charge remaining
Charge indicator	Light on means in charge
Charging time	2 ~ 3 hours
Relative Humidity	Maximum 95% non-condensing, dry storage
Dimensions
Weight	60g
IC
Reference Standards	ISO-7816 Class A,B and C,EMV
Operating Life	approx. 100,000 passes
Card thickness	About 0.75mm
Insert IC card Current	20mA
Operate IC card	50mA
Working current	25mA
Working Hours	It can continuous operation the IC card for more than 6 hours. For example a transaction needs to send 40 APDU commands, in a fully charged condition, it can trade a thousand times , good performance phone will be faster.
Magnetic Stripe
Reference Standards	ISO 7811,AMMVA,CADMV and other format
Swipe speed	3 ~ 60 inches per second,bi-directional
Operating Life	approx. 300,000 passes
Track position	1&2 tracks
Card thickness	0.76~1.2mm
Working current	7mA
Working Hours	Support swipe magnetic stripe card more than fifty thousand times

l Professional structure design: with the professional structure design, beyond the traditional magnetic card reader, perfect combined with mobile drivers.
l Safe and Secure: provide safe and secure transactions, provide hardware
based 3DES encryption
l Secret key Injection: support to set up a key injection process and software to inject the key through the audio jack into the device
l Provide DUKPT KEY Management
l support magnetic card and EMV card
l Green Initiative: the battery can be charged
l Superior magstripe reading performance: offers exceptional card reading
capabilities in a durable form factor
l Easy to use: simple and best to use, with a smart lanyard.
l Provide variety sdk demo:ios,android,windows Phone,PC
