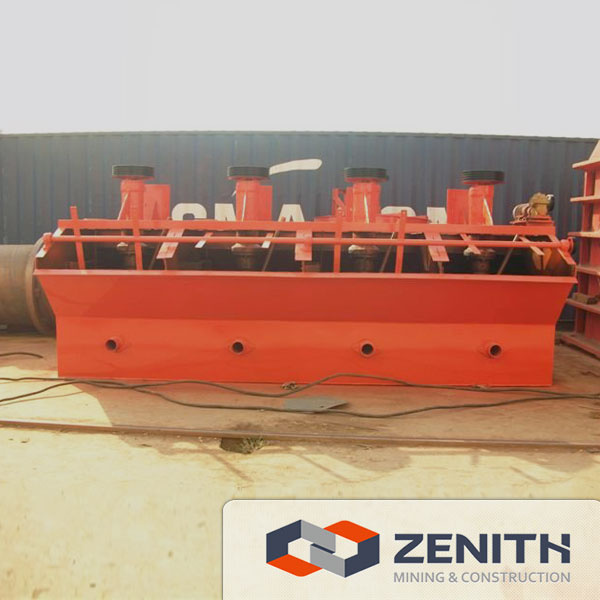

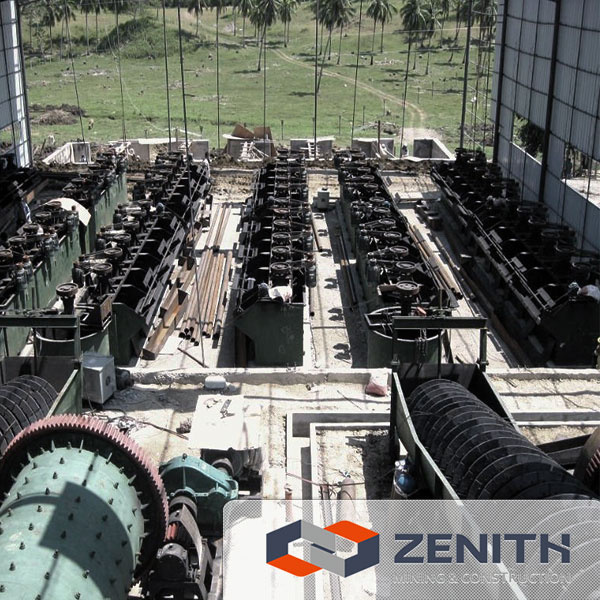

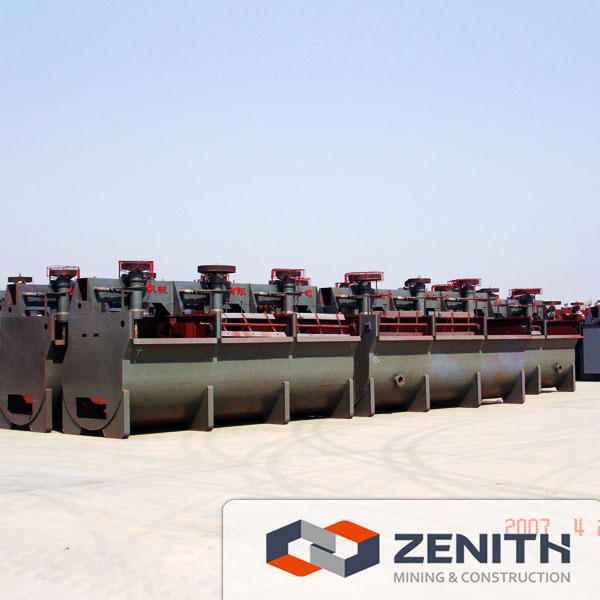

ZXJK series flotation machine flotation process is usually a continuous process by a few tanks, dozens of tank flotation machine connection, including roughing, scavenging, concentration operations. The use of flotation machine should meet the following requirements about equipment and processes, varies parts are complete and intact. Machines function normally and achieve the required aeration rate. Motor drives impeller rotating through belt and pulley. On the one hand, the machine inhaled enough air mixed with slurry, on the other hand, stirring the mixture of pulp and pharmaceutical. At the same time, refinement of the bubble, the particles adhere to the bubbles on the role of reagents and float to the slurry surface. So it the formation of mineralized froth layer and scraped by the scraper.
ZXJK series flotation select high grade concentrate from low grade Ore effectively. It is widely used for copper, lead, zinc, nickel, molybdenum, gold and other non-ferrous metals, ferrous metals and non-metallic minerals roughing, concentration and flotation operations. Especially for fine disseminated and complex composition ore, using this series flotation machine can get better separation effect.
|
Specifications and models |
ZXJK-0.13 (1A) |
ZXJK-0.23 (2A) |
ZXJK-0.35 (4A) |
ZXJK-0.62 (5A) |
ZXJK-1.1 (5A) |
ZXJK-2.8 (6A) |
|
Impeller Diameter (mm) |
200 |
250 |
300 |
350 |
500 |
600 |
|
Impeller speed (R / min) |
600 |
500 |
470 |
400 |
330 |
280 |
|
Capacity (m3/min) |
0.05~0.16 |
0.12~0.28 |
0.178~0.4 |
0.3~0.9 |
0.6~1.6 |
1.5~3.5 |
|
Impeller motor |
Model |
ZY90L-4 |
ZY100L-4 |
ZY90L-4 |
ZY1342S-6 |
ZY132M-6 |
ZY160L-6 |
|
Power kw |
1.5 |
3 |
1.5 |
3 |
5.5 |
11 |
|
Scraper motor |
Model |
ZY80L-4 |
ZY80L-4 |
ZY80L-4 |
ZY90L-6 |
ZY90S-4 |
ZY90S-4 |
|
Power kw |
0.55 |
0.55 |
0.55 |
1.1 |
1.1 |
1.1 |
|
Slot size (long× width× high) mm |
500× 500× 550 |
600× 600 × 650 |
700× 700 × 700 |
900× 900 × 850 |
1100× 1100 × 1000 |
1750× 1600 × 1100 |
