Product Specifications
| Prod Model: |
GWM-30B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Zeolite Grain Drying Machine with CE/ISO |
| Model: |
Gwm-30b |
| Usage: |
Industrial |
| Product Type: |
Chemical Production |
| Type: |
Drying Machine |
Product Description

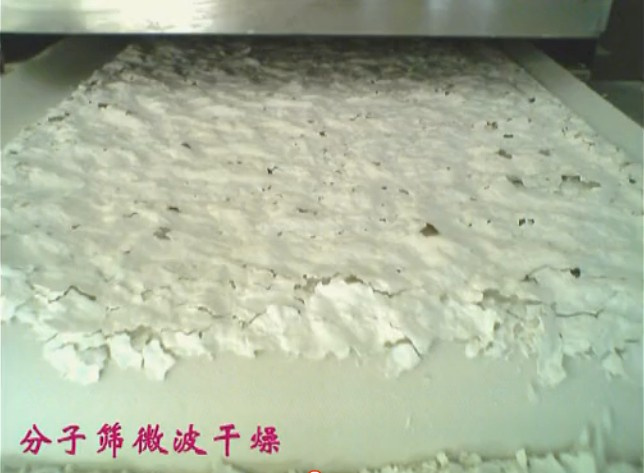

Zeolite grain drying machine with CE/ISO
Product Features:
1, the processing time is greatly reduced, product quality, insects straight, puffed high, color and freshness can be maintained, less water and nutrients loss
2, the bacteria level low, high efficiency, low cost, low power consumption, small footprint
3, flexible operation, temperature uniformity, high degree of automation, programmable control, 24-hour operation.
Technical parameters:
1, frequency: 2450 ± 50MHz
2, the microwave output power: ≥ 30KW (adjustable)
3, feeding height: 200mm
4, the expected height: 200 mm
5, the conveyor belt layers: A layer
6, the conveyor belt width: 500 mm
7, conveyor speed: 0-5m / min (adjustable)
8, Dimension: 9660 × 826 × 1880 mm (length × Width × Height),
Applications:
For a variety of insects, Cordyceps sinensis, Tenebrio drying, milling and other processing.
|
Model |
Working Frequency
(MHZ) |
Output power
-kw |
Microwave leakage
|
External Dimension Adjustable |
Productivity of Drying
(kg/h) |
productivity of Sterilization
(kg/h) |
|
GWM_ 15A \ B |
2450± 50 |
15 |
≤ 5 |
9.8× 1.2× 1.6 |
40-75 |
150-180 |
|
GWM_ 20A \ B |
2450± 50 |
20 |
≤ 5 |
12.4× 1.2× 1.6 |
50-120 |
200-250 |
|
GWM_ 30A \ B |
2450± 50 |
30 |
≤ 5 |
14.6× 1.2× 1.6 |
65-160 |
300-400 |
|
GWM_ 50A \ B |
2450± 50 |
50 |
≤ 5 |
20.5× 1.2× 1.6 |
120-200 |
500-600 |
|
GWM_ 80A \ B |
2450± 50 |
50_ 80 |
≤ 5 |
30× 1.2× 1.6 |
200-300 |
600-1000 |
|
GWM7_ 80A \ B_ L |
2450± 50 |
7_ 80 |
≤ 5 |
9-30× 1.2× 1.8 |
40-360 |
60-1000 |
|
GWM7_ 80A \ B |
2450± 50 |
7_ 80 |
≤ 5 |
9-30× 1.2× 1.8 |
40-360 |
60-1000 |
We specialized with pharrmaceutical equipment: Herbs drying machine, herbs pill machine, sterilizer, suppository production line, filling package line. We understand our customers, we care about the future of our business. We want to ensure that you get our good service, not only high quality and speedy delivery.
