Product Specifications
| Prod Model: |
ZG11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

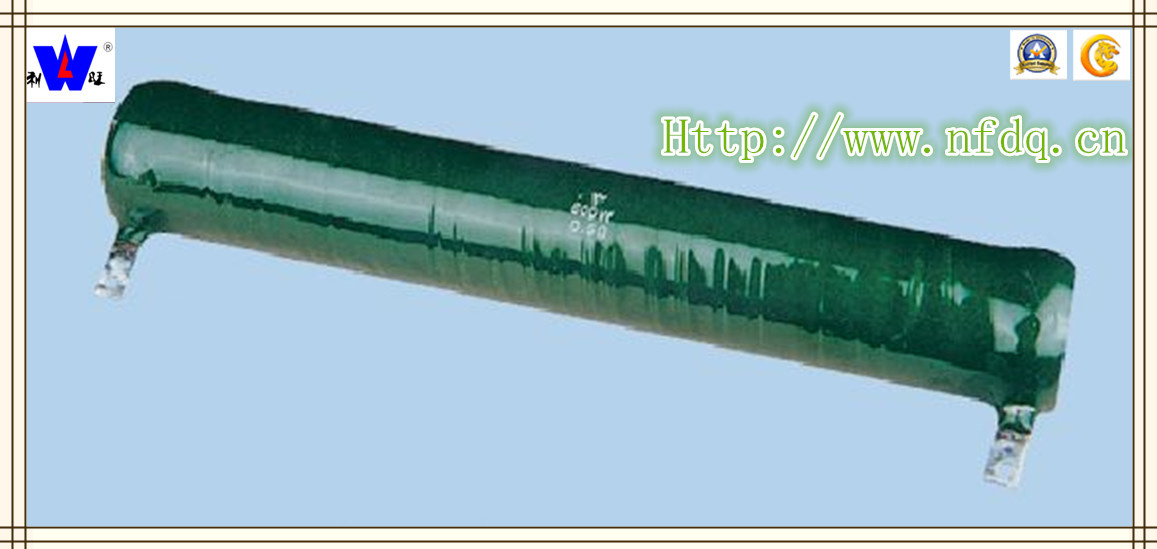

Zg11 Enamel Wirewound Resistor with Ceramic Tubula |
| Quality Certification: |
ISO9001: 2008 |
| Environmental Certification: |
ISO14000 |
| Resistance Tolerance: |
5%,10% |
| Color: |
Green |
| Resistance: |
Fixed Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
DIP Resistor |
| Material: |
Wire-wound Resistor |
| Package Type: |
Surface Mount |
| Brand: |
Liwang |
Product Description
Specifications of Zg11 Enamel Wirewound Resistor with Ceramic Tubular:1. ZG11 enamel wire wound resistor has a lot of types.
2. Resistance tolrrance: 5%(J)10%
Features of Zg11 Enamel Wirewound Resistor with Ceramic Tubular:1. Copper wire or chrominum alloy wire is wound on the ceramic tube coated with non-flammable resin,good dissipation ,high stability, and long life.
2.high power rating,high overload.
3.The DDR series own higher resistance value than the DQR series.
4.Widely used in power supply,transducer, elevator,arena audio and
Lifting,Braking,Ship ,Load equipment, high requirement equipment
industry,ect.
5.For customer specifications,can be made into variable resistor.
Dimensions of Zg11 Enamel Wirewound Resistor with Ceramic Tubular:| type | rated power(W) | resistance range(Ω) | dimensions(mm) |
| D | d | L | L1 | B1 |
| ZG11-25 | 25 | 10-3.6K | <26 | 13±0.9 | 50±1.5 | 42±2.5 | 21±4 |
| ZG11-50 | 50 | 10-8.2K | <26 | 13±0.9 | 90±2.5 | 80±3.5 | 21±4 |
| ZG11-75 | 75 | 10-10K | <26 | 13±0.9 | 160±3 | 148±5 | 25±4 |
| ZG11-100 | 100 | 10-15K | <33 | 18±1 | 170±3 | 155±5 | 25±4 |
| ZG11-150 | 150 | 10-20K | <33 | 18±1 | 215±4 | 203±6 | 25±4 |
| ZG11-200 | 200 | 10-25K | <33 | 18±1 | 267±4 | 250±6 | 25±4 |
| ZG11-300 | 300 | 10-39K | <45 | 24±1.2 | 220±4 | 200±8 | 45±5 |
| ZG11-400 | 400 | 10-50K | <45 | 24±1.2 | 332±5 | 310±8 | 45±5 |
| ZG11-500 | 500 | 0.2-8.2K | <55 | 30±1.5 | 300±5 | 290±8 | 48±5 |
| ZG11-800 | 800 | 0.2-9K | <65 | 40±1.5 | 300±5 | 290±8 | 58±5 |
| ZG11-1000 | 1000 | 0.5-10K | <70 | 45±1.5 | 300±5 | 290±8 | 60±5 |
| ZG11-1200 | 1200 | 1-12K | <70 | 45±1.5 | 380±5 | 365±8 | 60±5 |
| ZG11-1500 | 1500 | 1-15K | <70 | 45±1.5 | 420±5 | 405±8 | 60±5 |
| ZG11-2000 | 2000 | 2-18K | <70 | 45±1.5 | 520±5 | 500±8 | 60±5 |
| ZG11-2500 | 2500 | 5-20K | <70 | 45±1.5 | 600±5 | 585±8 | 60±5 |
| ZG11-3000 | 3000 | 5-25K | <85 | 48±1.5 | 605±5 | 585±8 | 68±5 |
Our Company:![]()
![]()
![]()
![]()
Advantage of our company:1. Competitive price
2. High stability and high quality
3. Prompt shipment
4.professional & experienced management team
5.quick response to the needs of our customers
6.wide range products
Selling point:1)prompt delivery
2)variety of packing: Bulk and carton
3)stable performance, extensive resistance
4)factory direct price
5)none forbidden
6)all materials&machines importer from holand
Don't hesitate to contact us if you have any interest in our products,welcome to provide us your specification,we will submit the best quotation shortly.
It's our pleasure to be on service of you.Thanks.
Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.
Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.
Factory' S quality policy: "product quality, service in advance, customer satisfaction".
Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment".
