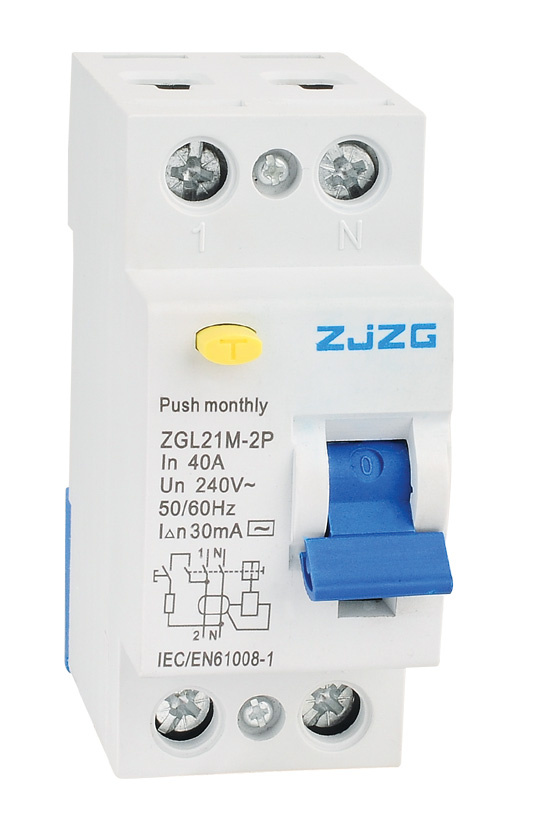

ZGL21M 2P Residual Current Circuit Breaker

Name: ZGL21M 2P Residual Current Circuit Breaker
Brand: China-Manufacturer-Directory.com
SKU: 706225235
Availability: InStock
Rating: 4.9 (60 reviews)

Supplier:	Zhejiang Zhongguan Electrical Co., Ltd.
Price:	US $ 3.50/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZGL21M 2P
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Circuit Breaker
Function:	RCCB
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Structure:	Conventional Circuit Breaker
Certification:	CE, CB, Semko, Nf
Installation:	DIN Rail Mounting

Product Description

ZGL21M Residual Current Circuit Breaker(RCCB):
1), Provides protection against earth fault/leakage current and function of isolation
2), High breaking current withstand capacity
3), Applicable to terminal and pin/fork type busbar connection
4), Equipped with finger protected connection terminals
5), Fire resistant plastic parts endures abnormal heating and strong impact
6), Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
7), Independent of power supply and line voltage, and free from external Interference, voltage fluctuation

Mode	Electro-magnetic type, electronic type
Residual current characteristics	A, AC
Pole No.	2, 4
Rated making and breaking capacity	630A
Rated current(A)	25, 40, 63, 80A
Rated voltage	240/415V AC
Rated frequency	50/60Hz
Rated residual operating current IΔ n(mA)	10, 30, 100, 300, 500
Rated residual non operating current IΔ no	0.5IΔ n
Rated conditional breaking current Inc	6000A
Rated conditional residual breaking current IΔ c	6000A
Tripping duration	Instantaneous tripping≤ 0.1s
Residual tripping current range	0.5IΔ n~IΔ n
Electro-mechanical endurance	4000 cycles
Connection capacity	Rigid conductor up to 25mm 2
Connection terminal	Screw terminal
Connection terminal	Pillar terminal with clamp
Fastening torque	2.0 Nm
Installation	On symmetrical DIN rail 35mm
Installation	Panel mounting

Zhejiang ZhongGuan Electrical Co., Ltd is a manufacturer of circuit breakers, established in 2006. Main products including MCB, RCCB, RCBO, MCCB, Distribution box, etc. With the safe product certificate of EU-CE, Sweden Semko, France NF&CB, Argentina IRAM&CB, Brazil Inmetro&CB, ISO9001 International Quality Management System.

We always place the product quality and customer's needs on the utimost position and strives to better serve our valued customers. We work to bring interests both to our customers and ourselves. We respect and treasure employees' hard work and share with them the value created by the whole team. We are looking forward to working with more customers worldwide and create more value together.

To be a profitable company to sustain high quality, cost-effective products to satisfy our customers'needs.
We commit to taking ACTION:
-Adopt the latest technology to take the product quality to the next level
-Consistently provide on-time services to our customers
-Train and develop talented people with strong work ethics to deliver effective performance
-Improve and enhance engineering designs to ensure product performance
-Optimize management systems and increase productivity
-Never forget our customer and employee needs
