Zja9by 9000L/H Ultra High Voltage Transformer Oil Purification Equipment

Name: Zja9by 9000L/H Ultra High Voltage Transformer Oil Purification Equipment
Brand: china-manufacturer-directory.com
SKU: 689546112
Availability: InStock
Rating: 4.9 (128 reviews)

Supplier:	Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Price:	US $ 10000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZJA9BY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Ultra High Voltage Transformer Oil Purification E
Certification:	CE,BV,ISO,CE$ISO
Warranty:	1 Year
Normal Flow:	Depend on Customer
Vacuum Pump:	Busch, Leybold
Heat System:	Indirect Heat, Stainless Steel
Flow Capacity:	9000L/H
Working Vacuum:	Not More Than 30 PA
Working Temperature:	45-65 Celsius
Diameter Of Inlet/Outlet Hose:	40/40
Structure:	Mobile
Mechanical Principle:	Vacuum
Type:	Return Filter

Product Description

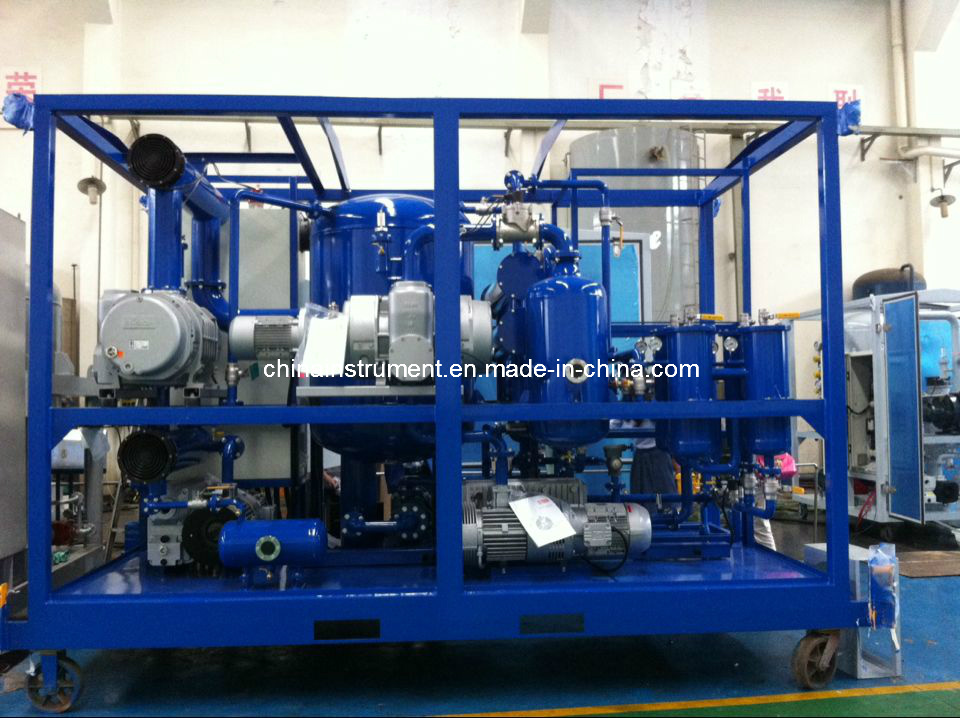

ZJA9BY 9000L/h ultra high voltage transformer oil purification equipment

Its features include high working vacuum, fast oil filtering, and sound oil quality protection. It is mainly used for purification of oil for highvoltage and extra high voltage electric facilities, and can increase oil puncture voltage by at least 35KV at a time. This series may include two types: Regular closed type and trailermobile type. They are suitable for oil treatment, vacuum oil injection, and cyclic hot-oil drying in the installation and maintenance of big transformers.

Besides, they can also be configured into threestage highvacuum oil purifiers to meet your greater needs for oil treatment.

Feature
1. New heating equipment to reduce heating burthen
2. Oil level control adopt photoelectric way
3. Vacuum pump from Busch, Leybold

1. Simple in operation, convenient in moving and high efficient in oil treatment

2. As the new technology, vacuum-segregating (Patent No. ZL200420061085.6) employs particular spinning disk and stainless steel machine with dehydration and air pump and enlarges the area of segregating and coming to three-dimensional evaporation so that obtain the enough time to boil away. In this way purifier could achieve the best effect

3. Using new type of heating equipment (Patent No. ZL02276238.8), it can reduce heating burthen and extend oil life

4. Oil level control adopt photoelectric way which the main components is imported from Switzerland

Name	Unit	ZJA-30	ZJA-50	ZJA-80	ZJA-100	ZJA-150	ZJA-200	ZJA-300
Flow	L/H	1800	3000	4800	6000	9000	12000	18000
Vacuum Degree	Mpa	-0.08~-0.099
Pressure	Mpa	not above 5
Temperature	celsius	20-80
Power Supply	V	380V/50HZ
Working Noise	dB(A)	not above 78
Heating Power	Kw	30	45	60	90	135	180	216
Total Power	Kw	32.8	48.5	65.5	95.9	142.4	189.2	230
Net Weight	Kg	600	800	1000	1300	1800	2100	2400
