Product Specifications
| Prod Model: |
ZK-5540WL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Box Size:660*450*130mm: |
Min Box Size:180*120*20mm |
| Type: |
Carton Packaging Machinery |
| Automatic Grade: |
Automatic |
Product Description

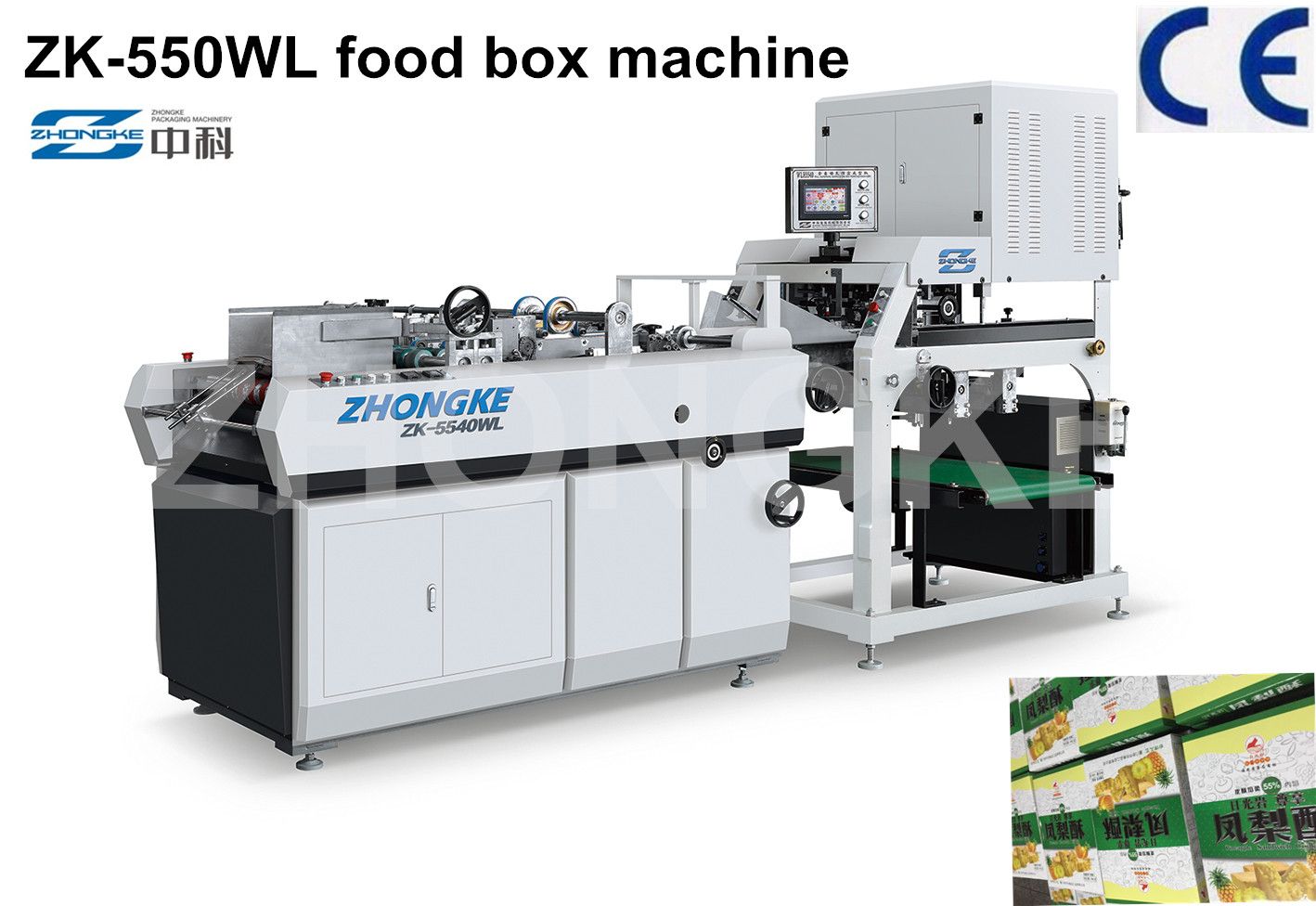

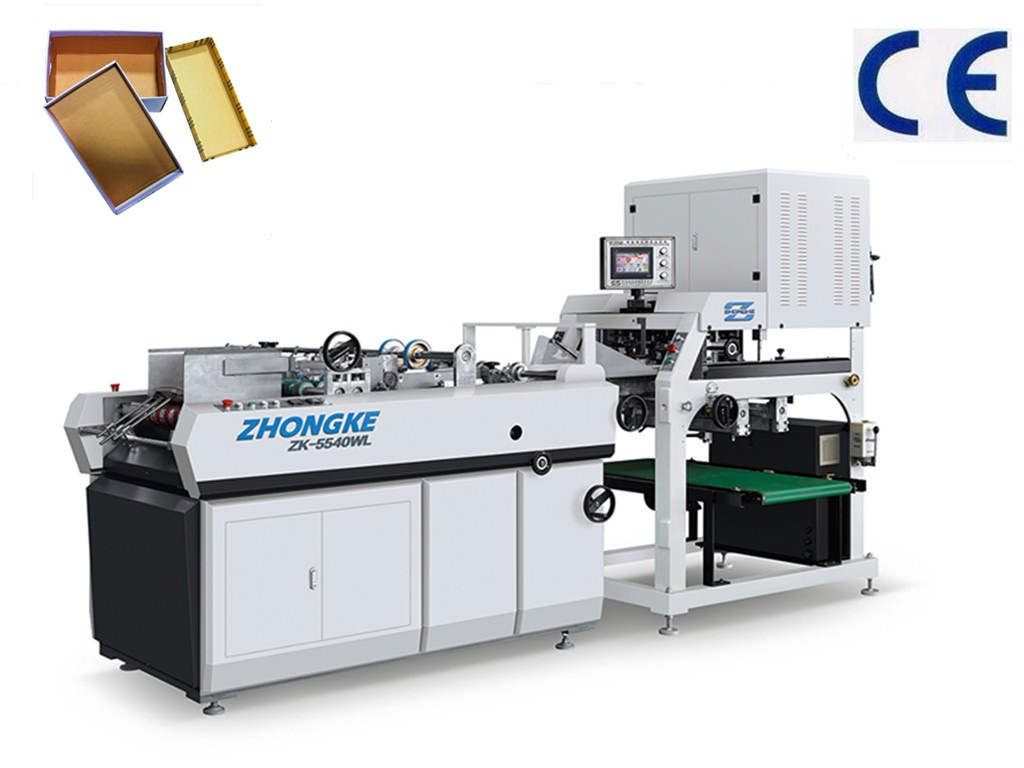

Exquisite Process Drives The Future of Rigid BoxZK-5540WL Full Automatic Corrugated box forming machinery is mainly applicable to the packing of 2mm-3mm corrugated cardboard and Micro corrugated cardboard and of various kinds of rigid cardboard. Such as shoe boxes, toy boxes, and boxes used for medicine and daily necessities.
Technical Specification:
Size of the finished box: (180-600mm) × (120-450mm) × (20-130mm)
The size of the box is adjustable as long as it is in the above dimension ranges.
Speed up to: 35-45pcs/min
Cardboard blank thickness: 1.5-3mm (The same thickness and smooth)
Electrical power: 380V, 50Hz, 6.7KW
Dimension: 3400mm(length)× 1650mm(width)× 2200mm(height)
Weight: 1300kg
Main function:

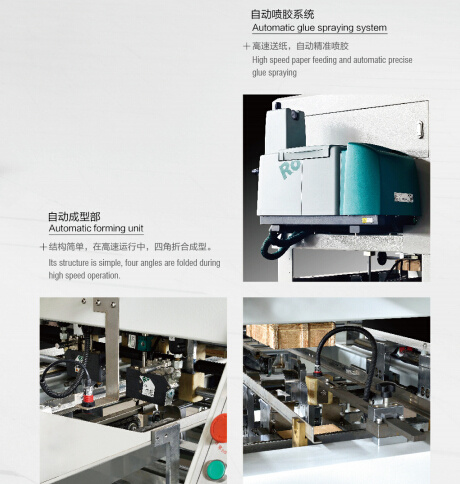

1. Intelligent spray glue system, Realize automatic spraying glue compensation function

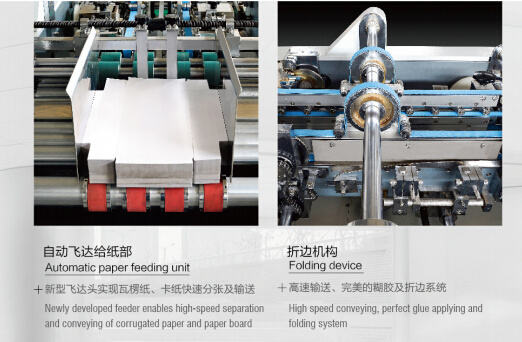

2. Cardboard feeding automatically, achieves corrugate-feeding, edge wrapping, corner folding and forming in one process.
3. It adopts PLC programmable controller, photoelectric tracing system, air testing running system and touch-sensitive screen. The entire process is automatic.
4. Infrared security protective system, to ensure safe operation.
5. Automatic trouble diagnosing.
6. Fast changing mould adjusting device
Paper wrap size
A=width
B=length | Amin | 160mm | Cardoard blank thickness | Min | 1.5mm |
| Amax | 620mm | Max | 3mm |
| Bmin | 260mm | Power supply | 380V 50Hz |
| Bmax | 810mm | Noise level | ≤80dB |
Box size
L=length;
W=width;
H=height; | Lmin | 180mm | Speed / Pcs/h | 2000-2800 |
| Lmax | 660mm | Cardboard pile height | 200mm |
| Wmin | 120mm | Kg | 20 |
| Wmax | 450mm | Electrical power | 6.7kw |
| Hmin | 20mm | Glue tank capacity/ Litre | 8L |
| Hmax | 130mm | Air supply/Litre/min | 80L / min |
| Folding Edge Range:R | Rmin | 20mm | Net weight | 1300kg |
| Rmax | 40mm | Machine overall dimension | L3.4XW1.65XH2.2m |
Ellian ZhangWenZhou Zhongke Packaging Machinery Co., Ltd.ADD:301#,wanxiang RD.,Light Industry Base,Wanquan,Pingyang County,Zhejiang, ChinaTel:+86-577-63082366 65021288M.P.:+86-13575438650Fax:+86-577-63082368Website:http://www.zhongke-china.com
Zhongke Packaging Machinery Co., Ltd. Was established in 2002. It is the first leading enterprise in China to independently develop and create a series of automatic rigid box making machines. Founded the two major brands of "ZHONGKE" and "HEWANG Box King"The company took the lead of this industry in passing the international quality system ISO9001 certification, environmental protection system ISO14001 certification, Safety system ISO18000 certification, EU CE safety system certification, intellectual property management system GB/T29490-2013 certification. Zhongke covering an area of 100, 000. It is a private economic entity integrating independent research and development, design, production, sales and service. On the basis of drawing on the advanced technology of similar foreign products.
After 20 years of development, the company has established perfect sales network and integrated after-sale service system at domestic and abroad, which enables the company to provide timely, accurate and efficient services, and won good customer reputations. The products are sold all over in China and exported to more than 60 countries and regions such as Europe, America, Southeast Asia, South America, Middle East and Africa. The production, sales volume and scale are all ranked first in the same industry
Zhongkenese welcome the domestic and foreign merchants to visit us with investigation, negotiation and ordering!
