| Price: | US $ 215-234/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal |

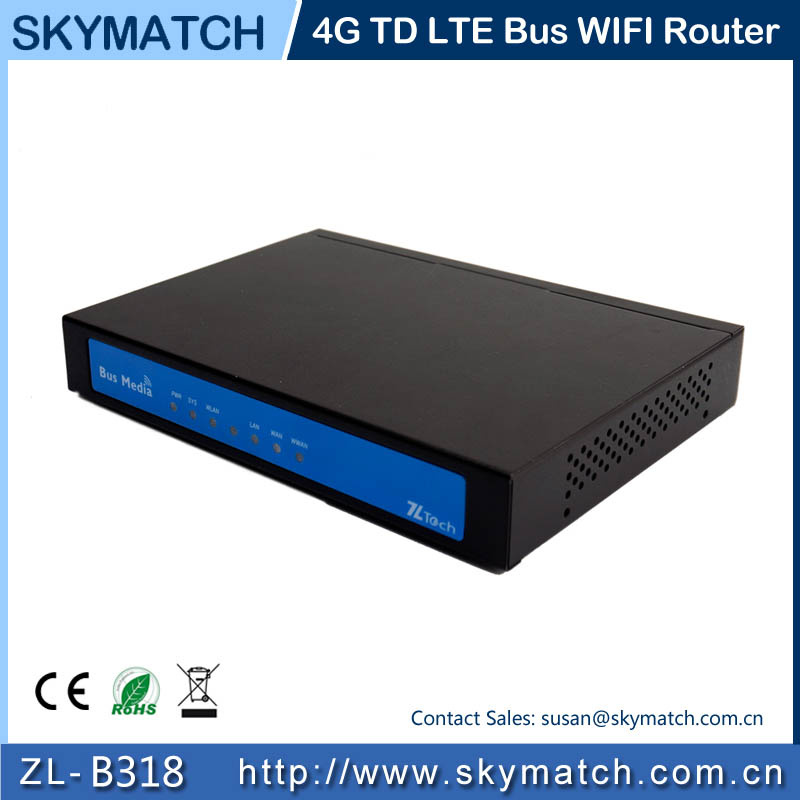

| Prod Model: | B318 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Wireless |
| Network Site: | Border Router |
| Transfer Rate: | 100Mbps |
| Firewall: | Firewall |
| Ports: | ≤4 |
| Port Structure: | Modular |
| Application: | SOHO |
| Performance: | Non Line Speed Router |
| Architecture: | Single Bus Symmetric Multi CPU |
| Network: | 4G |
| H/W platform | CPU | MT7620A 600MHz |
| TF | Max. 32GB | |
| RAM | DDR2 128MB | |
| FLash | 16MB SPI Flash | |
| 3G/4G | WCDMA/EVDO/TD-SCDMA/TDD-LTE/FDD-LTE (Optional) | |
| WAN | 1x100M (adaptive) | |
| LAN | 1x100M (adaptive) | |
| Max Connections | Up to 25 units | |
| Modulation | OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK | |
| Work mode | AP mode | |
| Spectrum Scanning | Support site scan and channel detection, signal real-time status display | |
| Antenna | 2X2 MIMO | |
| Network Authentication | WPA | |
| Security | Client isolation,Hidden SSID,VLAN,VMSSID | |
| ACL | Access control list of the client, MAC address filtering | |
| QOS | Internet up to 10K/user(can be set) Intranet no limit | |
White-black List | Control Exports of Internet white listing \ blacklisting, effectively reduce the network cost | |
| Advertisement | Authentication Methods | Passive Authentication APP Local Authentication(need APP match up) SMS certification(need SKYMATCH background server to support) Login name / Password ( need SKYMATCH background server to support) |
AD Format | Support portal page Local website advertising APP product placement | |
Terminal Operation system | OpenWRT | |
| Service | Local | support user to visit local page |
| Internet | Access network resource via 3G/4G | |
| Update | update media server Support local TF card data updated automatically Support bus station's WIFI data updated automatically (optional) | |
Network management | Supervisor Mode | WEB |
| Updated backup | Support local/remote to update firmware online; Configuration file backup/import function | |
| Remote control | DeviceCloud management platform(optional) | |
| Bandwidth Management | QoS | Based on the client IP or MAC bandwidth control function |
| WIFI | Protocol Standard | IEEE 802.11 b/g/n |
| Working Frequency | 2.4-2.4835GHz | |
| Basic Function | Wireless Switch; SSID Switch; Chinese SSID 2.4GHz channel selection: 1-13; 5GHz channel selection : 149, 153, 157, 161, 165; Optional Spectrum Bandwidth: 20MHz, 40MHz, Automatic | |
Data transmission rate | 11n: 300/270/243/216/162/108/81/54/27Mbps; 135/121.5/108/81/54/40.5/27/13.5Mbps; 130/117/104/78/52/39/26/13Mbps; 65/58.5/52/39/26/19.5/13/6.5Mbps; 11g: 54/48/36/24/18/12/9/6M(adaptive); 11b: 11/5.5/2/1M(adaptive) | |
Transmission Range | 200m without blocking | |
| RF Output rate | 802.11n:15dBm for OFDM mode 802.11g: 17dBm for OFDM mode 802.11b: 20dBm fro CCK mode | |
Receiving sensitivity | 300M_2.4G: -70dBm; 270M_2.4G: -70dBm; 195M_2.4G: -71dBm; 130M_2.4G: -74dBm; 54M_2.4G: -79dBm; 6M_2.4G: -94dBm | |
Work Pattern | Route Mode,AP/Client Mode, Repeater Mode,WDS Mode | |
| Wireless Security | The wireless MAC address filtering; Wireless Security Switch; 64/128/152bit WEP encryption; WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism; WPS quickly security setting | |
Interfaces | Ethernet | Two separate MB card adapt fast Ethernet interface |
| Antennas | External WIFI N-Female Antenna interface,3G/4G antenna interface Main,AUX | |
| Power | 10mm Three lines aviation plug | |
| LED | Power Indicators *1 System Indicators *1 3G Indicators *1 WLAN Indicators *1 Ethernet port Indicators *1 TF card Indicators *1 | |
cellular network | Defaulted no cellular network,can be customized by customer's requirement TDD-LTE,FDD-LTE,WCDMA,EVDO,TD-SCDMA | |
| TF Card | Support 32G TF card,use to update local data automatically | |
| SIM Slot | 1* SIM slot | |
| Button | Reset/WPS button | |
| Power | power dissipation | 10W (max.) |
| power | 9-36V/1A DC input | |
| Size | 200mmx138mmx34mm(L x W x H) | |
| Physical | Net Weight | 656g |
| Product Housing | Metal shell,rust protection,Sun block | |
| Product Accessory | Operating temperature | Operating Temperature:-10ºC to 60ºC(can make heating module according to the environment.) Storage Temperature:-40ºC to 90ºC |
Operating Humidity | Operating Humidity:10% to 90%RH no condensing; Storage Humidity:5% to 90%RH no condensing; | |
| Protection Level | IP51 | |
| Antenna accessories | 3G/4G antenna x2, according to different configuration to work WIFI antenna; the quantity according to different configuration to work | |
Power Accessories | DC12V/1A power adapter (optional) | |
