Product Specifications
| Prod Model: |
PCL series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Provide |
| Certification: |
ISO9001-2000 |
| Model: |
Pcl Series |
| Price: |
Negotiation |
| Waranty: |
Quality Certificate |
| Condition: |
New |
| Place Of Origin: |
Henan, China |
| Capacity: |
25-380t/H |
| Power: |
37-400kw |
| Object: |
Metal |
| Finished Surface: |
Gear Process |
| Drive: |
Electric |
| Compressive Strength (',For Crushing): |
>300MPA |
| Crushing Style: |
Impact |
| Crushing Degree: |
Fine Grinding Machine |
| Type: |
Impact Crusher |
| Application: |
Ore |
Product Description
Sand Making Machine:
1. Unique structure
2. Stable operation
3. Lower energy consumption
4. Larger capacity and crushing ratio
Brief introduction

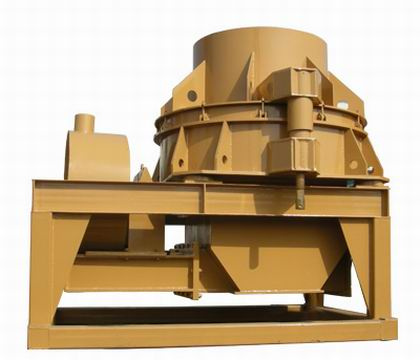

VSI series of Vertical Shaft Impact Crusher (or Sand Making Machine) is a highly efficient crushing machine which introduces 'stone to stone" crushing principle from American Bamac company. Combining domestic sand making actual condition, this crusher is designed as a highly efficient crushing machine of domestic and international standard. This crusher is widely used to crush various rocks, grinding materials, refractory, clinker, quartz, iron ore, concrete aggregate, etc. VSI series of crusher is most suitable to make construction sand.
Working principle
Materials enter impeller with high speed, impact materials around impeller under the function of high speed centrifugal force, and attack each other. The materials attack each other for many times under whirling current between impeller and machine cover. Final product is discharged until it meets the request.
Features
1. Unique structure and stable operation.
2. Lower energy consumption, larger capacity and crushing ratio.
3. Perfect and cubic product size, and les flat shape.
We have various of vsi crusher, such as PCL550, PCL750, PCL860, PCL1050, PCL1250 etc. In order to give you a responsible quotation, you can inform us the following information:
1. What's the material you are going to deal with?
2. What's the granularity of the material?
3. What's the granularity of the final products are you going to achieve?
4. What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
|
Model |
Max Feeding Size (mm) |
Rotating plate diameter (mm) |
Rotating speed
(r/min) |
Power
(kw) |
Capacity
(t/h) |
Weight (t) |
PCL550
|
40 |
550 |
2000-3000 |
37-55 |
25-55 |
3.85-4.6 |
PCL750
|
45 |
750 |
1500-2600 |
75-110 |
65-120 |
6.85-7.6 |
|
PCL860 |
50 |
860 |
1200-2000 |
110-150 |
110-180 |
10-11.6 |
|
PCL1050 |
60 |
1050 |
1000-1750 |
132-220 |
190-270 |
16-17 |
|
PCL1250 |
70 |
1250 |
950-1350 |
264-400 |
280-380 |
18-19 |
