Product Specifications
| Prod Model: |
CPCD30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
24 V |
| Shovel Blade Capacity: |
11.6 M³ |
| Max. Lift Above Ground: |
1560 Mm Max. Dr |
| Max. Drop Below Ground: |
560 Mm |
| Max. Tilt Adjustment: |
1000 Mm |
| Width* Height: |
4030*1705 Mm |
| Set Pressure: |
14.0 Mpa |
| Hydraulic PMP Type: |
Gear Pump |
| Displacement: |
355 L/Min. |
| Control Valve Type: |
Guiding Valve |
| Type: |
Crawler Excavator |
Product Description

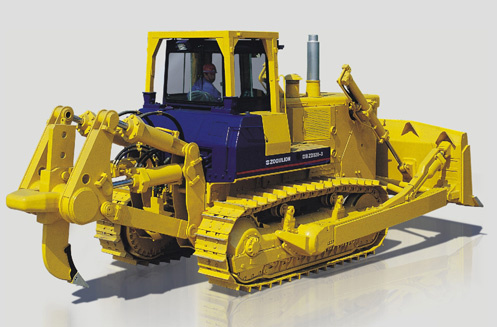

With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
VWith over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
With over three-decades of experience, Zoomlion ZD220-3 was added new design concept and advanced technology on the basis of TY220. Such new generation product meets the requirement of EURO II with low cost, comfortable and good performance.
|
Model |
ZD320-3 |
|
Operating weight (standard configuration) |
37384 kg |
|
Operating weight (with ripper) |
41000 kg |
|
Total length (standard configuation) |
6720 mm |
|
Total length (with ripper) |
8560 mm |
|
Total width |
4030 mm |
|
Total height |
3725 mm |
|
Forward speed |
0~3.6/0~6.6/0~11.5 km/h |
|
Backward speed |
0~4.4/0~8.5/0~13.5 km/h |
|
Min. radius of gyration |
3800mm |
|
Gradeability |
30° |
|
Stability (fornt, back, left a& right) |
35° |
|
Engine |
|
|
Model |
Cummins NTA~855~C360 |
|
Type |
Turbocharged, intercooled, 4~cycle, diesel |
|
Number of cylinders- bore × stroke |
6~139.7×152.4 mm |
|
Piston displacement |
14.01 L |
|
Torque reserve coefficient |
≥1.2 |
|
Rated power/speed |
239 kW (320hp)/2000rpm |
|
Max. torque |
1509 N.m/1400 rpm |
|
Fuel consuming rate |
242 g/kW.h |
|
Start mode |
Motor starting |
|
Start motor |
24V, 11 kW |
|
Alternator |
28V, 35 A |
|
Battery |
24 V (12V x2)~200 Ah |
|
Governor |
Centrigugal, all speed governor |
|
Cooling system |
Forced circulation by centrifugal pump, pressure fan |
|
Air cleaner |
Dry, Horizontal type with air cleaner |
|
Drive system |
|
|
Torque converter type |
3-element, 1-stage, 1-phase |
|
Cooling method |
Water-cooled |
|
Power shift planetary gear transmission |
Planetary gear, mutiple~disc clutch, hydraulic actuated (munual), forced lubrication by gear pump |
|
Gears |
(Forward 3/backward 3) |
|
Central drive type |
Spiral bevel gear, 1 stage reducer |
|
Lubrication mode |
Splash |
|
Steering clutch |
Wet type, multile~disc, spring loaded, hydraulically separated, hand and hydraulic control operated |
|
Steering brake |
Wet type, floating brake, hydraulic booster |
|
Final drive type |
2-stage spur gear speed reduction |
|
Undercarriage system |
|
|
Track frame suspension mode |
Oscillation type with equalizer bar |
|
No. of carrier rollers (each side) |
2 |
|
No. of track rollers (each side) |
7 |
|
No. of idler(each side) |
1 |
|
Track type |
Assemble type, single grouser |
|
Pitch |
228.6 mm |
|
Shoe width |
560 mm |
|
Grouser height |
80 mm |
|
No. of track shoes (each side) |
41 |
|
Track gauge |
2140 mm |
|
Length of track on ground |
3150 mm |
|
Contact area |
0.106 Mpa |
|
Ground preesure |
500 mm |
|
Ground clearance |
|
|
Chassis hydraulic system |
|
|
Gear shift set pressure |
2.0 Mpa |
|
Steering set pressure |
1.69 Mpa |
|
Braking set pressure |
2.16 Mpa |
|
Working device hydraulic system |
|
|
Set pressure |
14.0 Mpa |
|
Hydraulic pmp type |
Gear pump |
|
Displacement |
355 L/min. |
|
Control valve type |
Guiding valve |
|
Working device |
|
|
Semi-U blade |
Hydraulically actuated (with servo valve) |
|
Blade supporting method |
Brace type, with tilt cylinder on right side |
|
Width* height |
4030*1705 mm |
|
Max. lift above ground |
1560 mm |
|
Max. drop below ground |
560 mm |
|
Max. tilt adjustment |
1000 mm |
|
Shovel blade capacity |
11.6 m³ |
|
Cab |
Has large front and rear glass window, which allows great view. Eauipped with driver seaf of which the height and angle are adjustable. |
|
Electrical system composition |
Start motor, silicion rectification generator, magnetic switch, voltage sensitive relay switch, 2*12 V batteries |
|
Voltage |
24 V |
