Salient Features
High grade gray cast iron and resin sand casting technique used for machine structure; Enhanced bearings used at front/rear seats of main axles with 6 adjustable speeds; Enhanced stiffness of machine structure and extended service life.
Designed for all kinds of carbon steel, alloy steel and other non-ferrous iron workpieces with rolling elongation over 10% and tensile strength below 100kgf/mm2.
Main Technical Parameters
|

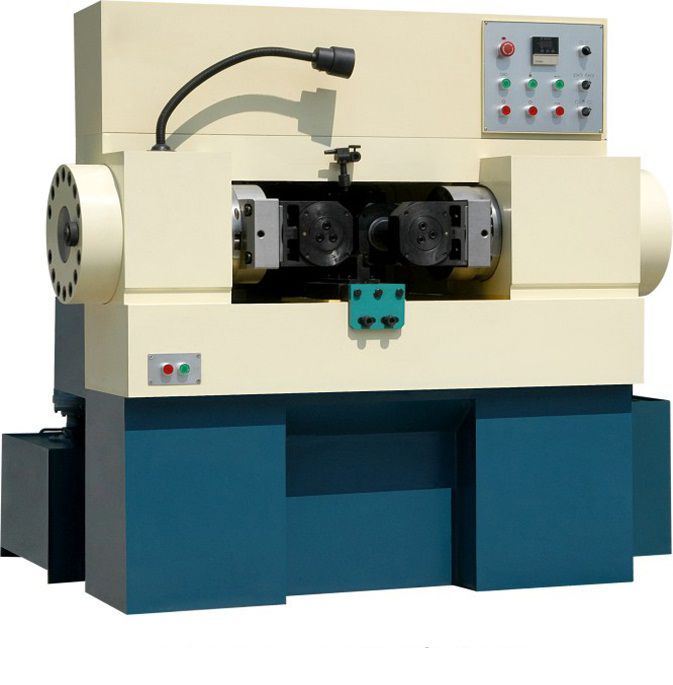

ZPA28-32 Thread Rolling Machine |
|
Max. rolling pressure |
KN |
320 |
|
Rolling thread range |
Max. diameter |
Radial feed |
mm |
90 |
|
Axial feed |
mm |
50 |
|
Max. pitch |
Radial feed |
mm |
6 |
|
Axial feed |
mm |
8 |
|
Rolling die range |
Max. outer diameter |
mm |
220 |
|
Aperture |
mm |
75 |
|
Max. width |
mm |
180 |
|
Max. center distance btw. main axis |
mm |
300 |
|
Main axis rotation |
r.p.m. |
16.21.27.37.46.62 |
|
Main axis inclination |
|
|
|
Feed travel |
mm |
0-16 |
|
Center height |
mm |
950 |
|
Gross power |
KW |
14.2 |
|
Dimensions(L*W*H) |
mm |
1600*1680*1650 |
|
Packing dimensions(L*W*H) |
mm |
2250*2000*1900 |
|
Weight |
Kg |
4080 |
