Product Specifications
Prod Model: |
TSC-63 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
Portable Pipe Beveling Machine |
Main Feature: |
Beveling Machine,Compact Structure |
Model: |
Tsc-63 |
Range Od: |
20-63mm |
Max Wallthickness: |
12mm |
Power: |
Pneumatic |
Ideal: |
55pm |
Product Description

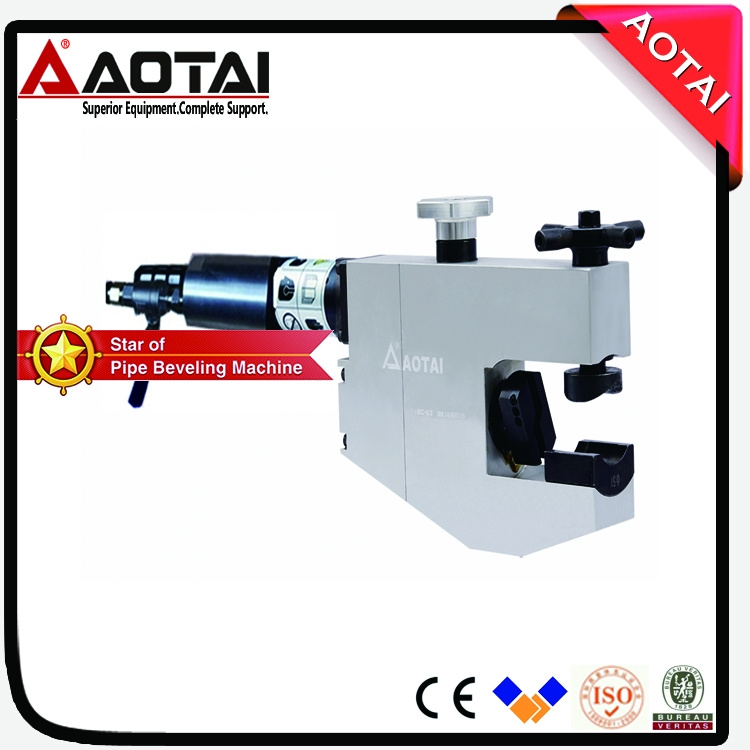

TSC-53,PNEUMATIC TOOL, OD MOUNTED TUBE BEVELLER,PIPE BEVELER,PORTABLE PIPE BEVELING MACHINE.
Features
1) Compact structure, designed to bevel the pipe in the narrow space.
2) Pipe Out-mounted , self centering, secured clamping, easy to operate.
3) Aluminum body, light weight, suitable for working aloft.
4) High quality beveling tool, can process different grades of carbon steels, alloyed steel, stainless steel and so on.
5) More choice for the driven model, electric or pneumatic, widely application.
6) Using fields: Pipe end beveling process of water pipe, heater boiler and thermal power plant

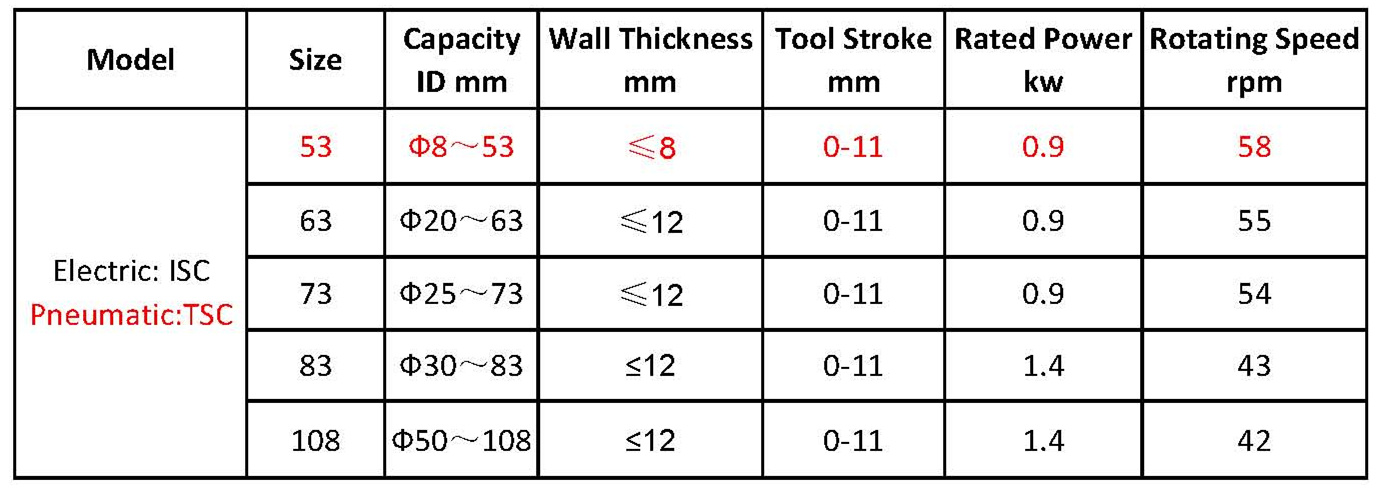

Technical data
Electric: Driven by low-energy consumption electric motor 110V or 220V optional, 50-60Hz
Pneumatic: Driven by pneumatic motor, Air working pressure: 0.6-0.8Mpa, Air Consuming flux:950-1500L/min
FAQ
1) Question: How to choose a suitable model?
RE: Before choose the model,we need to know more details about the pipe,such as the I.D,O.D,wall thickness,the material of the pipe and the enviroment of the site and the requirement of the end face. Then it will be more convient for all of us to make an immediately decision .Thanks!
2) Question: Do you have another choice about the driven?
RE: Of course,we have widely variety of choices for you, such as the electric,pneumatic,hydraulic and NC.

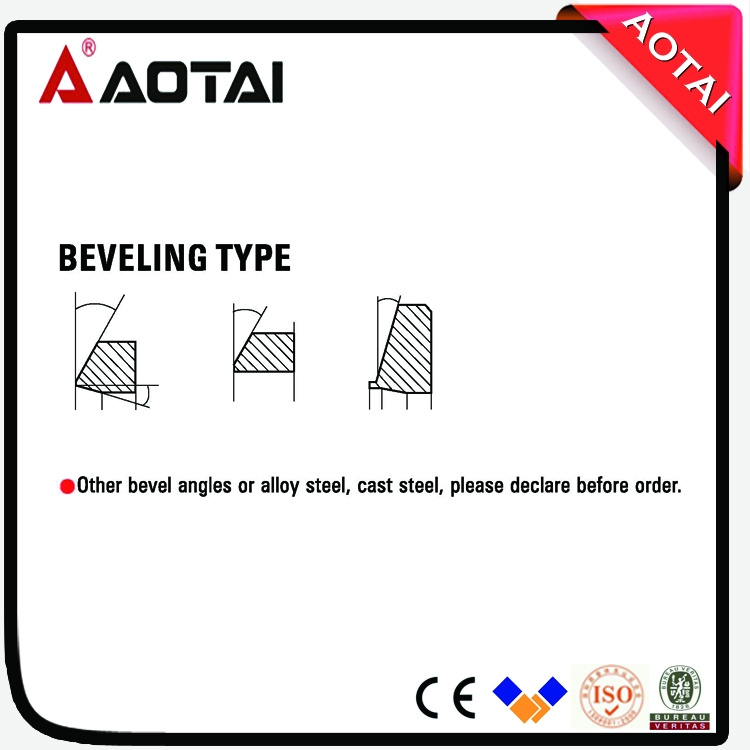

3) Question: About the type of the beveling?
RE: The normally type is the v and U,if you have any special requirement, please let us know it, i believe that our engineer can provide a solution for you.
Company Information
AOTAI,LEADING MANUFATURER FROM CHINA,SINCE 1995,FOCUS OUR ATTENTION ON MANUFACTURING AND PRODUCING ALL KINDS OF PIPE BEVELING MACHINE,PIPE
CUTTING AND BEVELING MACHINE,ORBITAL PIPE CUTTING MACHINE,FLANGE FACING
MACHINE. BEST SOLUTION FOR YOUR PIPE BEVEL AND CUT.
Zhejiang Aotai Machine Manufacturing Co., Ltd. is specialized in manufacturing of the pipe cutting and bevelling machine, and reductor. It is a modern enterprise centralized in researching, manufacturing, sales and producing, and had been conferred China High & New Technological producing enterprise. Our products used in the fields of petroleum, chemical, natural gas, power supply construction, boiler and nuclear power, such as the project of West Gas Transporting to East China. Our Pipe cutting and beveling machine are famous at home and abroad.
We are dedicated to become the largest comprehensive bevelling machine manufacturing base of China, have imported advanced equipments and technology from developed country. Innovation sustained, and have independent intellectual property rights, total 36 patent. Our company have passed ISO9001 quality system management and CE Certificate.

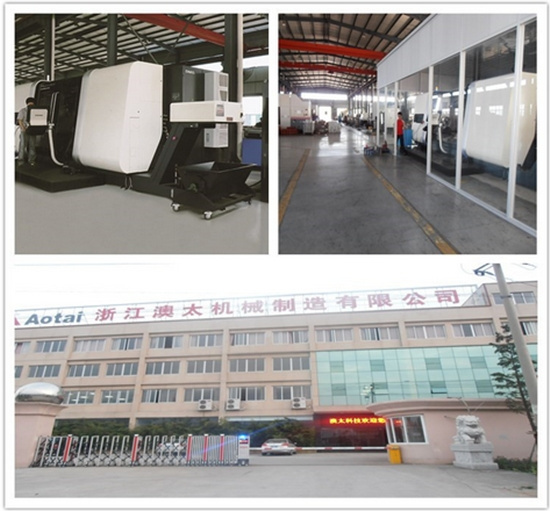

Our factory located seaside city of China, Wenzhou, build in Binhai Industry Area. It is a national development area nearby airport with convenient traffic.
Our management eidos is presenting the best quality and service to our clients, and getting reciprocity and mutual profit.
