Product Specifications
Prod Model: |
ISY-250 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |

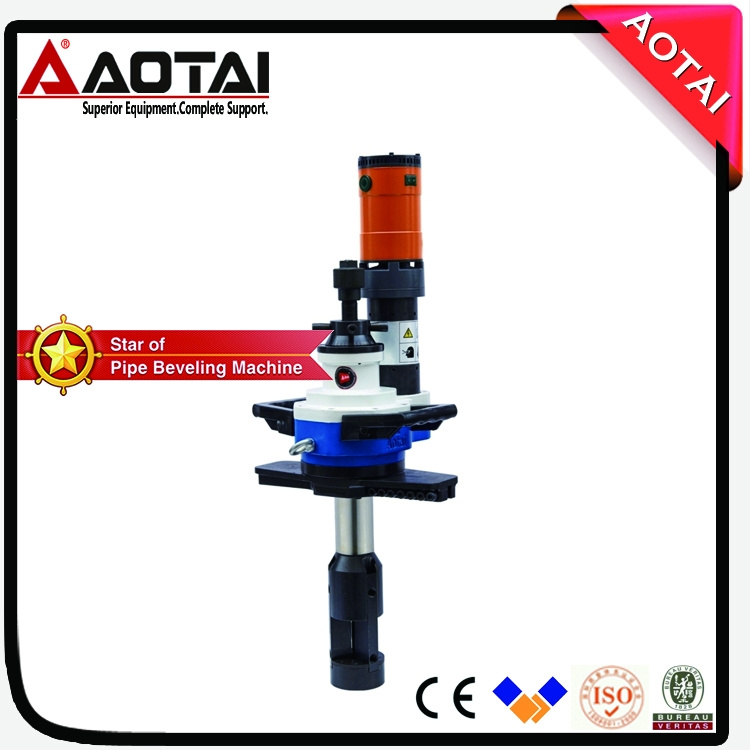

Pipe Beveling Machine |
Main Feature: |
Cold Cutting,Portbale Pipe Beveller |
Model: |
Isy-351 |
Range ID: |
150-330 |
Max Wallthickness: |
15mm |
Power: |
Electric |
Electric Motor Power: |
2000W |
Electric Motor: |
220V/50Hz |
Idle Speed: |
14rpm |
Process Usage: |
Cold Cutting |
Product Description
ISY-250,ELECTRIC TOOL, TUBE BEVELLER,PIPE BEVELER,PORTABLE PIPE BEVELING MACHINE.
Features
1) The machine adopts "Y" shape construction design, minimal radial space, light weight, easy to carry, safe use.
2) Inner mounted quickly and easily, self-located in the center of the pipe
3) Beveling and grooving with high speed, Used for the welding preparation.
4) Can Process inside beveling and deep hole
5) Can Process facing, flange, convex surface and Seal groove.
6) Cold cutting process will not influence the quality of the material of the pipe.
7) Can process the U, V, double V and J shape of pipe beveling according to the customers requirement.
8) Widely used in the fields of petroleum, chemical, natural gas, food, boiler, medicine, power supply construction and nuclear power.
9) Driven motor: Pneumatic, Electric all is available.

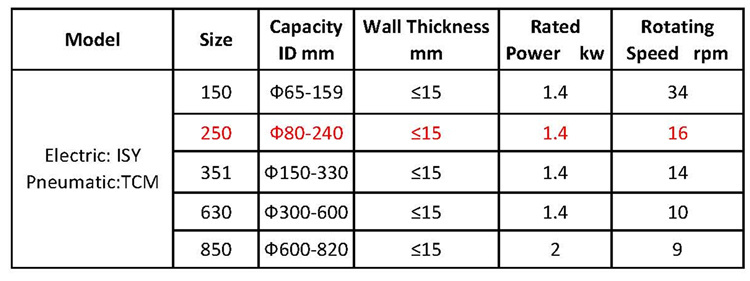

Technical Parameter
Electric: Driven by low-energy consumption electric motor 110V or 220V optional, 50-60Hz
Pneumatic: Driven by pneumatic motor, Air working pressure: 0.6-0.8Mpa, Air Consuming flux:950-1500L/min
FAQ
1) Question: How to choose a suitable model?
RE: Before choose the model,we need to know more details about the pipe,such as the I.D,O.D,wall thickness,the material of the pipe and the enviroment of the site and the requirement of the end face. Then it will be more convient for all of us to make an immediately decision .Thanks!
2) Question: Do you have another choice about the driven?
RE: Of course,we have widely variety of choices for you, such as the electric,pneumatic,hydraulic and NC.
3) Question: About the type of the beveling?
RE: The normally type is the v and U,if you have any special requirement, please let us know it, i believe that our engineer can provide a solution for you.
